Vision System Software

The choice among integrators

Sherlock® is an industry-leading no-code machine vision software development environment that provides a rich suite of proven tools and capabilities that have been deployed in thousands of installations worldwide. Sherlock is recognized throughout the machine vision industry for its flexibility to satisfy the full spectrum of vision inspection applications.

  • Develop and debug inspections quickly and reliably
  • Improve customer satisfaction by identifying defects early in the manufacturing cycle
  • Increase productivity through automated 24/7 operation
  • Reduce production costs by improving yield and redeploying skilled operators to other priority tasks

Sherlock 8

Sherlock 8 offers new and powerful development tools to expand applications beyond traditional image inspection. Sherlock supports a wide variety of area scan, line scan, and infrared cameras, and with added support for AI model inference and 3D measurements, it is possible to build more comprehensive inspection applications.

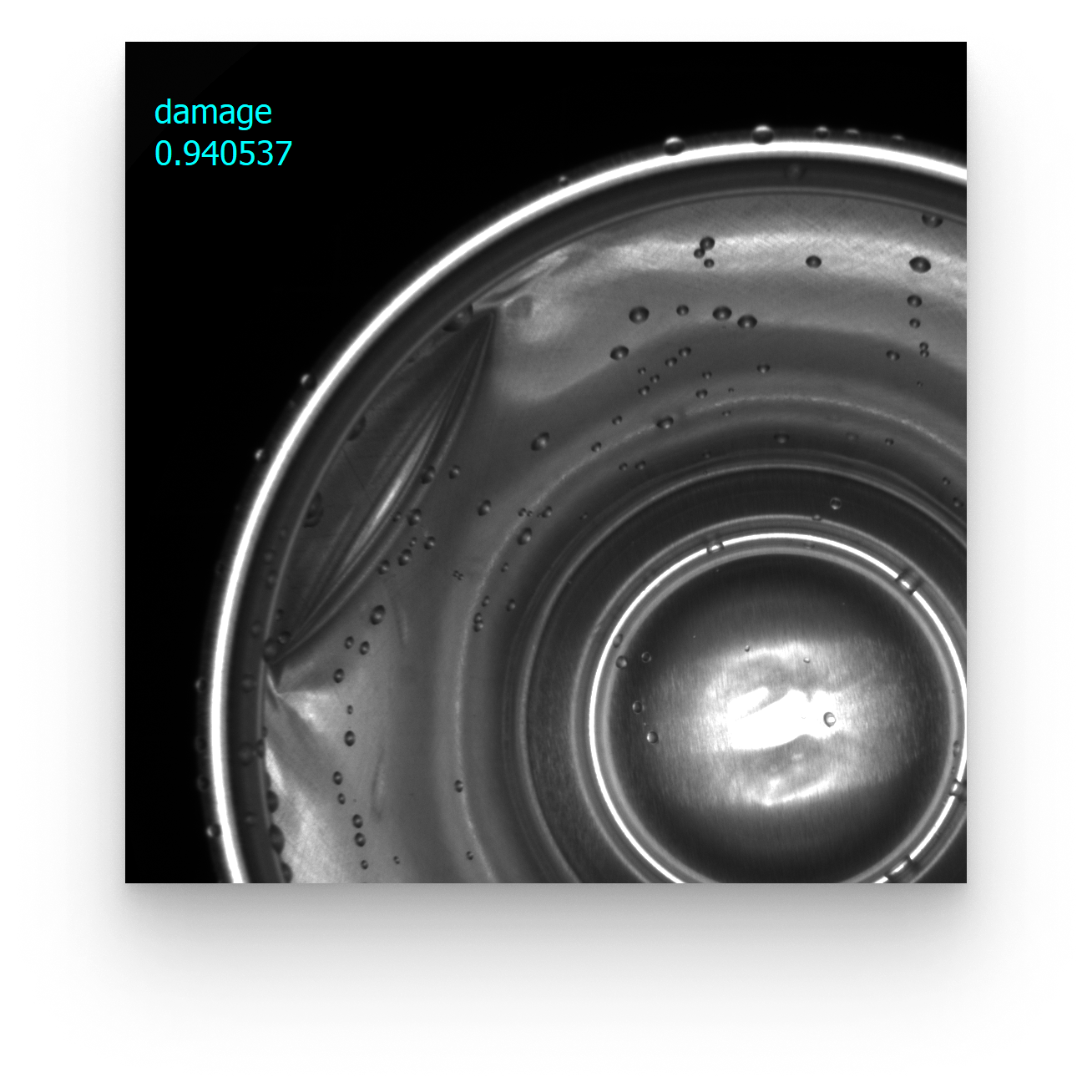

AI Inference
AI Interface
3D Tools

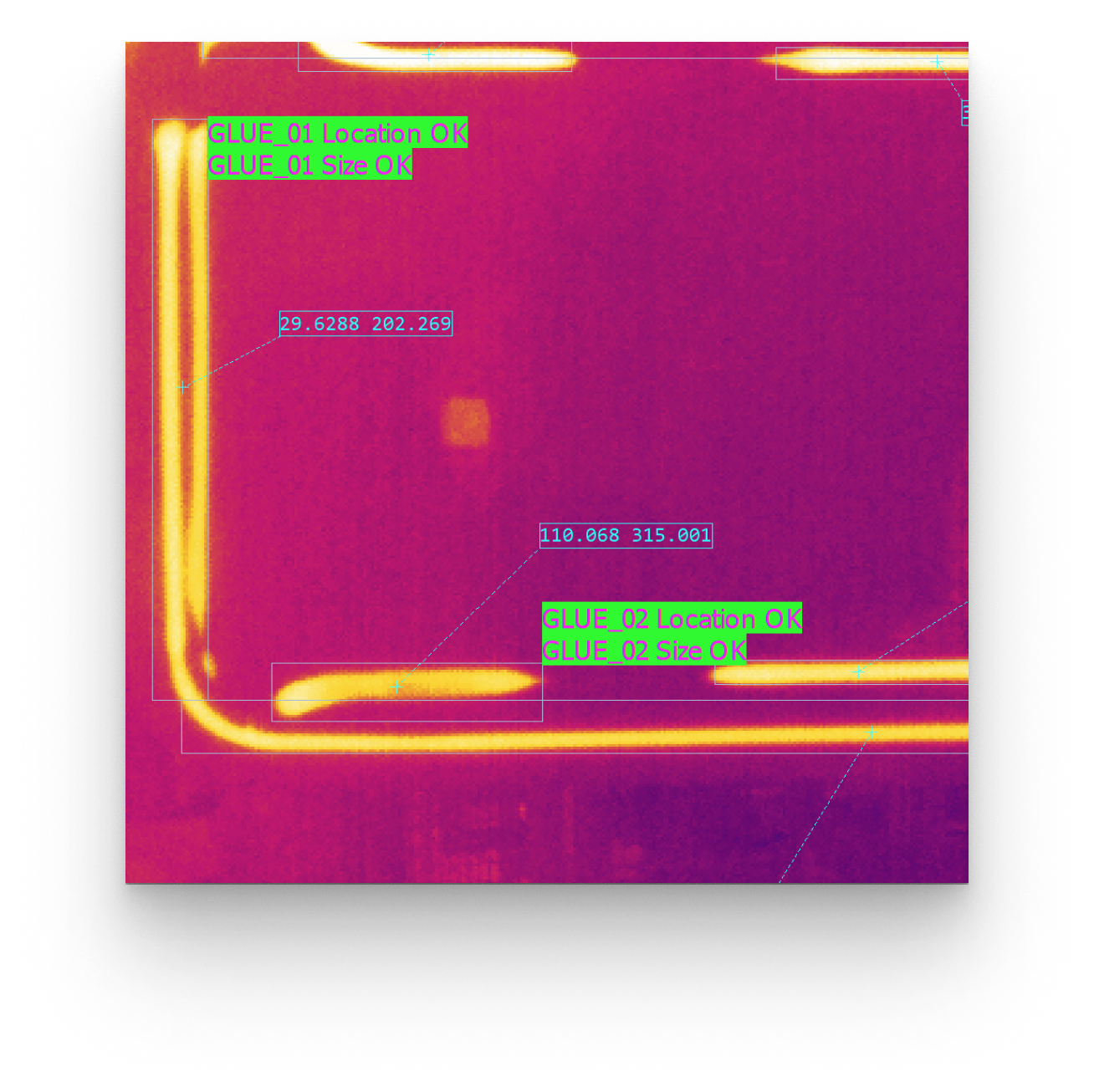

Thermal Inspections

AI Integration

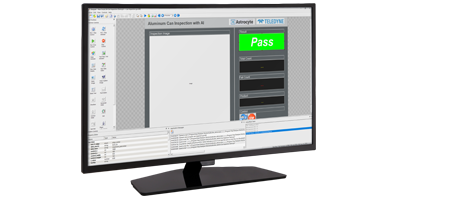

Build AI-Enabled vision systems with rapid, no-code development and deployment using Sherlock 8 and Astrocyte.

  • Train state-of-the-art AI models using Teledyne DALSA’s Astrocyte AI Trainer.
  • Deploy AI models into production environment with Sherlock AI tools.
  • Run models on CPU or GPU.
  • Combine AI model outputs with Sherlock’s 1D and 2D vision tools for more advanced image processing.

3D Tools

Sherlock is designed to work with Teledyne DALSA’s Z-Trak 3D laser profilers. Sherlock 3D Tools are a powerful and flexible package with strong graphical tools allowing for the easy integration of 3D part measurements into industrial applications.

  • Profile Mode. Acquire a single cross-section profile of a part and create 2D measurements accurate to microns.
  • Range Map Mode. Scan part and output Z-height Range Extract 3D features that would be invisible to cameras. Convert 3D data to image and use 1D and 2D toolset to check for defects.

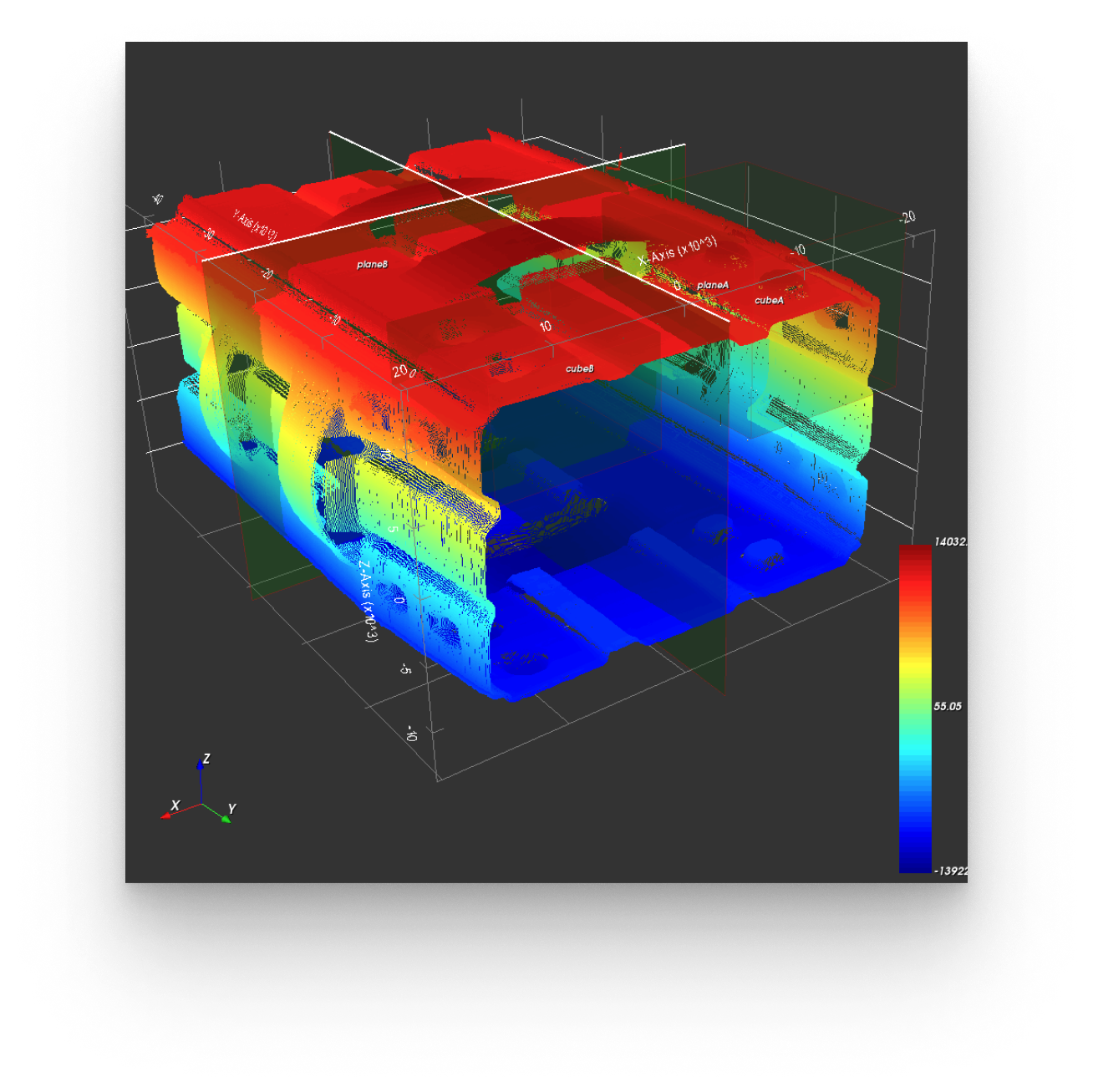

  • Scan Mode. Create a 360-degree 3D point cloud of part geometry. Use Shelock’s 3D Unified Measurement Space Tools to check features. Create planar cross-section slices from 3D data and use 2D tools to extract measurements accurate to microns.

Feature List

Sherlock contains a wide range of computer vision algorithms designed and packaged for ease-of-use with graphical controls for development and fine-tuning.

Extensive set of image conditioning functions that can be applied to ROIs prior to analysis.

Positioning Tools
Advance pattern-finding tools for object location and alignment.

Measurement Tools
Precise tools for locating edges and computing the dimensions on a variety of parts and shapes.

Analysis Tools
Tools for finding and counting edges, extracting and analyzing features, detecting contrast variation, and performing statistical analysis.

Calibration Tools
Correct for linear, nonlinear, and perspective image distortion. Convert camera pixel to real-world coordinates.

Color Tools
Teach colors or measure RGB values for precise manufacturing and quality checks.

Barcode Tools
Read and verify 1D and 2D codes. Check for code grading and quality. Supports most common code formats.

OCR Tools
Read and identify printed, molded, or stamped text. Teach character sets or use pre-trained neural-net based OCR tool.

Script Tools
JavaScript-based scripting tool, complete with drag-and-drop instruction editing, allowing the development of custom formulas or inline and background operations.

Controls for protecting against unauthorized access, editing, and copying.

Computational Imaging
Sherlock supports the Shape from Shading feature which combines multi-directional lighting with computational imaging algorithms to accentuate surface features which would normally be difficult to image using regular lighting.

Powerful Development Interface

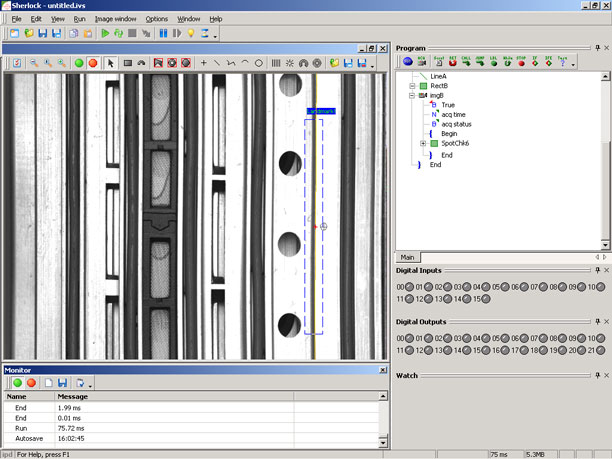

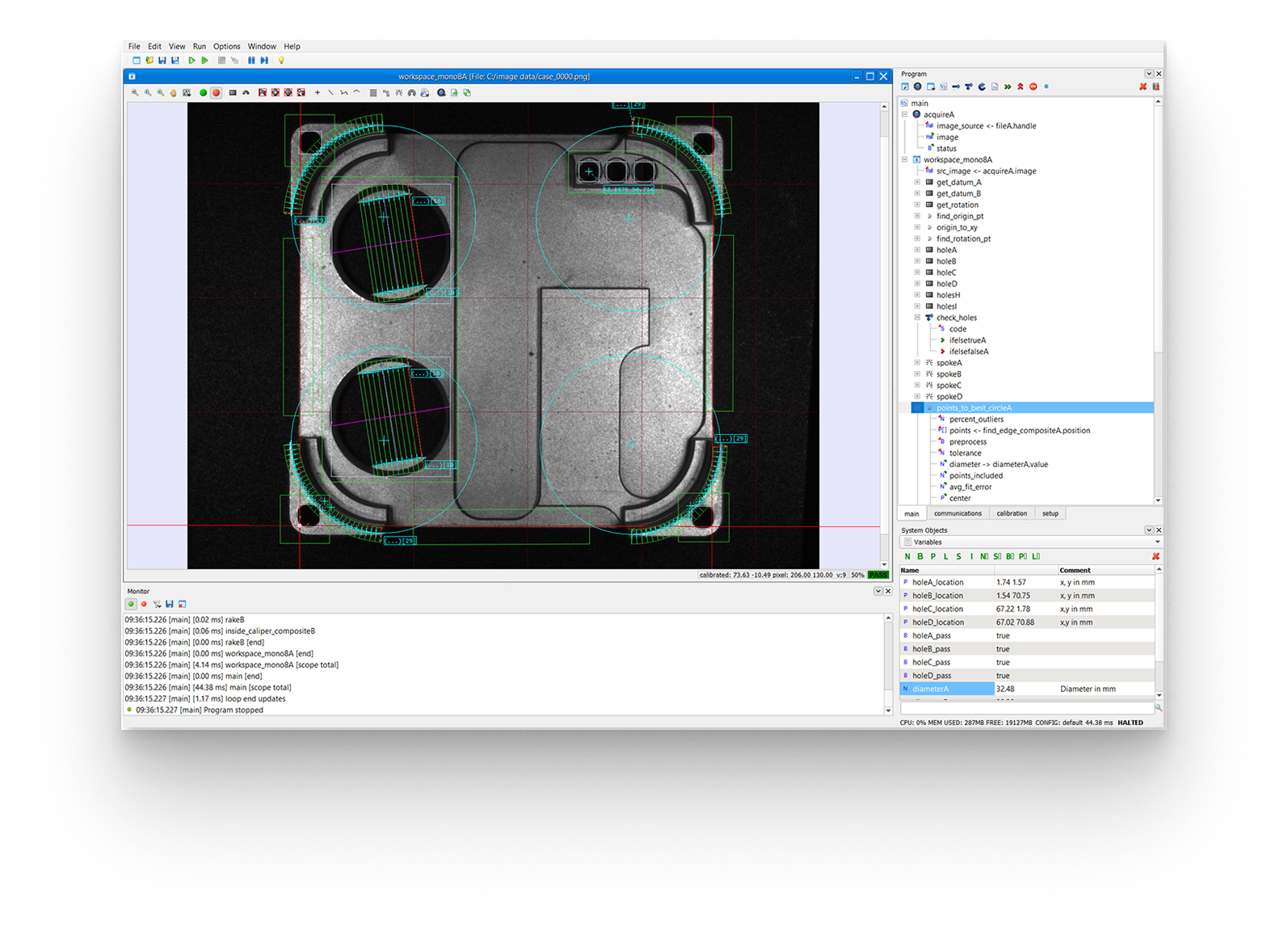

  • Point-and-click program construction enables rapid programming
  • Moveable and dockable windows offer optimal developer layout
  • Versatile Region of Interest (ROI) options for image processing flexibility
  • Monitor and reporting windows provide immediate status feedback
  • Instruction tool bars allow quick access to program functions
  • Built-in editing and debug tools

Custom GUI Support

Create custom operator interfaces using Sherlock’s no-code, drag-and-drop GUIBuilder™ tool or use .NET API to create powerful user interfaces. .NET API supports C++, C#, and Visual Basic® in Microsoft® Visual Studio®.

Camera Flexibility

  • Full support for Teledyne DALSA cameras and frame grabbers with Sapera LT functionality built into Sherlock
  • Compatible with both Area Scan and Line Scan cameras with mono or color format sensors.

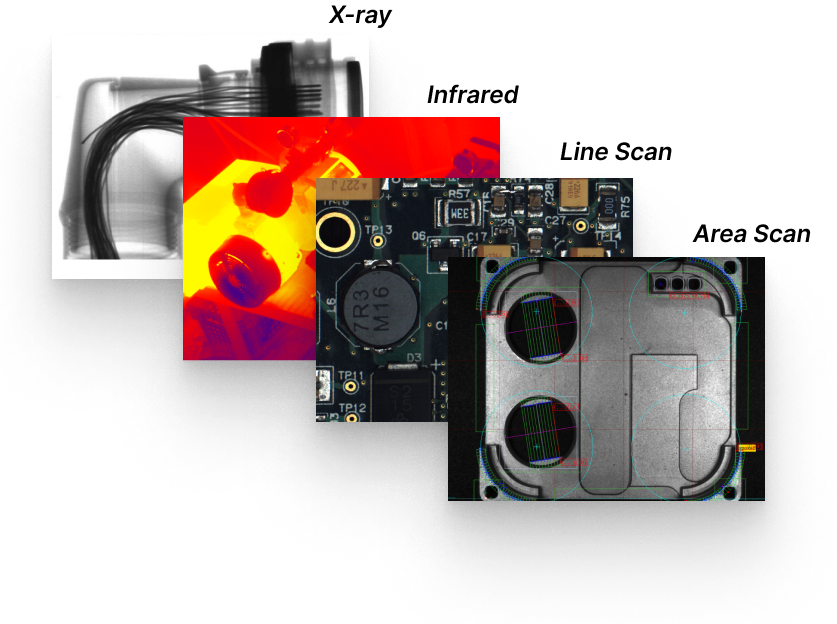

  • Supports Infrared and X-ray imaging.
  • Allows mixing of sensor type, resolution and interface in the same application
  • Third-party camera support using GeniCam™

Robust Communication

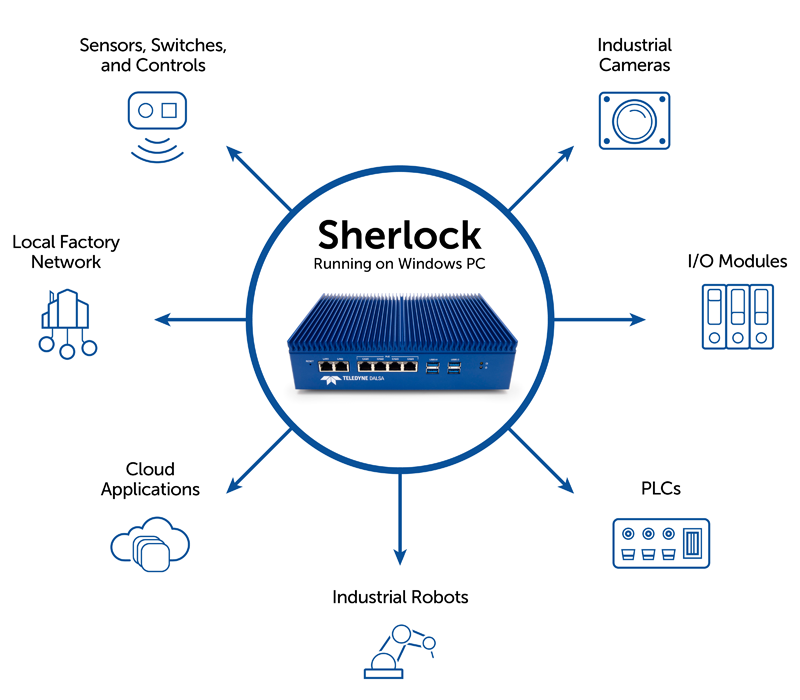

Designed for automated 24/7 on-premises operation, Sherlock provides easy-to-use tools to setup, read, and write data to factory automation devices such as PLCs and industrial robots. Sherlock supports communication protocols such as Modbus, Ethernet/IP, Profinet, OPC UA, MQTT, Serial, and supports onboard discrete IO controls.

Shape from Shading Feature

Combines multi-directional lighting with advanced software algorithms to eliminate surface background effects, such as noise or color, and produce an output image focused on the features most relevant to the inspection. This output image can then be inspected using standard Sherlock vision tools. Ideal for features that have 3D texture, such as embossed characters, and impressed or indented features such as stamped or engraved markings.

Extract raised characters from tire sidewall

Original Extracted


Extract date and lot characters pressed in a barcode

Original Extracted


Article: Vision system ensures speed and accuracy for automotive industry

Hand-counting piston rings as small as 0.29 - 0.79 mm in width and packaging them in various batch counts, was not only adding to labor costs, but also proving unreliable in the highly competitive automotive sector. A far more reliable answer came in the form of a custom machine vision solution using Teledyne DALSA's Sherlock software.

Read the full article >>
