Shad-o-Box HS

Dynamic X-Ray Detectors

High-Resolution Real-Time X-Ray Imaging

The Shad-o-Box HS family of x-ray detectors are high-performance, high-resolution x-ray imaging devices designed for high speed digital radiography applications. Each model combines our x-ray sensor modules with appropriate readout electronics and a 14-bit digital interface for easy connection to a PC. The high-speed digital connection allows real-time imaging at frame rates up to 66 fps, while the state-of-the-art CMOS technology offers superb contrast, dynamic range, and resolution.

Durable and Powerful

The Shad-o-Box HS detectors contain internal shielding to protect the sensor and camera electronics from x-ray radiation. The cameras are optimized for the 40-160 kV energy range, but may be used with x-ray energies as high as 225 kV.

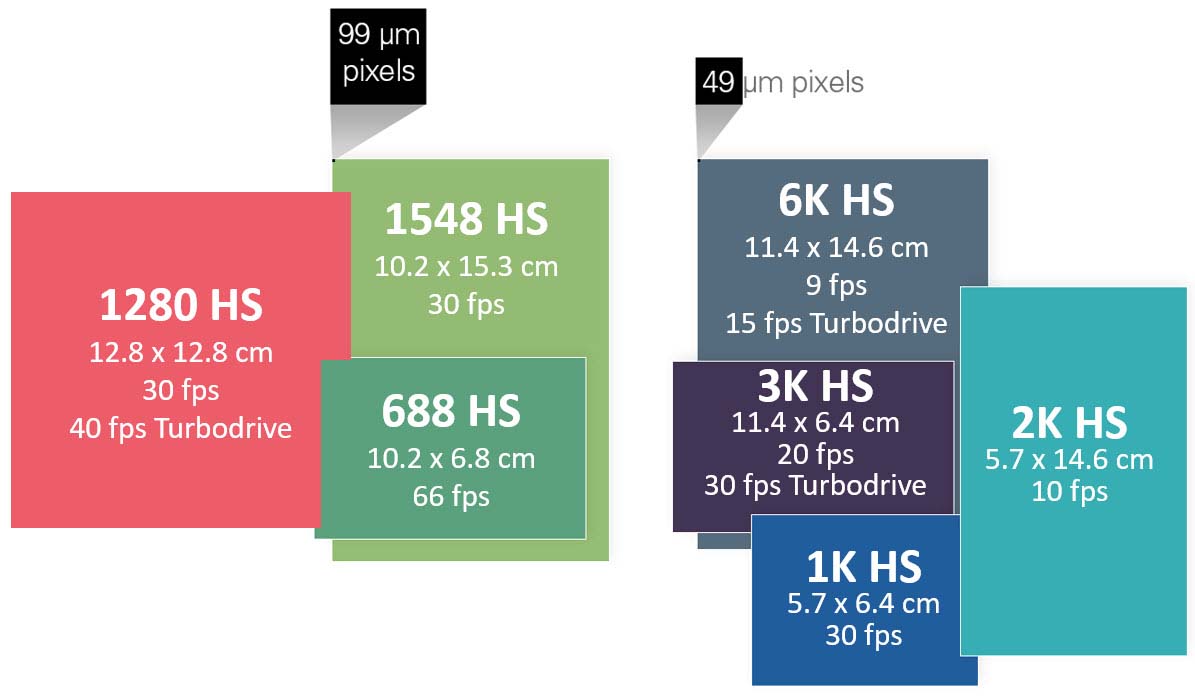

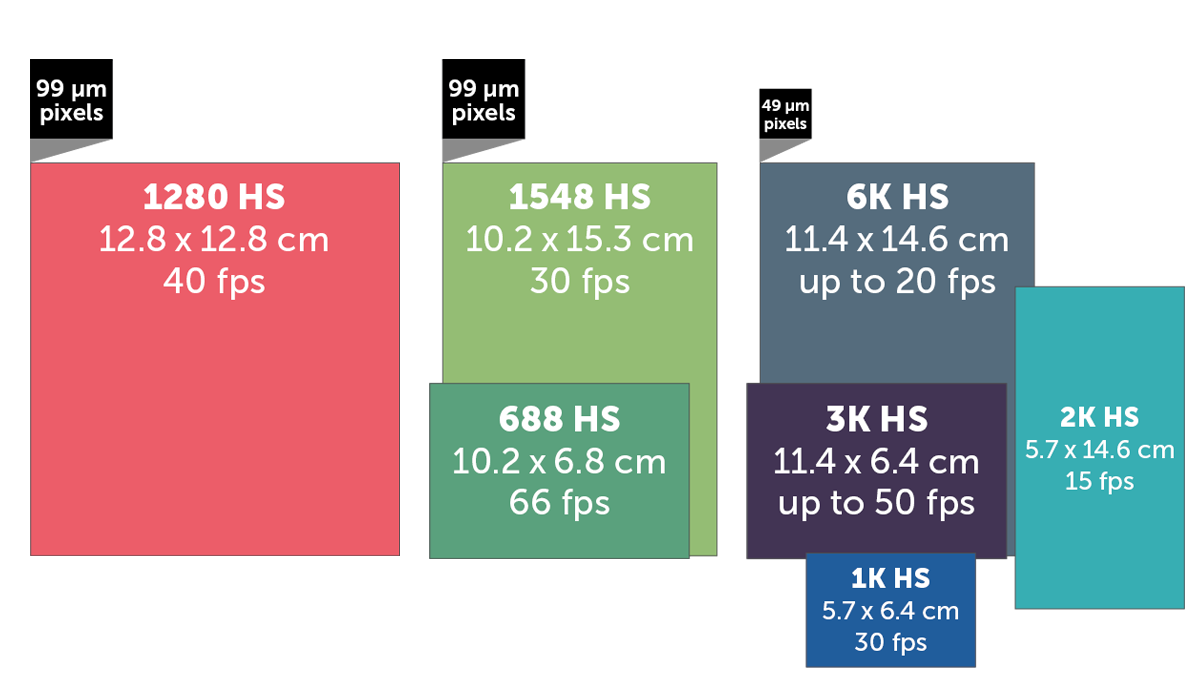

7 standard models in a range of pixel and detector sizes

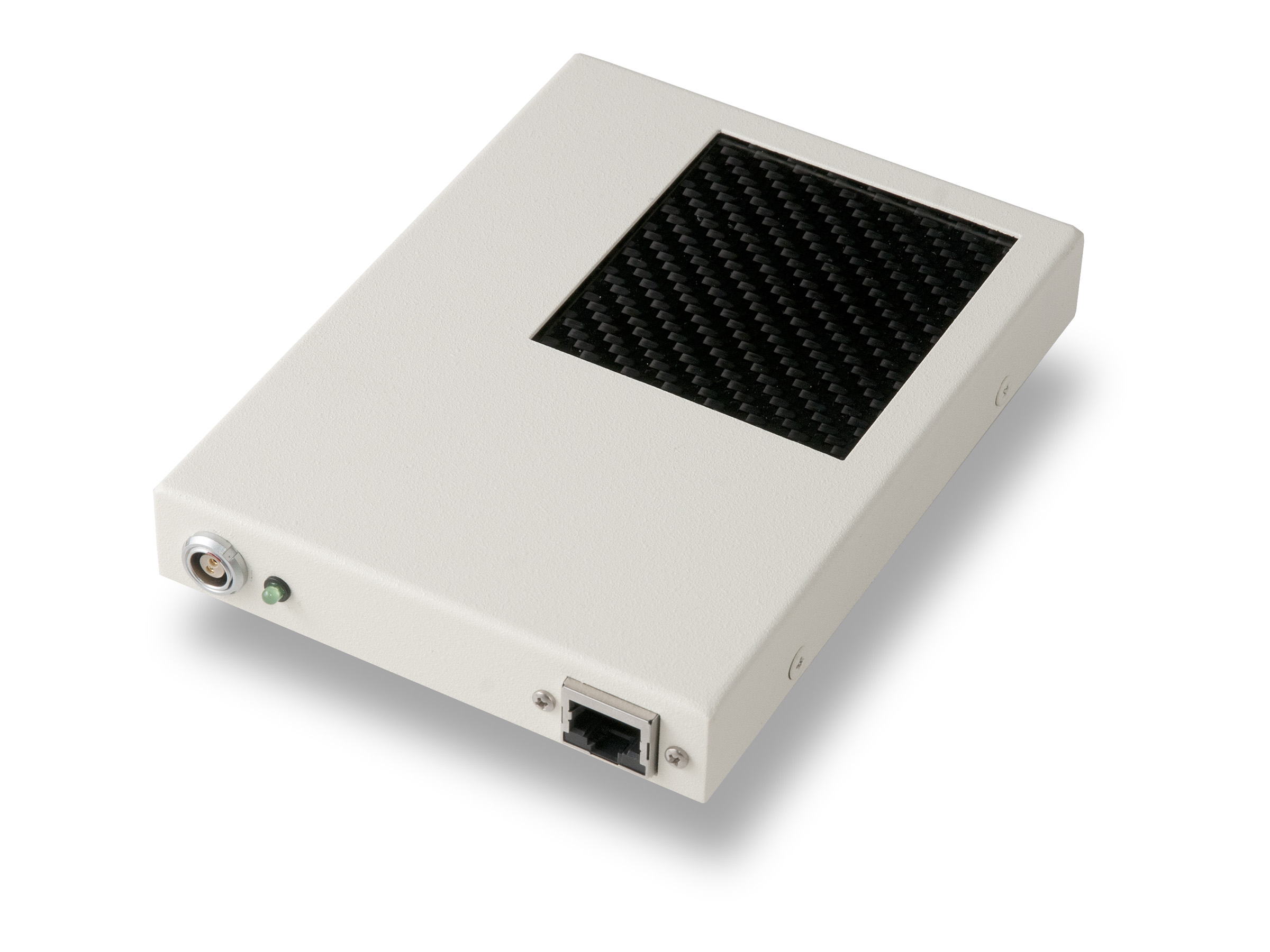

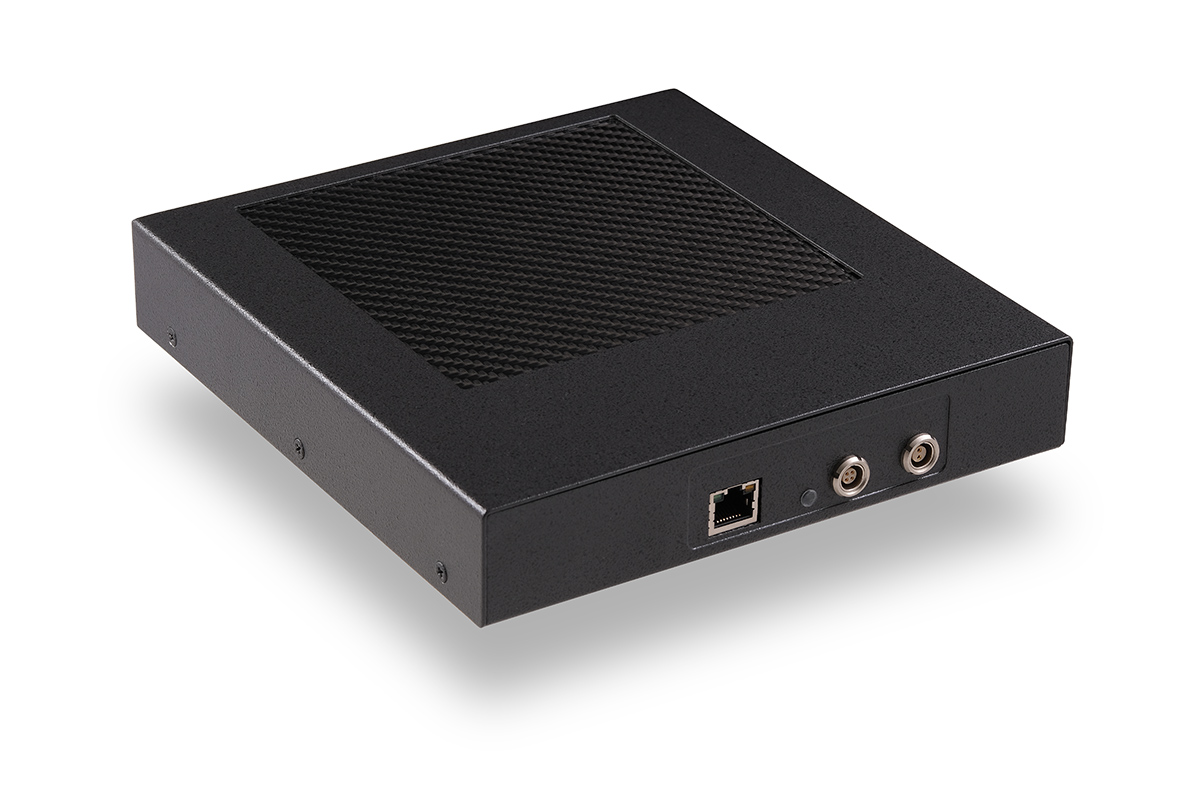

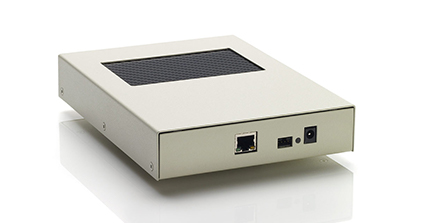

Photos

Family Specifications

Supported Interfaces

GigE Vision, Gigabit Ethernet

Models

Model	Active Area	Resolution	Interface	Pixel Size	Max Frame Rate
Shad-o-Box 0688 HS Part number: SB1444	102 x 68 mm	1032 x 688	GigE Vision	99 µm	Standard: 66 fps TurboDrive: n/a
Shad-o-Box 1548 HS Part number: SB1446	153 x 102 mm	1548 x 1032	GigE Vision	99 µm	Standard: 30 fps TurboDrive: n/a
Shad-o-Box 1280 HS Part number: SB1644	128 x 128 mm	1280 x 1280	GigE Vision	99 µm	Standard: 30 fps TurboDrive: 40 fps
Shad-o-Box 3K HS Part number: SB1490	114 x 64 mm	2304 x 1300	GigE Vision	49.5 µm	Standard: 20 fps TurboDrive: 30 fps
Shad-o-Box 6K HS Part number: SB1492	145 x 114 mm	2940 x 2304	GigE Vision	49.5 µm	Standard: 9 fps TurboDrive: 15 fps
Shad-o-Box 1K HS Part number: SB1573	57 x 64 mm	1152 x 1300	GigE Vision	49.5 µm	Standard: 20 fps TurboDrive: 30 fps
Shad-o-Box 2k HS Part number: SB1586	57 x 146 mm	1152 x 2940	GigE Vision	49.5 µm	Standard: 10 fps TurboDrive: n/a
