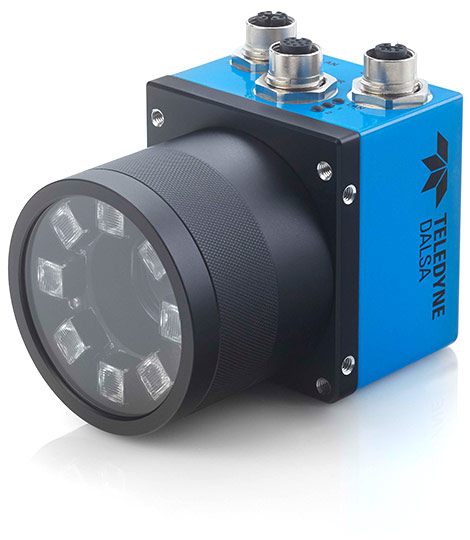

Introducing BOA2: a complete vision system in one smart camera. Featuring our highest smart camera resolution yet, BOA2 combines lighting, image capture, processing, and easy-to-use embedded vision software into a convenient single device with a variety of I/O and mounting options.
BOA2 uses advanced CMOS global shutter sensors with resolutions up to 5 megapixels to capture more detail in a larger inspection area. Superior image resolution allows BOA2 to capture the smallest defects that lower resolution sensors miss.

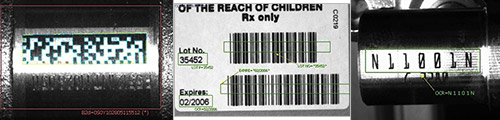

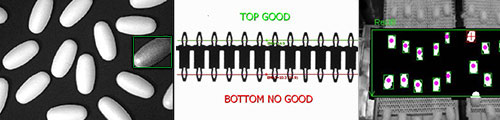

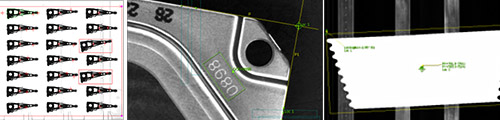

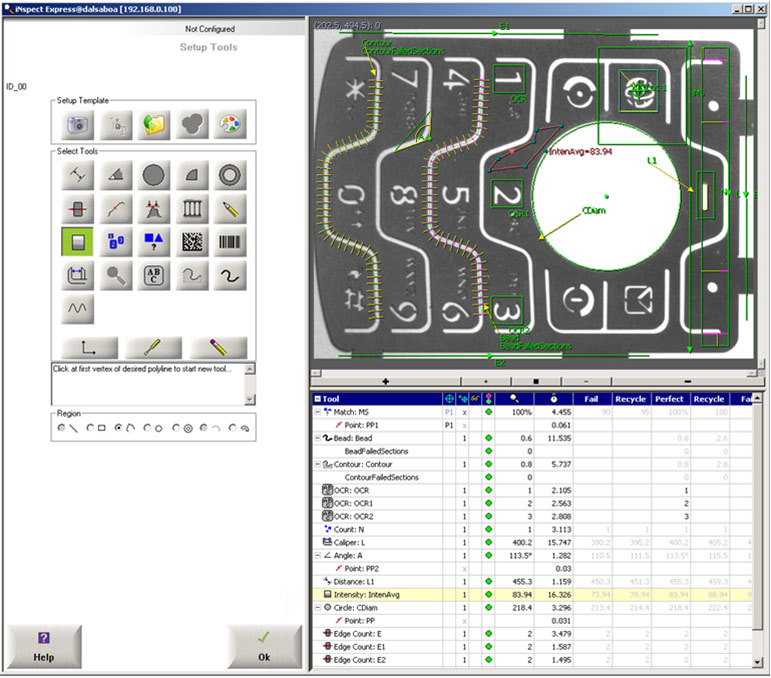

Each BOA2 smart camera is powered by a dual-core 1.5 GHz processor that drives the embedded iNspect Express vision software. This easy-to-use software features a robust tool set to enable common inspection tasks, including:

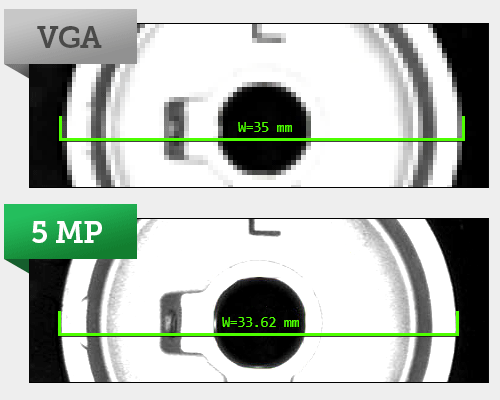

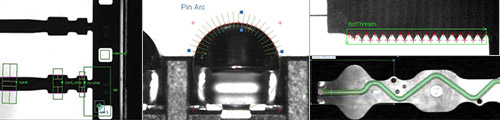

With the superior resolution of the BOA2, more pixels means higher measurement accuracy.

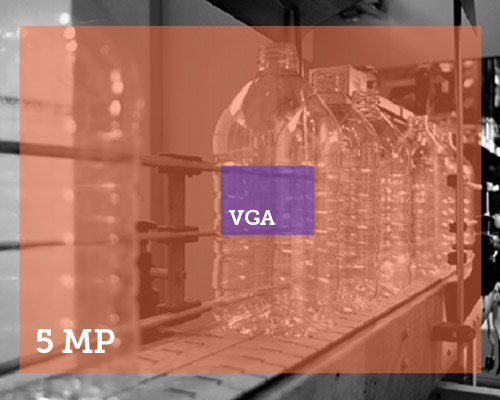

Available resolutions up to 5 megapixels allow for a larger area to be inspected at once.

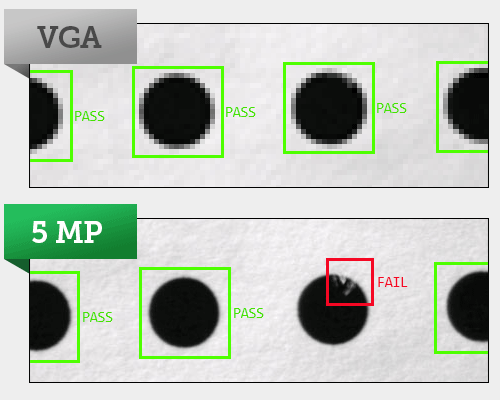

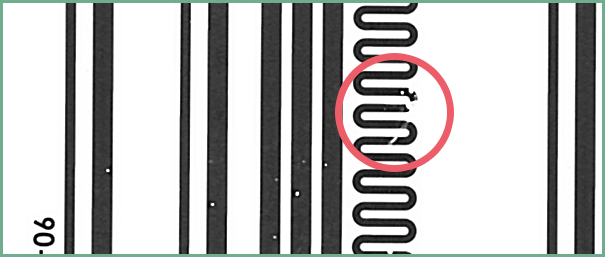

BOA2's high resolution sensor enables detection of smaller defects that could be missed by low resolution cameras.

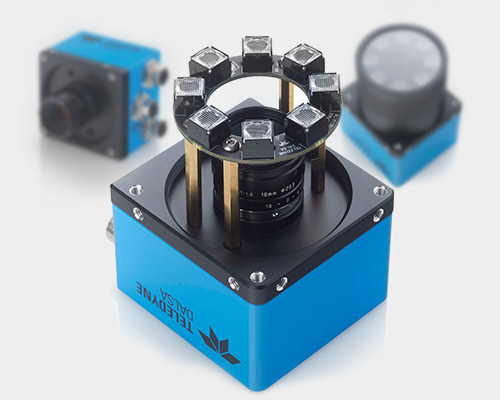

BOA2 (XA2 model only) offers an optional integrated high-intensity ring light for compact, uniform target illumination.
| Camera Type | Area Scan |
| Sensor Technology | CMOS |
| Supported Interfaces | RS232, Fiber Optic |
| Spectrum Capability | Visible (400-700 nm) |
| Model | Resolution | Spectrum | Interface | Pixel Size | Standard |
|---|---|---|---|---|---|
| BOA2 XA2 Part number: BOA2XA2 |
1664 x 1216 | Mono | RS232, Fiber Optic | 5 µm | 80 fps |
| BOA2 XA3 Part number: BOA2XA3 |
1920 x 1440 | Mono | RS232, Fiber Optic | 5 µm | 60 fps |
| BOA2 XA5 Part number: BOA2XA5 |
2560 x 2048 | Mono | RS232, Fiber Optic | 5 µm | 40 fps |
| Document | Type |
|---|---|
| BOA2 Datasheet |
| Document | Type |
|---|---|
| BOA2 XA Installation Manual |
| Document | Type |
|---|---|
| BOA2 XA 3D MODEL (STEP) | STP |
| BOA2 XA Mechanical Drawings |
