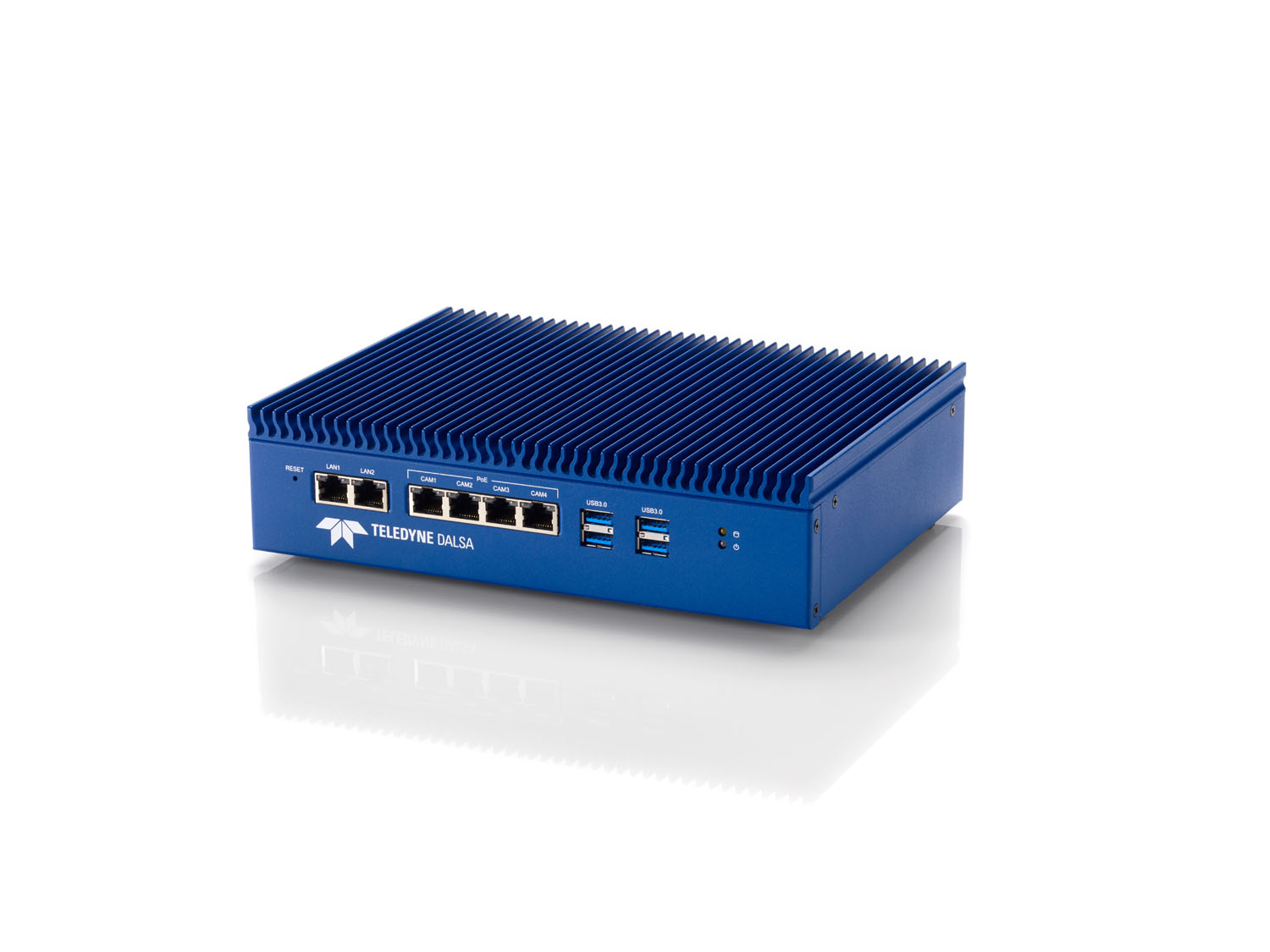

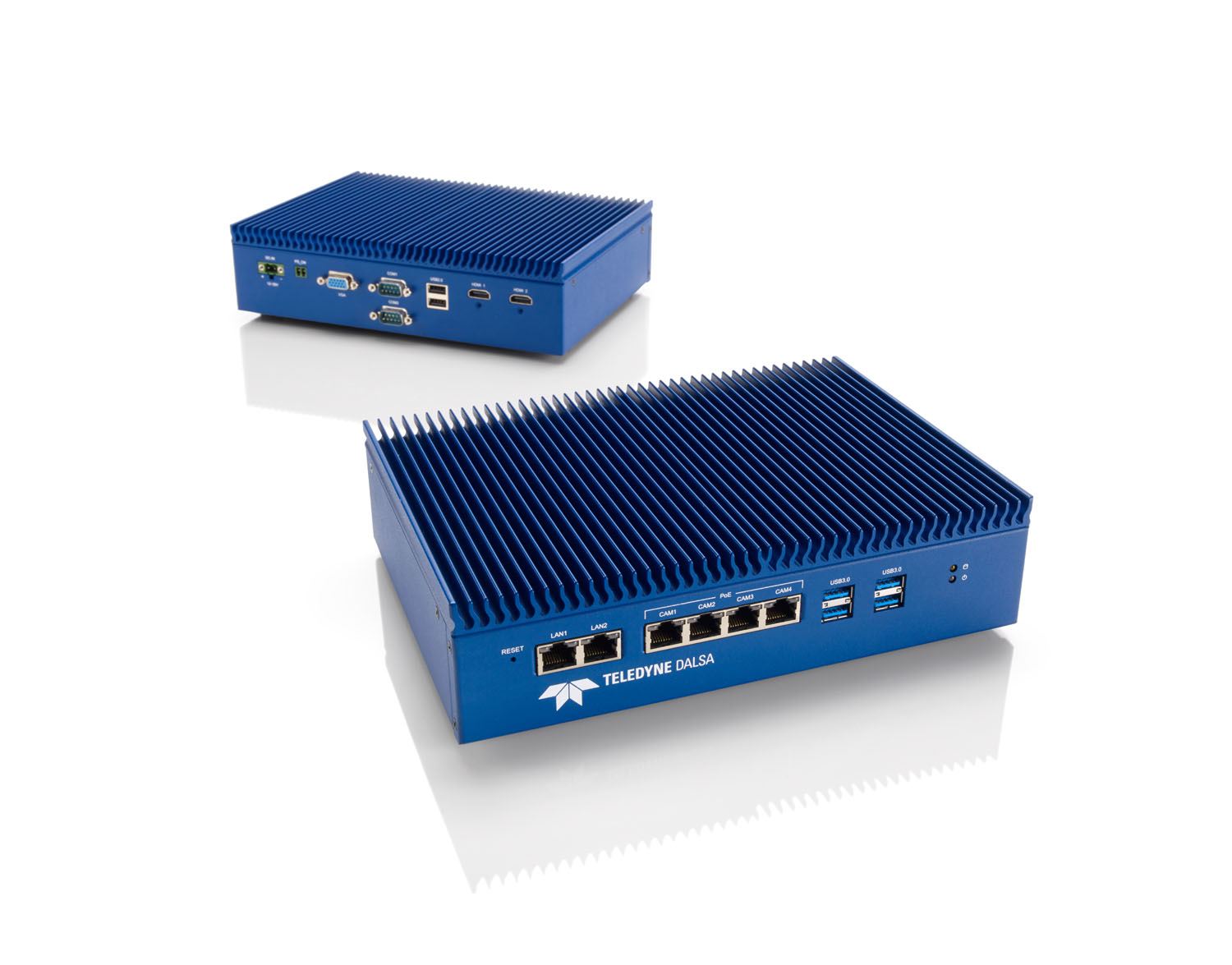

GEVA 4000 is the newest addition to Teledyne DALSA's high-performance industrial controllers, offering excellent cost savings for multi-camera vision applications such as final inspection of large assemblies. With over eight times the processing performance of the entry level GEVA 300 and up to four times the performance of the GEVA 1000, the ruggedized GEVA 4000 provides a robust and highly capable industrial vision system for applications on the factory floor.

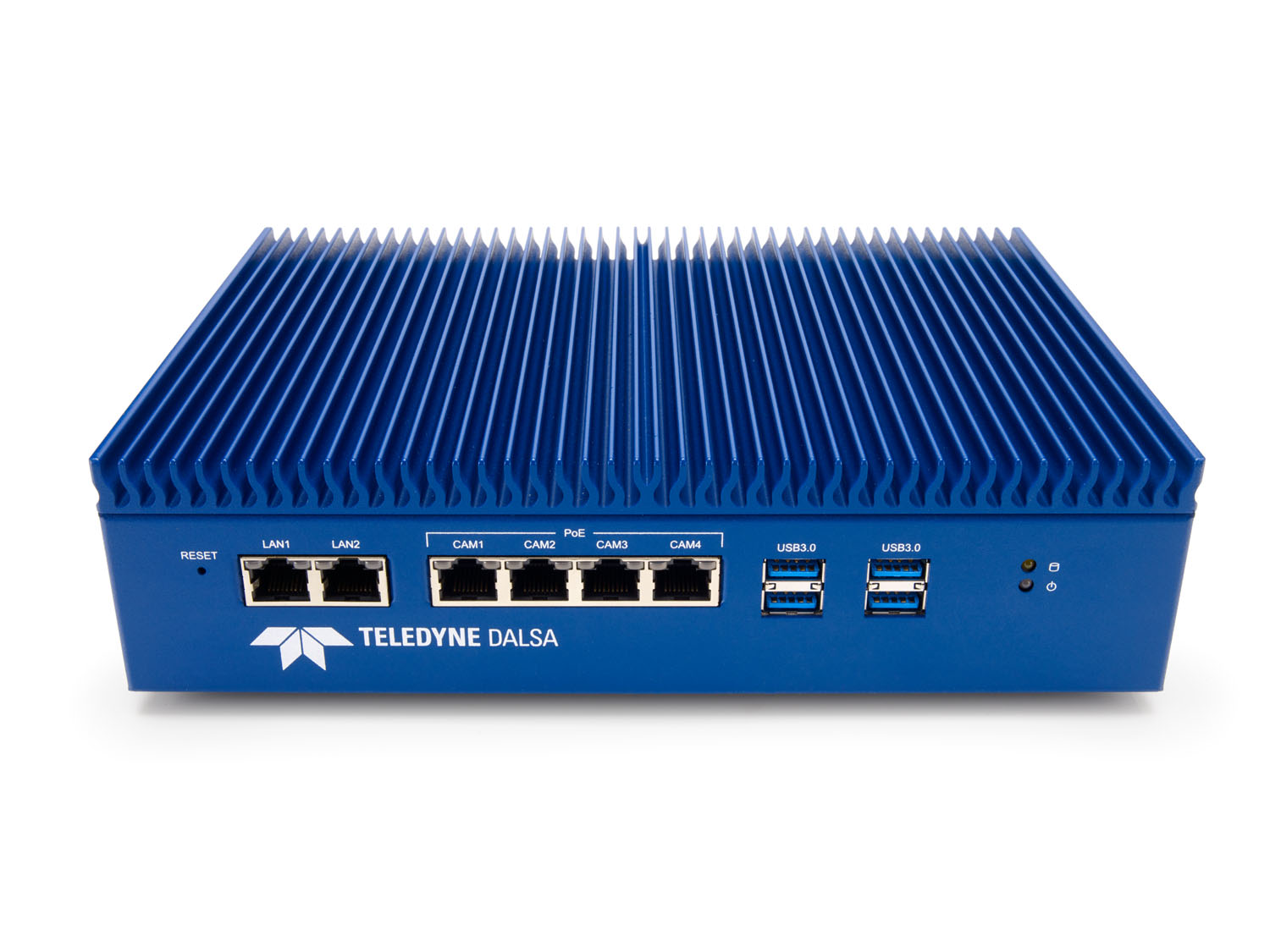

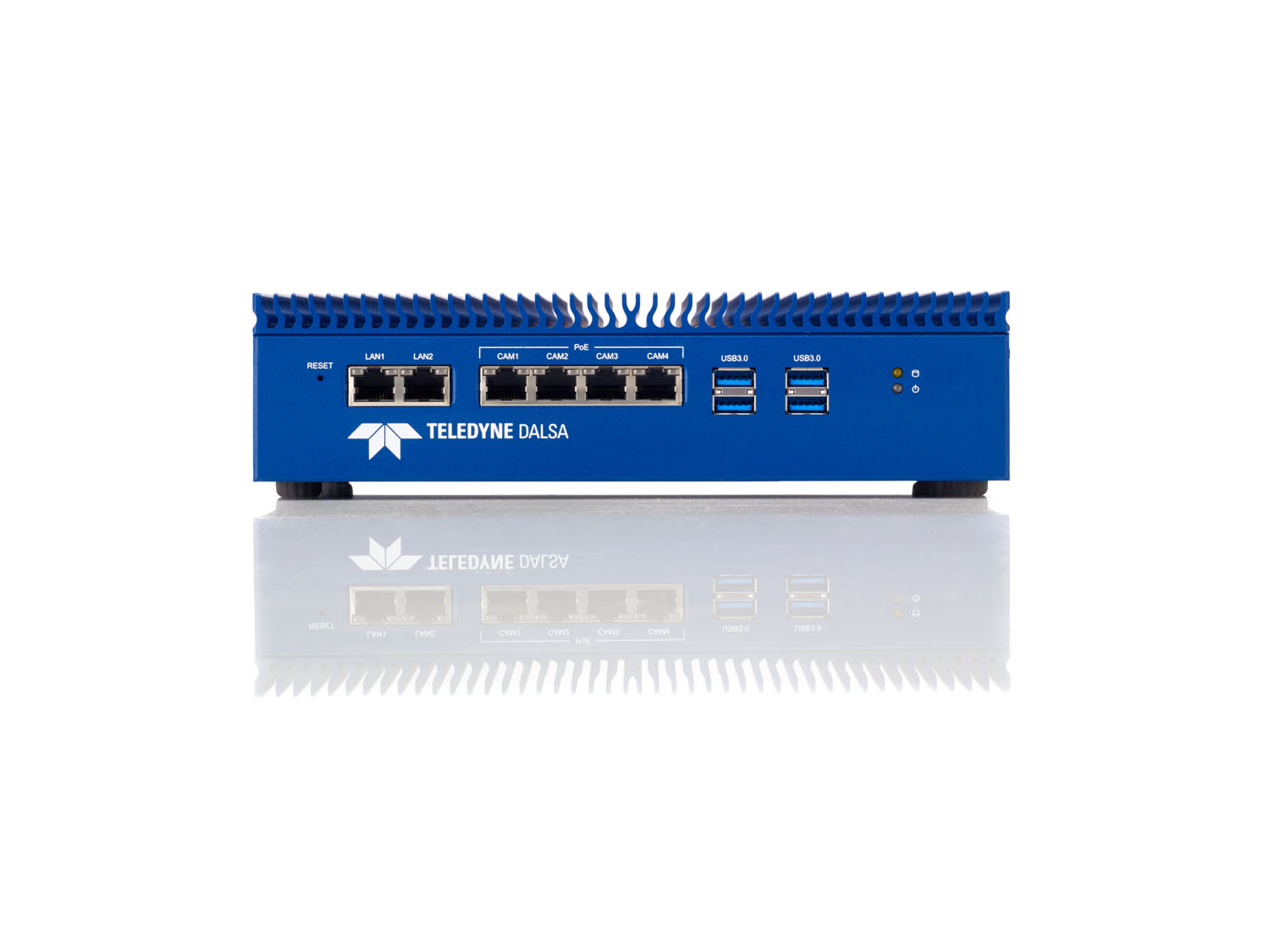

GEVA 4000 is equipped with a low power, Gen6 Core i7 processor, 16 GB of RAM and high-speed system resources to effectively manage multi-camera applications. Each of the six (6) Gigabit compliant Ethernet ports internally connect through independent data lanes to alleviate bandwidth bottlenecks often associated with multi-camera acquisition. Each network port can be configured for either camera or network use and each can be expanded using external switches to accommodate larger camera or network configurations. GEVA 4000 network ports are compatible with a resolution range of mono or color area scan GigE cameras, including the latest high resolution Genie Nanos.
GEVA-4000 supports 6 high-bandwidth Gigabit Ethernet camera interfaces that significantly drive down system cost. Its fanless design reduces downtime and maintenance costs associated with deploying standard PC solutions in harsh industrial environments.

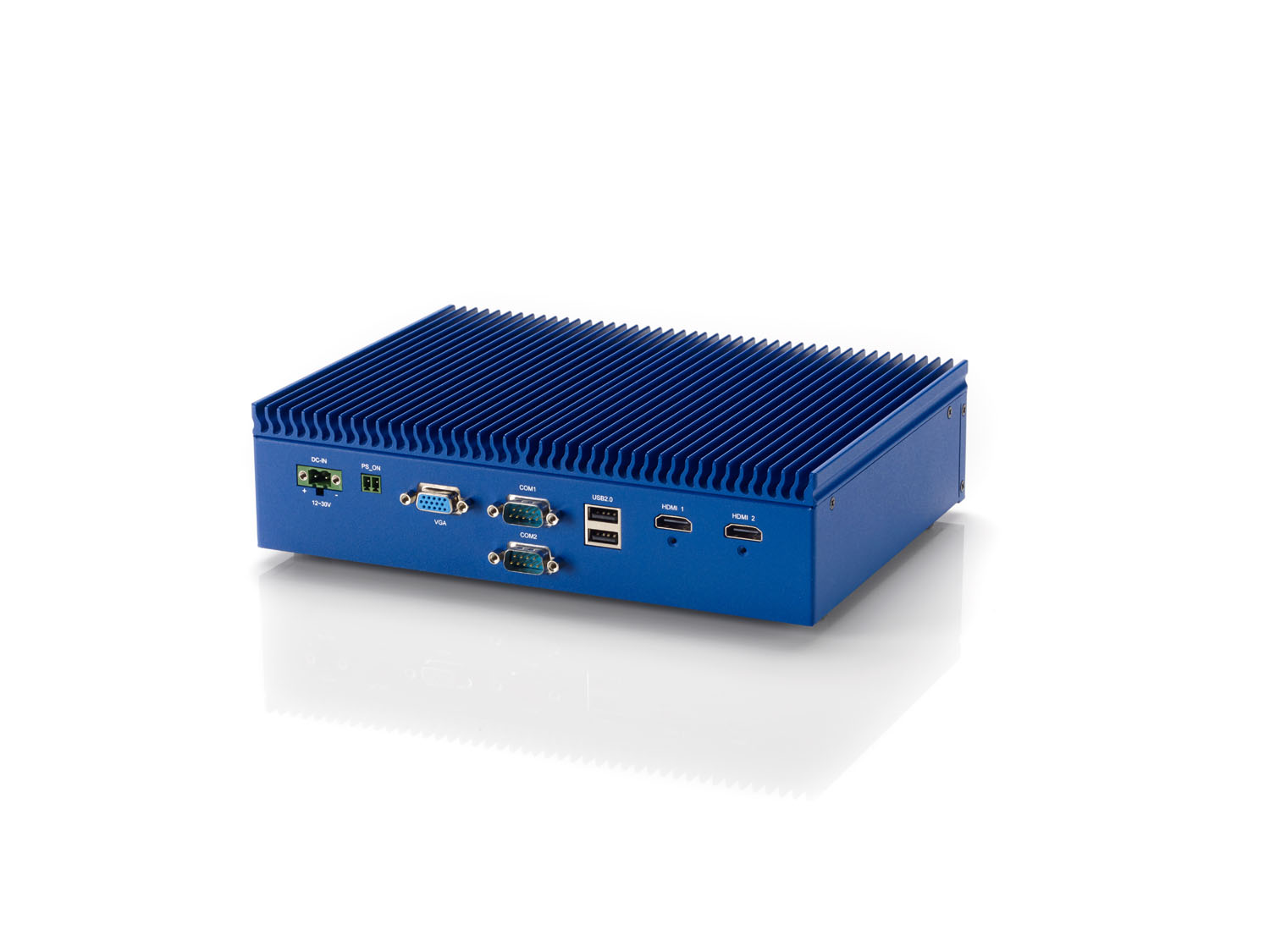

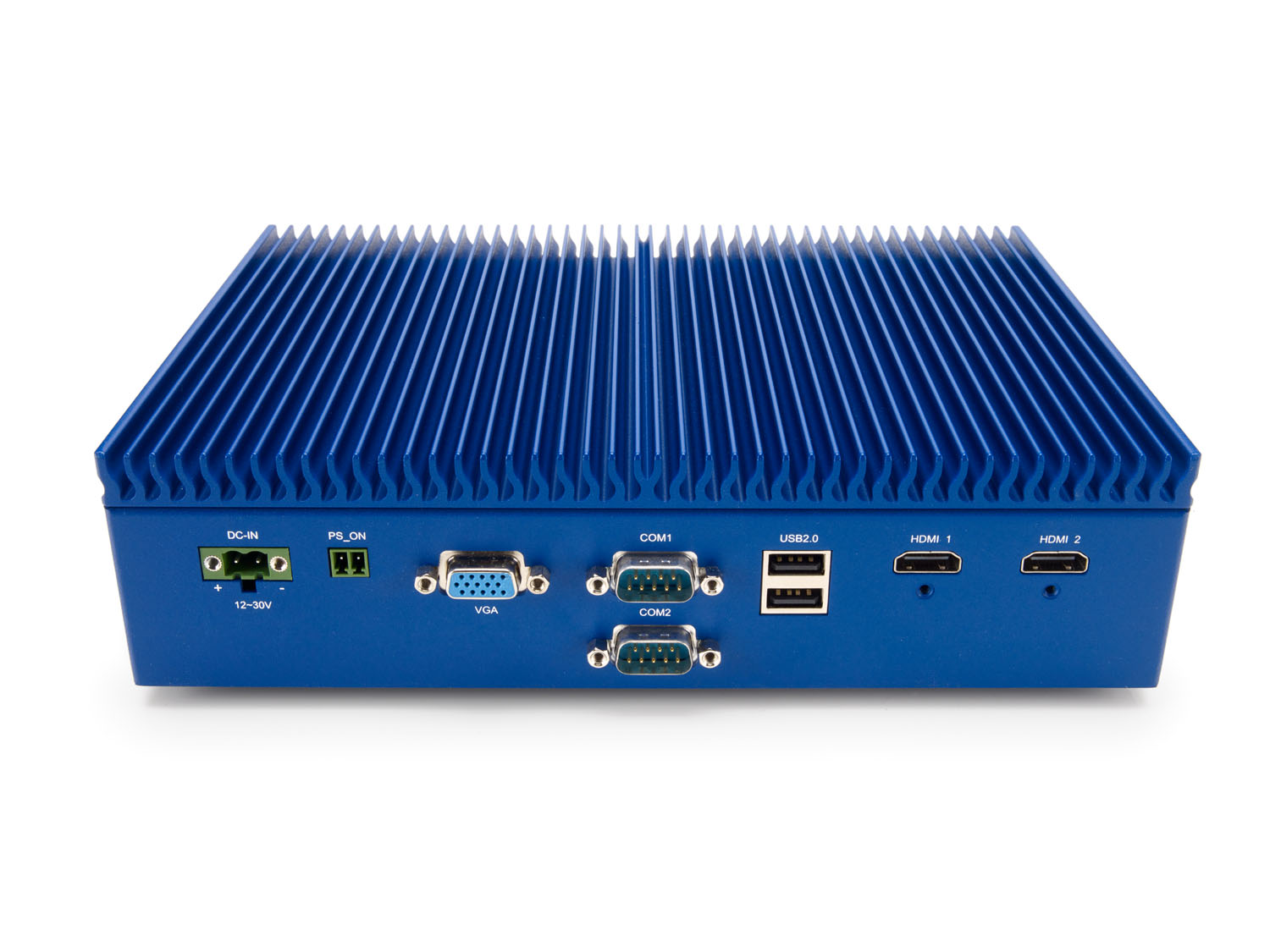

In addition to Ethernet, GEVA 4000 provides standard external interfaces for system integration, including display, 6 USB ports and a serial port. Camera triggering, I/O and lighting control is supported using a companion breakout module. The PL-USB module provides an easy and safe way to connect factory I/O to the GEVA 4000 and associated cameras.
Vision solutions on GEVA 4000 are set up using Teledyne DALSA’s iNspect Express or Sherlock application software. Both packages offer a full complement of tools, together with interfacing and control options for both users and equipment.For performance migration, applications built on other Teledyne DALSA equipment with the same camera setup will also run on GEVA.
Our vision system controllers are compatible with a wide variety of line and area scan cameras.View compatibility list
|Part Number||GEVA 4000|
|Interface||GigE Vision, USB 2.0, RS232|
|Interface Details||6x GigE|
|Software||Sherlock or iNspect Express|
|Storage Capacity||60 GB|
|Program Capacity||16 GB|
|Processor||2.6 GHz Core i7-6600u|
|Operating Temperature||0 — 55 °C|
|Display Output||VGA to QXGA (2048x1536/75Hz)|
|Power Input||24V (60W) via screw terminal connector|
|Serial Communication||USB 2.0 (x6), RS232 (x2)|
|I/O Details||8 IN/12 OUT via PL-USB companion module|
|Cooling||Fanless via passive heatsink|
|Mounting Options||Panel mount|
|Certifications||CE, FCC Class A, RoHS|
|Dimensions||240 x 60 x 173 mm|
|GEVA 4000 User Manual|
|GEVA 4000 EC/FCC Declaration|
|GV4000 3D Model (STEP)||STP|
|GV4000 Mechanical Drawings|
