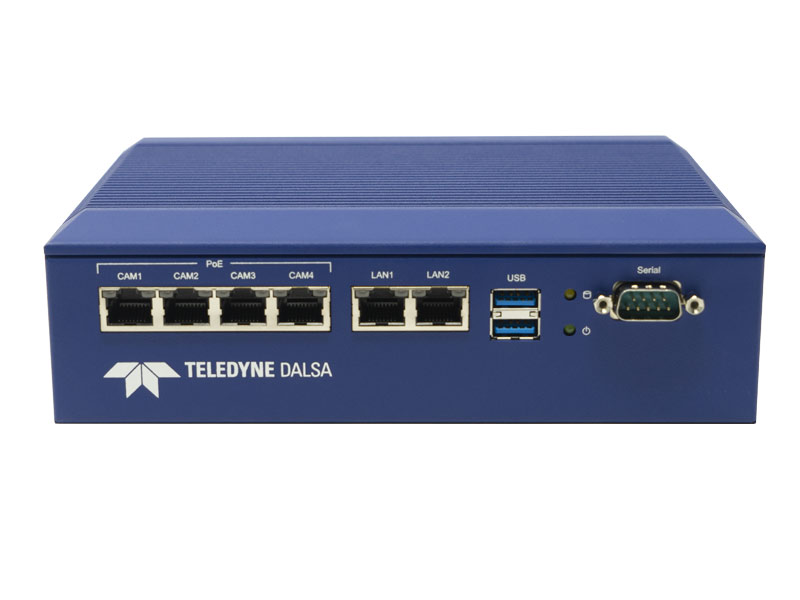

The GEVA 400 system offers excellent cost savings for multi-camera vision applications, such as final inspection of large assemblies. The four Power-over-Ethernet (PoE) compliant Gigabit camera ports are compatible with a wide range of Genie Nano GigE cameras. Adding cameras is easy with commercially available network technologies, allowing for large configurations at much lower system costs. The GEVA 400 features the latest Intel® quad-core ATOM™ architecture, and offers low power consumption and solid performance for a wide range of machine vision applications
Flexibility for experienced vision integrators, enough power for "heavy lifting".
Convenient, easy to use, ideal for 1st-time users. No programming required.
Our vision system controllers are compatible with a wide variety of line and area scan cameras.
View compatibility list
| Part Number | GEVA 400 |
| Interface | USB 2.0, USB 3.0, RS232, Gigabit Ethernet |
| Software | Windows 10 IoT |
| Storage Capacity | 256 GB |
| Program Capacity | 8 GB |
| Processor | Intel® quad-core ATOM™ |
| Operating Temperature | -20 — 50 °C |

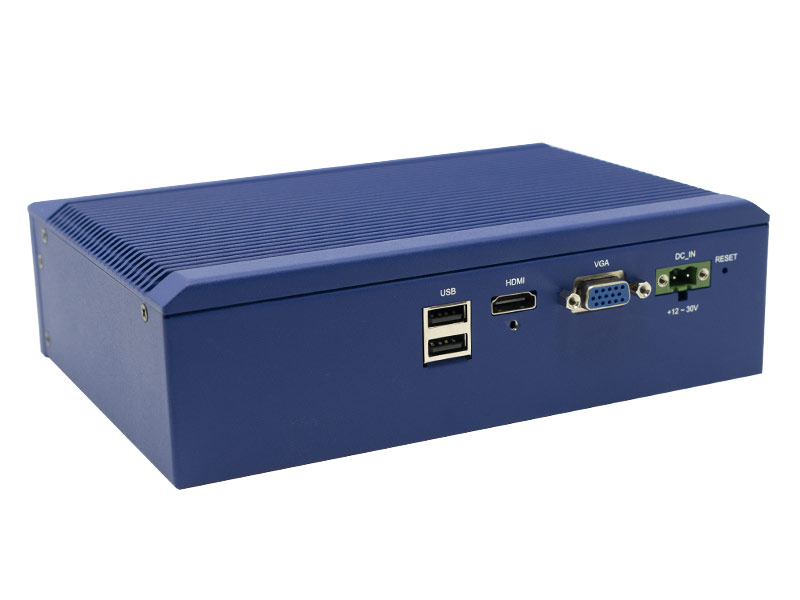

| Display Output | VGA & HDMI |
| Power Input | 24V (60W) |
| Serial Communication | USB 2.0 (x2), USB 3.0 (x2), RS232 |
| I/O Details | 8 IN/12 OUT via PL-USB companion module |
| Cooling | Fanless via passive heatsink |
| Mounting Options | DIN rail |
| Certifications | CE, FCC Class A, RoHS |
| Dimensions | 198 x 57 x 184 mm |
| Document | Type |
|---|---|
| GEVA 400 Datasheet |
| Document | Type |
|---|---|
| GEVA 400 User Manual |
| Document | Type |
|---|---|
| GEVA 400 EC/FCC Declaration |
| Document | Type |
|---|---|
| GV400 3D Model (STEP) | STP |
| GV400 Mechanical Drawings |
