Scanning X-ray detectors

High-Resolution Real-time X-ray Imaging

Shad-o-ScanĀ is a family of scanning X-ray detectors specifically designed for the challenging requirements of high-performance industrial and scientific X-ray applications. Industry-leading CMOS performance enables the ultimate sensitivity and highest resolution in the industry, and ensures long detector lifetime in even the harshest radiation environments.

Unbeatable Performance

Shad-o-Scan detectors provide high speed imaging and have among the highest dynamic range in the industry, featuring state-of-the-art 14-bit digitization which allows for X-ray imaging at diminishingly low dose levels. Our unique industrial-grade X-ray conversion stack effectively eliminates imaging artifacts associated with image lag and gain hysteresis.

Durable and Powerful

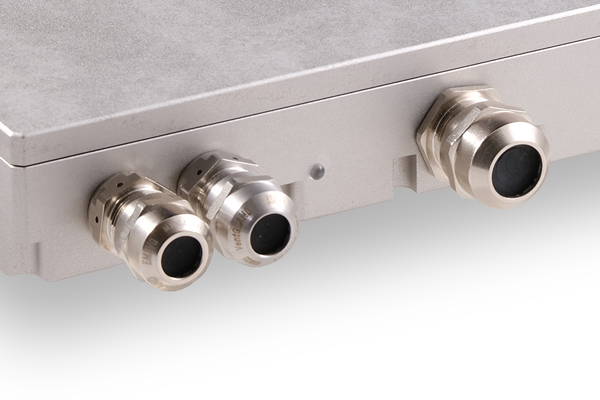

Shad-o-Scan is reliable and power-efficient, satisfying a wide range of imaging requirements with built-in flexibility on controlling the imaging mode and configuring the X-ray sensor. Requiring only 20 Watts at full speed operation, the Shad-o-Scan detector has no need for external active cooling, reducing cost and maintenance concerns on the system level. The Shad-o-Scan detectors contain internal shielding to protect the sensor and camera electronics from x-ray radiation. The cameras are optimized for the 10-160 kV energy range, but may be used with x-ray energies as high as 225 kV.

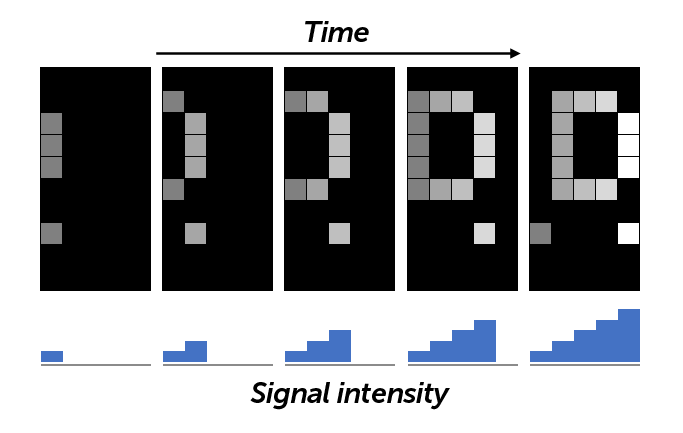

Digital TDI Functionality

Digital Time Delay Integration (D-TDI) technology offers the possibility to increase the sensitivity and enhance the contrast resolution of the Shad-o-Scan product for industrial demanding applications.

Family Specifications

Supported Interfaces 5 Gigabit Ethernet


Model Active Area Resolution Interface Pixel Size Max Frame Rate

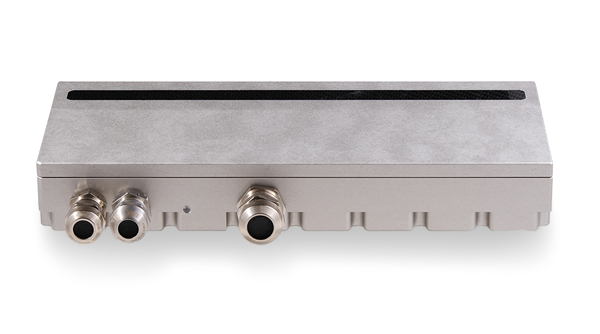

Shad-o-Scan 3001
Part number: SB1661
304 x 6 mm 3072 x 64 5 Gigabit Ethernet 99 µm Standard: 1000 fps
Shad-o-Scan 4501
Part number: SB1671
456 x 6 mm 4608 x 64 5 Gigabit Ethernet 99 µm Standard: 1000 fps
Shad-o-Scan 1501
Part number: SB1681
152 x 6 mm 1536 x 64 5 Gigabit Ethernet 99 µm Standard: 1000 fps


Document Type
Shad-o-Scan Datasheet PDF
Document Type
Shad-o-Scan User Manual PDF
