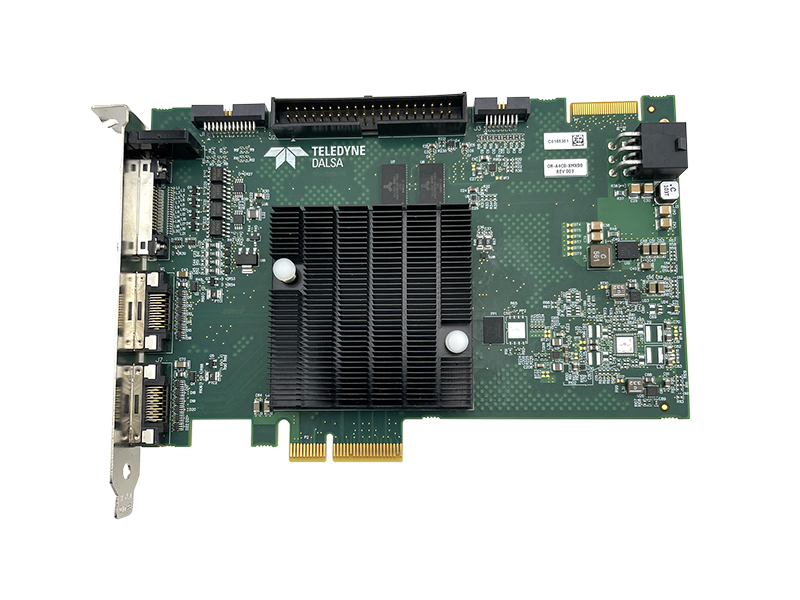

Xtium2-CL MX4

Camera Link

Proven Capability. High Speeds. Full Compatibility

Building on the field proven capability of Teledyne DALSA’s Xtium™-CL MX4, the Xtium2™-CL MX4 supports Camera Link® standard and a wide variety of area and line scan color/monochrome camera configurations.

With great bandwidth comes great responsibility

The Xtium2-CL MX4 delivers sustained bandwidth more than 1.7GB/s, while supporting PCIe Gen 3, 2 and 1 slots. Specifically designed to ease the supply chain constraints, the Xtium2-CL MX4 feature identical feature set as Xtium-CL MX4. Customers can use either board interchangeably with a little to no change to their applications, ensuring a consistent and improved supply.

The proven on-board Data Transfer Engine (DTE) delivers maximum bandwidth with no specialized motherboards or chipsets. By enabling maximum sustained throughput and ready-to-use image data, the Xtium2-CL MX4 minimizes CPU usage and improves processing times for the host applications.

Outstanding features to make your job easier

The Xtium2-CL MX4 offers built-in, robust electrical signals for external event synchronization, and status notification LEDs. It can synchronize one or more boards to capture images from multiple area or line scan cameras simultaneously. The Xtium2-CL MX4 supports Base, Medium, Full or 80-Bit mode Camera Link area and line scan, color and monochrome cameras with PoCL capabilities.

Teledyne DALSA’s frame grabbers employ Trigger to Image Reliability framework to control and monitor the entire image capture process from a trigger through capture and transfer images to host memory and notify if any event and/or data loss occurs. As a leading supplier of machine vision components, Teledyne DALSA offers frame grabbers that comply with leading machine vision camera interface standards and supports its own and 3rd party cameras.

Free acquisition and control software libraries: Sapera LT

The Xtium and Xtium2 series of frame grabbers are fully supported by Sapera LT SDK. Sapera LT SDK is an image acquisition and control software development toolkit (SDK) for Teledyne DALSA'S cameras and frame grabbers. Hardware independent by nature, Sapera LT offers a rich development ecosystem for machine vision OEMs and system integrators. Sapera LT SDK supports image acquisition from cameras and frame grabbers based on standards including GigE Vision™, Camera Link®, CoaXPress®, and Camera Link HS™.

Fully supported by Sapera™ vision SDK

When combined with a compatible Teledyne DALSA frame grabber, standard Sapera Processing run-time licenses are offered at no additional charge. Sapera Processing is at the heart of Sapera Vision Software, delivering a suite of image processing and analysis functions. These functions include over 400 image processing primitives, barcode tools, pattern matching tools (both area-based and edge-based), OCR, color and blob analysis, measurement, and calibration tools for perspective and lens correction. The standard tools run-time license includes access to image processing functions, area based (normalized correlation based) template matching tools, blob analysis, and lens correction tools.

Product Tour


Part Number OR-A4C0-XMX00
Board Type PCIe
Host Bus PCIe Gen2 x4; PCIe Gen3 x4 ready
Board Interface Camera Link

Data: 2xSDR (mini CameraLink),


  • 1 × DH60-27 pin on main bracket
  • 1 × 26 pin for internal connections
  • 1 × 16 shrouded connector
  • 1 × 40 pin shrouded connector
Camera Format 2 × CameraLink Base or 1 × CameraLink Medium, Full or 80-bit (Deca)
Pixel Clock 20 to 85 MHz
Bits per Pixel 8, 10, 12, 14 and 16-bit/pixel
Number of Camera Taps

1 Tap – 8/10/12/14/16-bit mono/bayer; 8/10/12-bit RGB

2 Taps – 8/10/12-bit mono/bayer; 8-bit RGB

3 Taps – 8/10/12-bit mono/bayer

4 Taps – 8/10/12-bit mono/bayer


  • 8 Taps – 8-bit mono/bayer
  • Full packed 8-bit RGB/BGR/RGBY


    • 8 Taps – 10-bit/pixel mono/bayer
    • 10 Taps – 8-bit/pixel mono/bayer
    • Packed 8/12-bit RGB/BGR or
  • Packed 8-bit Bi-Color
GPIO Inputs: 4 independent optically isolated (2 shared with ext. trig); Output: 8-TTL (2 shared with strobe)
Camera Control External Trigger input, Strobe output, Quadrature Encoder Input
Frame Buffer 512 MB
Features PoCL PoCL ILUTs, Dead Pixel (3 × 2), User programmable 3 × 3 filter, Metadata, Strobe cycling/line-by-line, Bayer and Bi-color conversion
Software Sapera LT SDK, Sapera Vision Software
OS Support Windows 7 (32-bit)*, Windows 7 (64-bit)*, Windows 8 (32-bit), Windows 8 (64-bit), Windows 10 (32-bit), Windows 10 (64-bit), Linux (64-bit), WoW64

* Contact DALSA sales for more details


Document Type
OR-YXCC-27BE2M1 Color Code Datasheet PDF
Xtium2-CL MX4 Datasheet PDF
Document Type
Xtium2-CL MX4 User Manual PDF
App Notes
Document Type
Application Note: Using Xtium2-CL MX4 and Xtium-CL MX4 interchangeably PDF
Product Declarations
Document Type
Xtium2-CL MX4 Declaration Of Conformity PDF
