MicroCalibir

Compact Uncooled LWIR Cores

Teledyne's Latest Microbolometer Technology

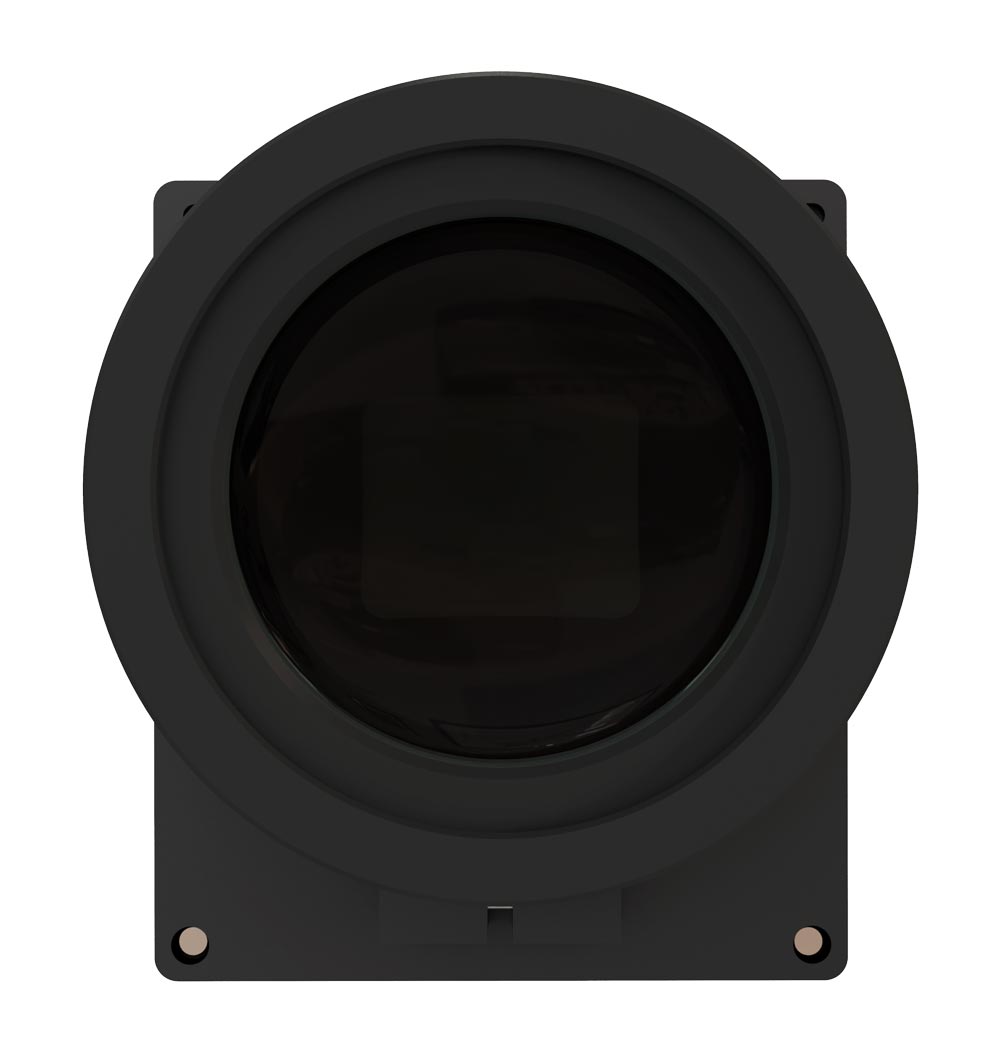

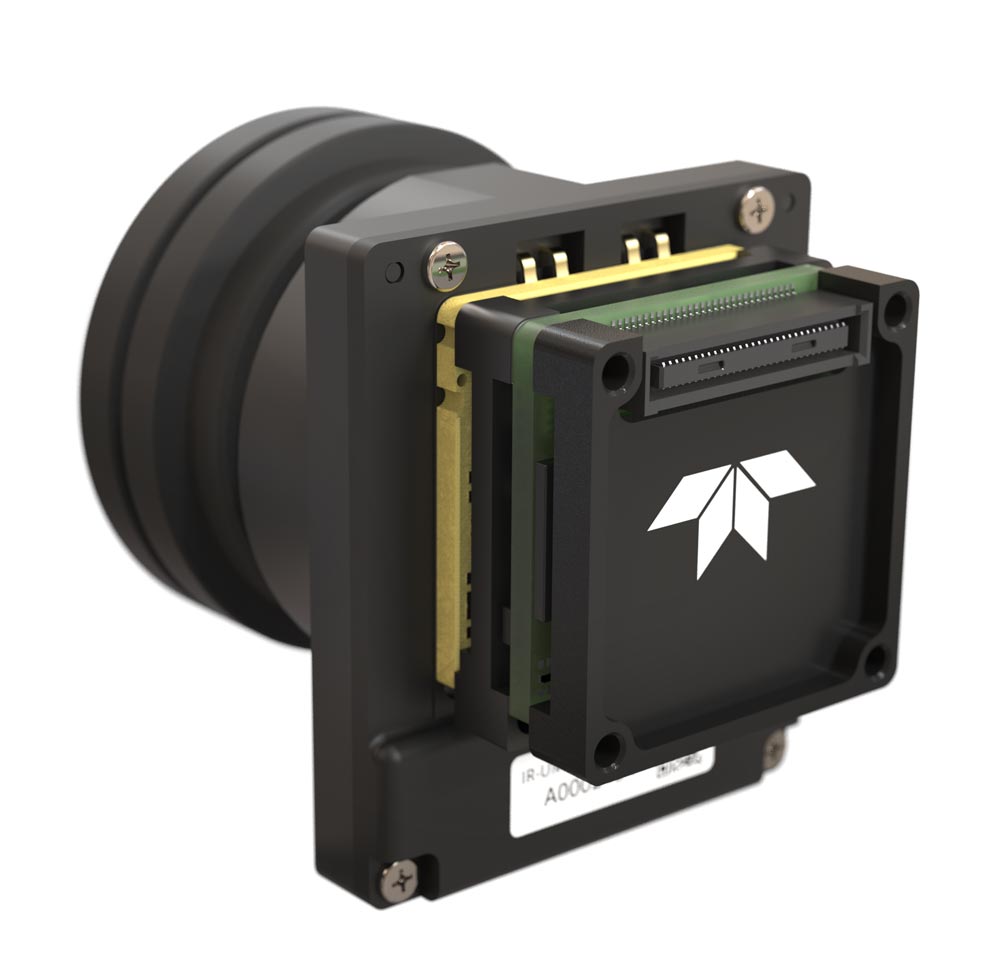

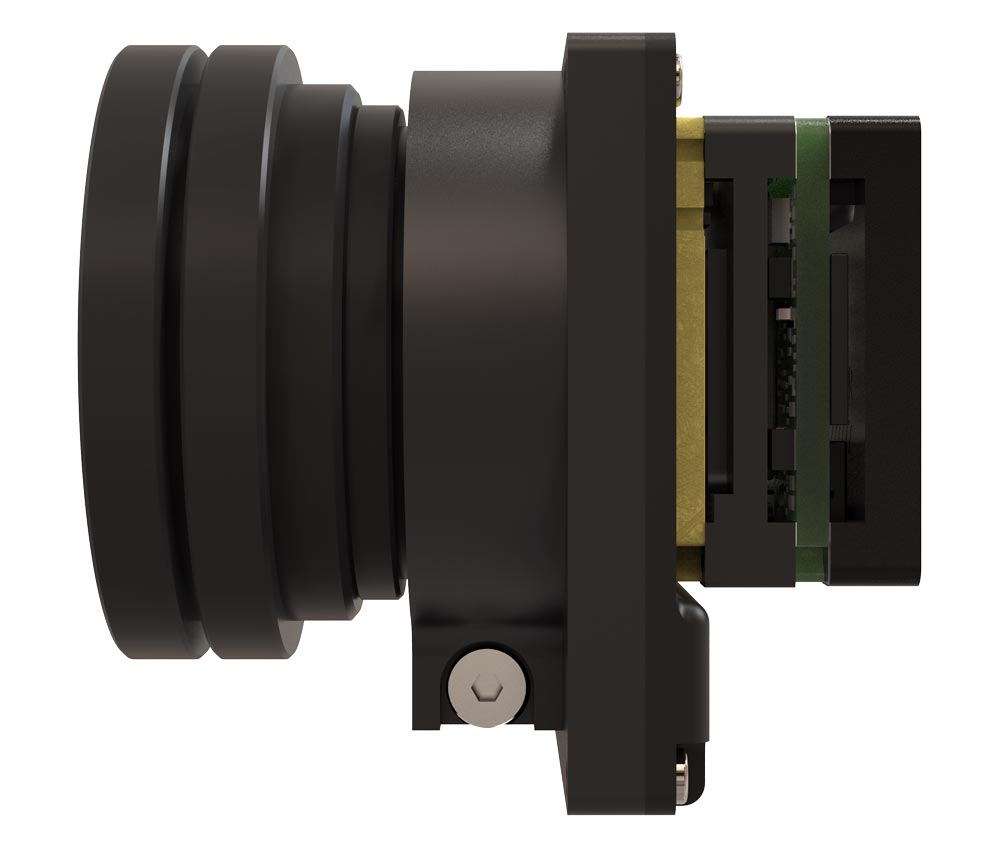

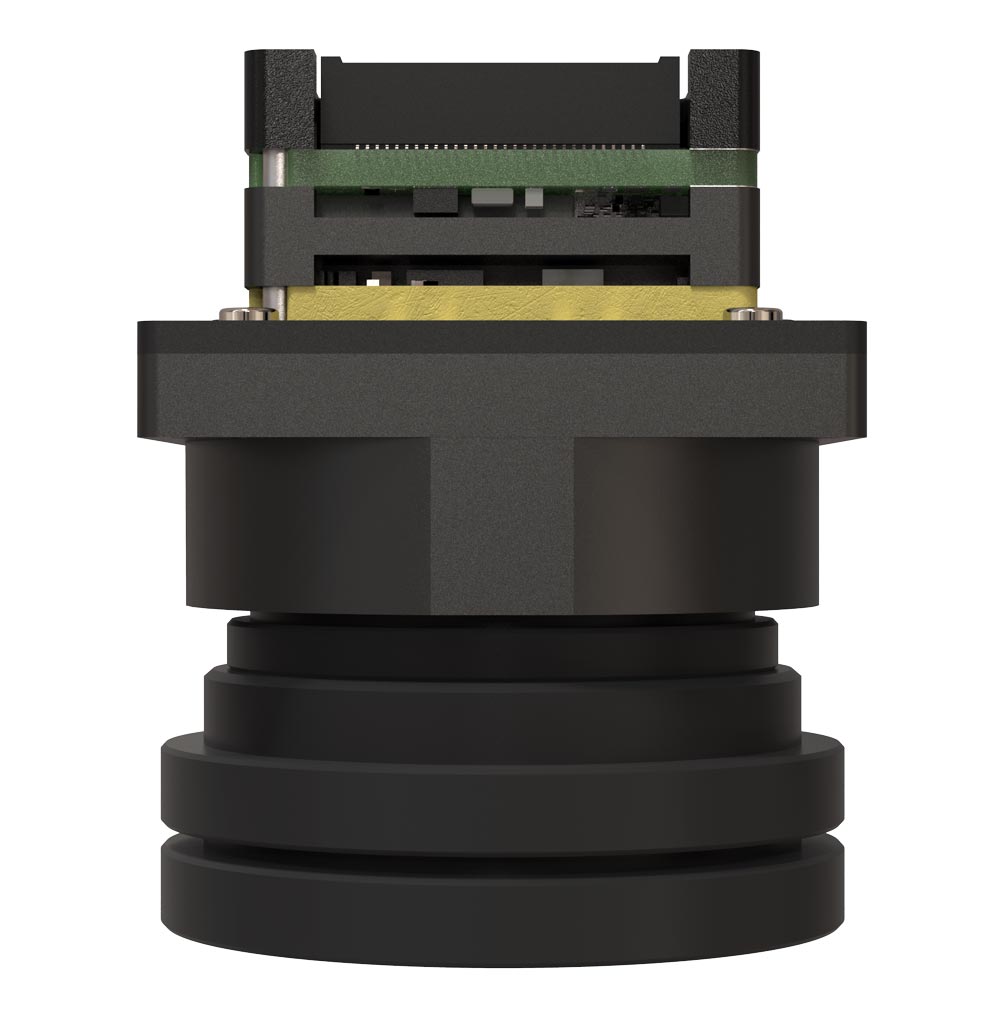

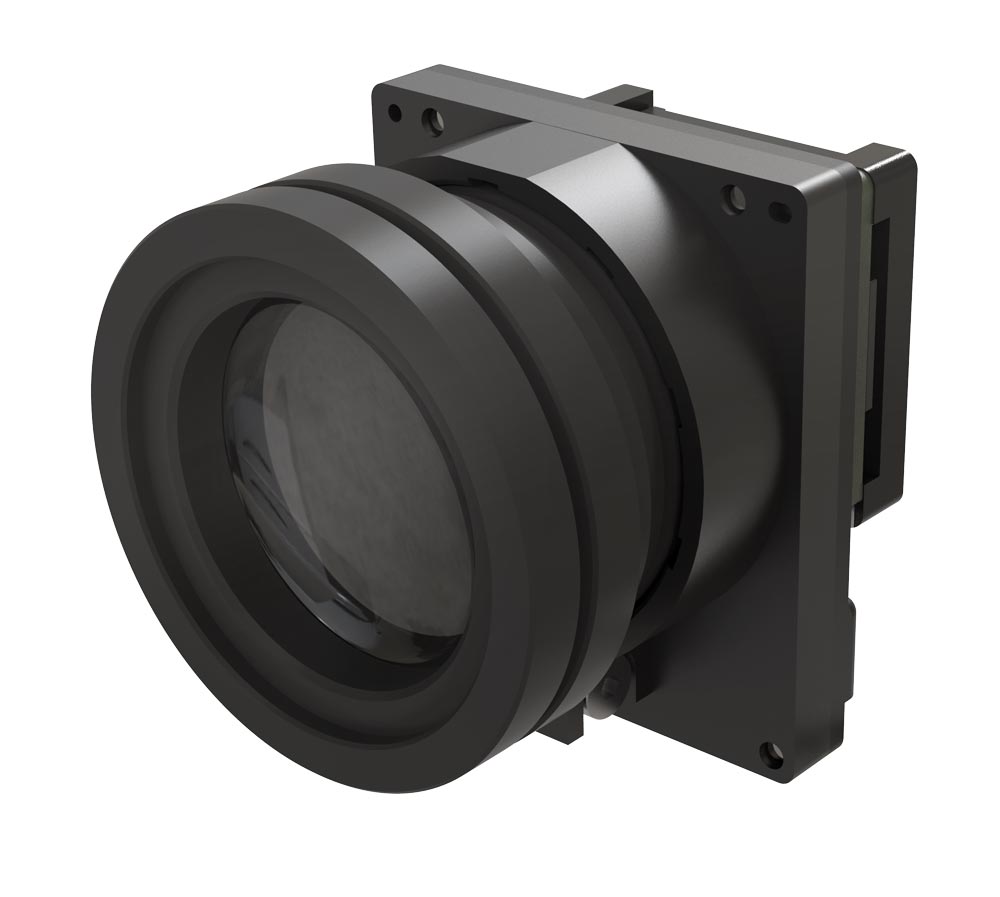

The latest advances in the integration of our in-house 12 μm microbolometer pixel technology with a deep-ADC ROIC circuit have resulted in the development of the small and lightweight MicroCalibir™. This compact, low-power uncooled thermal camera platform features the smallest VGA IR core module on the market making it ideal for OEM drones, handhelds, helmet-mounted and vehicular integration products.

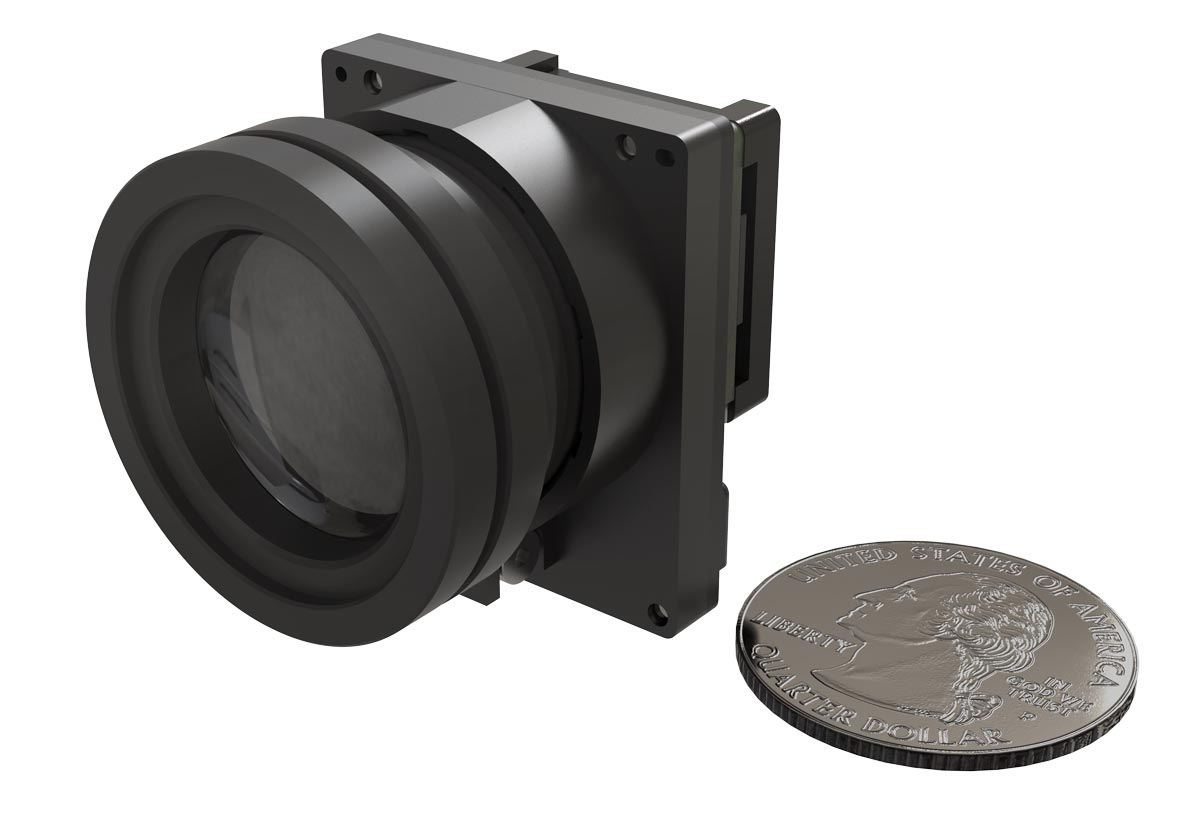

MicroCalibir has a novel ROIC design which results in a 1000°C intra-scene temperature range at a sub-50mK NETD. Its pocket-sized 21 x 21 x 12 millimeter core offers the latest Size Weight and Power (SWaP) optimization for this type of LWIR imager, with very high dynamic range. These cameras can also reach very low, sub-30mK, NETD levels by utilizing user selectable advanced noise filtering algorithms.

The MicroCalibir platform delivers high-end thermal capabilities and accuracy and can be configured by resolution, field of view, and frame rate to deliver optimal performance in applications such as UAVs, security and surveillance, outdoor recreation/personal vision systems, firefighting and many more.

MicroCalibir cameras and cores are available in QVGA and VGA resolutions and a variety of lens options. Its modular design allows for different interface options, for today and for the future.

Applications

  • OEM drones/ UAVs
  • Handhelds/portable or helmet-mounted
  • Vehicular integration products
  • Surveillance
  • Outdoor recreation/personal vision systems
  • Firefighting
  • Defense & security

General Specifications



Resolution 320 (H) x 240 (V) or 640 (H) x 480 (V)
Frame Rate 30/60 Hz
Pixel Size 12 µm
NETD ≤50 mK; F/1.0, at 30 fps
Size

21mm x 21mm (core only) frontal form factor

23 mm x 33.5 mm x 39 mm with shutter and lens mount

Mass <20 g (without lens)
Operating Temp -40°C to 80°C
I/O Options USB2, CSI2, Parallel, UART

Features

Export Control

The MicroCalibir cameras are currently classified as a "Dual Use" item under Group 1 (1-6.A.3.b.4.b) of the Canada Export Control List and Category 6 (6.A.3.b.4.b) under the Wassennaar Arrangement on Export Control for Conventional Arms and Dual-Use Goods and Technologies. As such, the Camera is subject to export control – export authorization is required to export the Camera from Canada, whether on a permanent or temporary basis.

  • Compact size: 21 mm x 21 mm (core only) frontal form factor
  • VGA and QVGA 12 μm @ 60 Hz
  • NETD <50 mK
  • Selection of interfaces:
    » USB2.0 (contact sales if CSI2 is preferred)
    » Parallel
  • Lens selection ranging from ~10 to 90 degree HFOV
  • Smart Noise reduction
  • Custom LUTs
  • Contrast enhancement
  • External Triggers
  • Overlays
  • Custom versions available
  • NDAA compliant
  • Made in Canada

Standard Lenses



M18 Interface (QVGA)

M24 Interface (VGA)

EFL (mm)

FOV

Lens Mass (g)

EFL (mm)

FOV

Lens Mass (g)

5 44.4° x 33.2° 13 6.4 77.3° x 54.7° 27
9 24° x 18° 12 10 46° x 35° 30
14 15.6° x 11.7° 20 14 31° x 23° 28
18 12.2° x 9.2° 25 18 23.9° x18.1° 28
      25 17.1° x 13° 57
      35 12.4° x 9.4° 105



Videos

Photos

Family Specifications

Camera Type Area Scan
Sensor Technology Microbolometer
Supported Interfaces USB 2.0
Spectrum Capability Long-Wave Infrared (8000-12000 nm)

Downloads

Datasheets
Document Type
MicroCalibir Datasheet PDF
