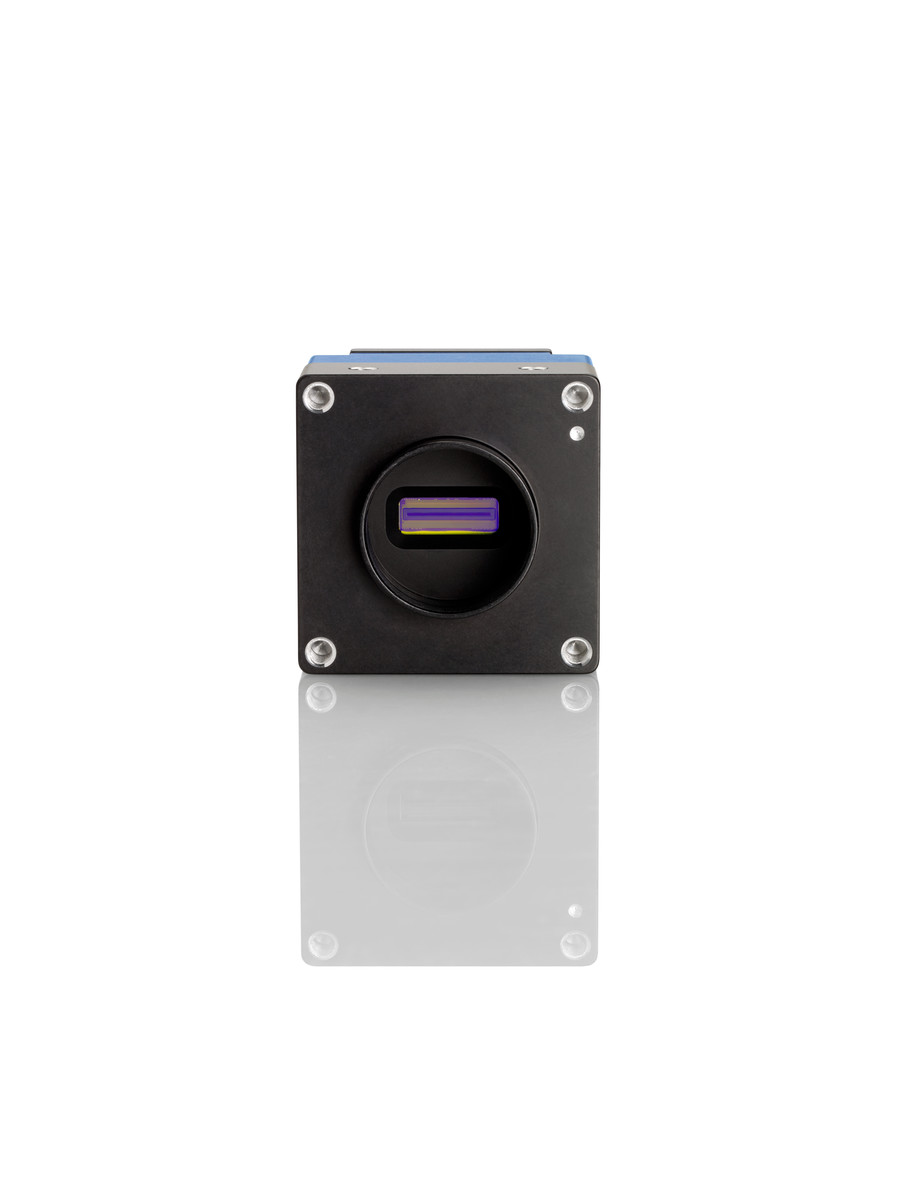

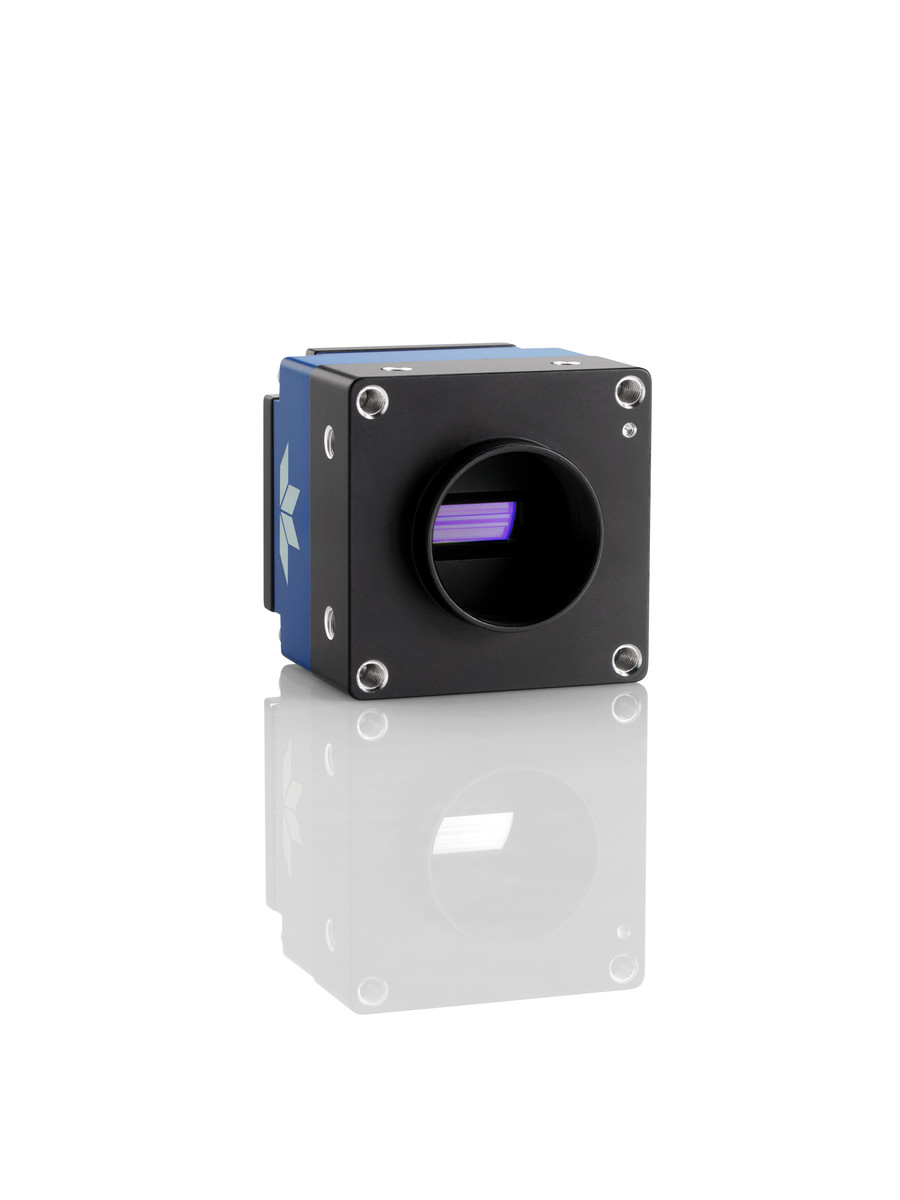

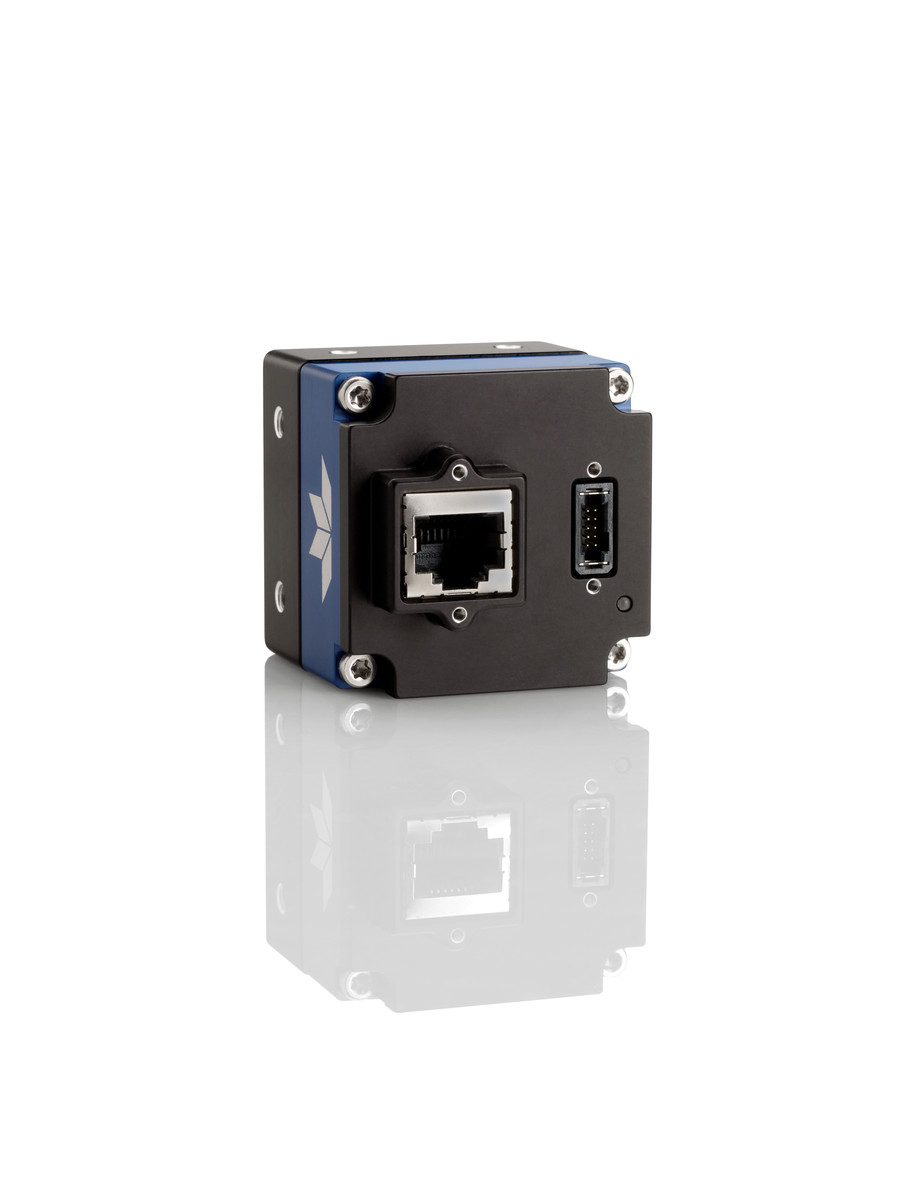

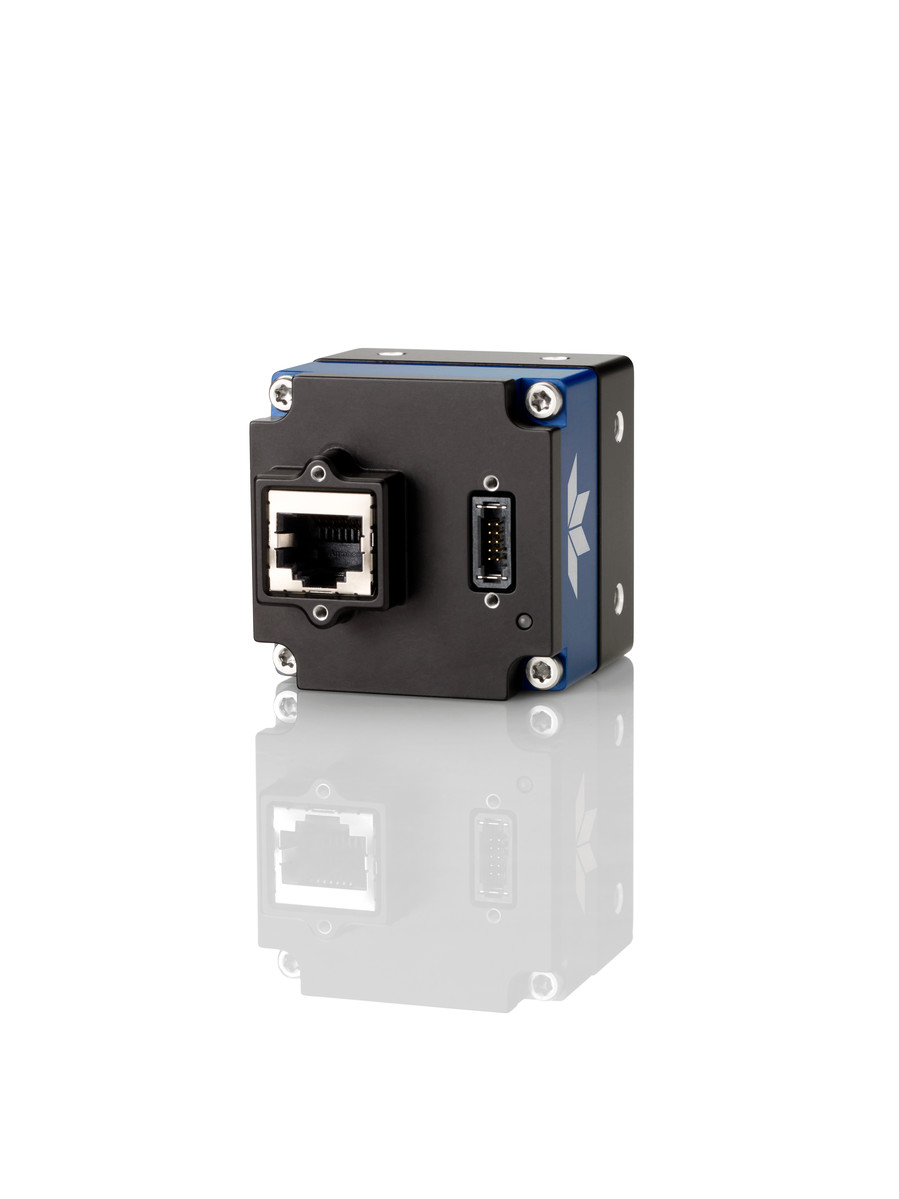

Linea SWIR

InGaAs GigE Line Scan Camera

Cutting-edge InGaAs Sensor

Teledyne DALSA’s short-wave infrared (SWIR) GigE line scan camera features a cutting-edge InGaAs sensor in a compact package for a wide variety of machine vision applications.

This high speed, high resolution camera is the first product in DALSA’s SWIR family. The uncooled sensor features 40 kHz line rate with horizontal resolution of 1024  pixels on a 12.5 µm pitch, delivering great responsivity that can be further improved through pixel binning, which gives customers the option to bin to 512 pixel resolution with 25 µm pixels.

Like all Lineas, Linea SWIR shares the robust build quality and advanced functionality that is part of Teledyne DALSA’s unmatched line scan heritage. Linea SWIR is packed with features to make your machine vision job easier, including high speed, high sensitivity, cycling mode, and programmable I/Os. The versatile Linea SWIR is ideal for applications such as optical sorting, solar panel inspection, and general purpose machine vision.

Why SWIR? To see what visible can't

Example: LINEA SWIR SEES RIGHT THROUGH SILICON to image the target on the back of the wafer
Target on back of wafer Hidden to visible wavelengths
Backside Illumination with SWIR Light Source
Example: Food Sorting Application. Linea SWIR enables more efficient detection

Detection Capabilities:

  • Moisture Content
  • Bruising
  • Foreign Objects

Benefits:

  • Increase Yield
  • Reduce Waste
  • Improve Quality

Family Specifications

Camera Type Line Scan
Sensor Technology CMOS
Supported Interfaces GigE Vision
Spectrum Capability Short-Wave Infrared (950-1700 nm)
Features Power over Ethernet (PoE)

Camera Models

Click column headings to sort
Model Resolution Spectrum Interface Pixel Size Max Line Rate
Linea SWIR 512
Part number: SL-GA-05H04A-00-R

  • ~ 1 k
  • 8 bit, 12 bit
  • 0—40 °C
  • 66 dB
  • 46 x 46 x 55 mm
  • 150 g
512 x 1
InGaAs
Mono GigE Vision 25 µm 40 kHz
Linea SWIR 1k
Part number: SL-GA-01K04A-00-R

  • ~ 1 k
  • 8 bit, 12 bit
  • 0—40 °C
  • 72 dB
  • 46 x 46 x 55 mm
  • 150 g
1024 x 1
InGaAs
Mono GigE Vision 12.5 µm 40 kHz

Videos

Photos

Product Tour

Downloads

Datasheets
Document Type
Linea SWIR 1k Datasheet PDF
Linea SWIR 512 Datasheet PDF
Manuals
Document Type
Linea SWIR GigE Camera User Manual PDF
Linea SWIR GigE Quick Start Guide PDF
RoHS/Composition Declarations
Document Type
Linea SWIR Material Composition Declaration PDF
