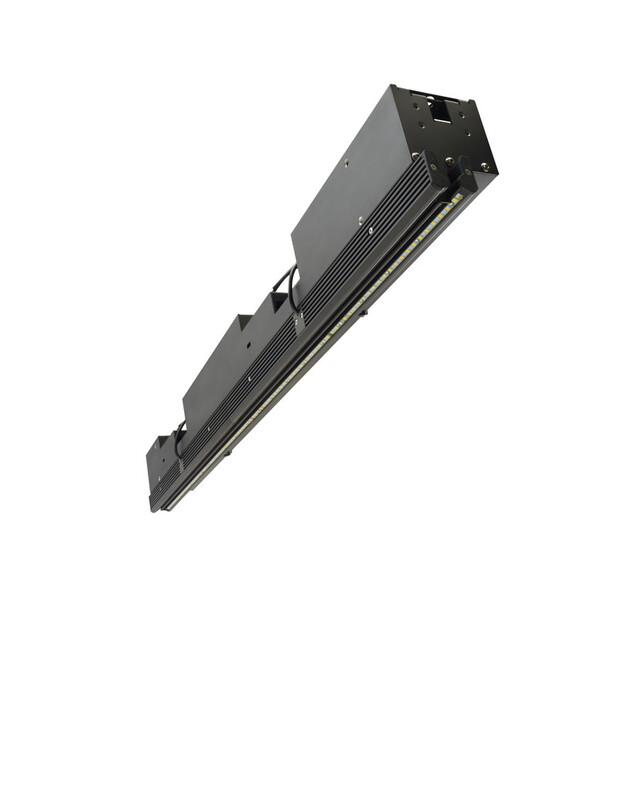

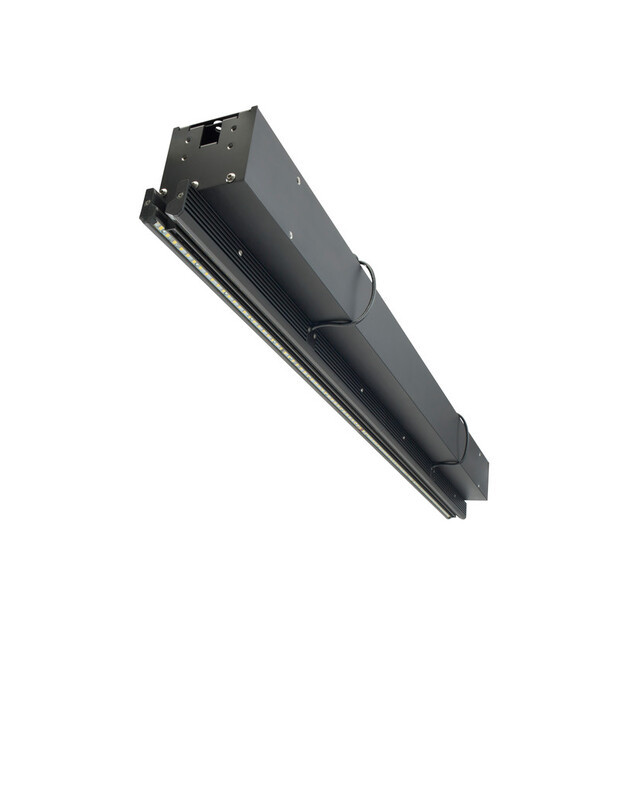

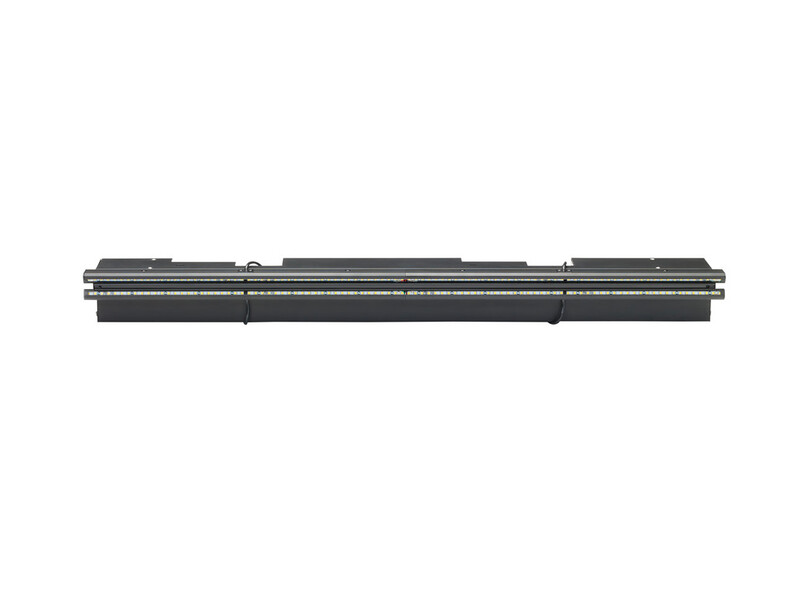

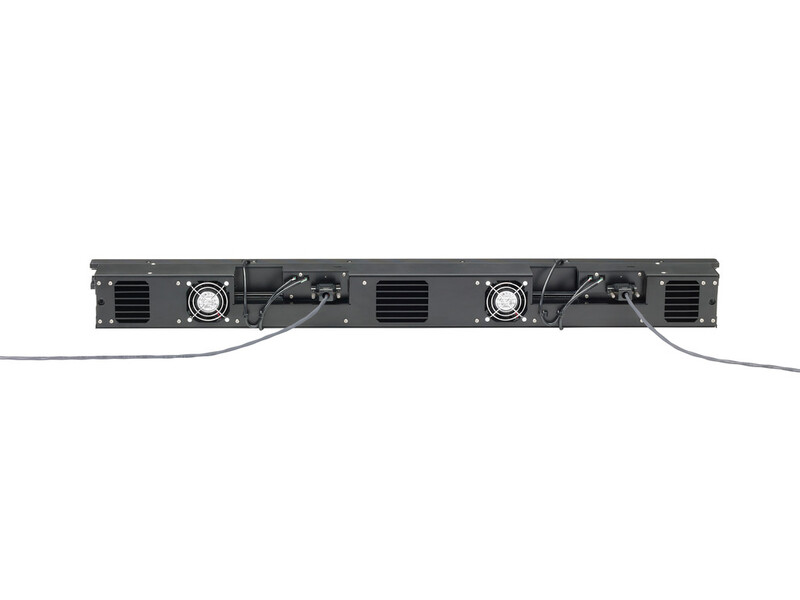

AxCIS Contact Image Sensor

High-Speed and High-Resolution Line Scan in a Fully Integrated, Compact Package

AxCIS™ is a fully integrated line scan imaging module which combines sensors, lenses, and lights all-in-one. This Contact Image Sensor (CIS) is easy-to-use and offers a lower system cost for many demanding machine vision applications as well as superior signal-to-noise ratio and a Camera Link HS SFP+ fiberoptic interface. AxCIS can fit anywhere in your system, even with limited vertical clearance and it’s easy to install, with no complex alignment or calibration required and a single 24v power supply. Monochrome and color models are available now.

Maximizing flexibility for your every application, AxCIS offers selectable pixel size and resolution, letting you switch between 28/42/56/84 µm pixels for resolution from 300, 450, 600, all the way up to 900 DPI with the same unit.

Latest Generation CMOS Technology

AxCIS is based on Teledyne’s new quadlinear CMOS image sensors, which deliver up to 120 kHz line rates for mono, 60 kHz x 3 for color, and 900 dpi resolution, so that defects can be detected with precision at high speeds. The sensors are pre-calibrated to pixel size and available in color and monochrome.

2024 VSD Innovators Award Winner

The AxCIS™ family of high-speed and high-resolution fully integrated line scan imaging modules was recognized among the best by the 2024 VSD Innovators Awards. Votes placed by the engineering community recognized Teledyne DALSA as a Gold honoree in the visible cameras category.

Learn more

HDR Imaging

HDR imaging can be achieved using dual exposure mode.  One row of the sensor array can have longer exposure for dark scenes and the other has short exposure for bright scenes.  This enables better detectability for highly reflective materials with improved dynamic range.

Large Field of View with No Missing Pixels

AxCIS uses a unique staggered design that covers the whole field of view without missing pixels. Every pixel has native data of true mono or color images and automatic tap balancing provides a 100% seamless image without any interpolation. AxCIS is available in widths of 400mm, 800mm, plus any other widths in increments of 100mm, plus selectable pixel size to deliver resolution at 300, 450, 600 and 900 DPI.

Next Generation Interface

With a Camera Link HS SFP+ fiberoptic interface, AxCIS delivers high resolution images over standard low-cost long cables lengths (up to 300m). Fiberoptic cables provide reliable data transmission which are immune to electromagnetic radiation in harsh industrial environments.

Teledyne Frame Grabber Integration

A single Teledyne Xtium2-CLHS FX8 frame grabber supports up to 4 x 400mm modules with up to 1.6 m field of view.


Battery Inspection

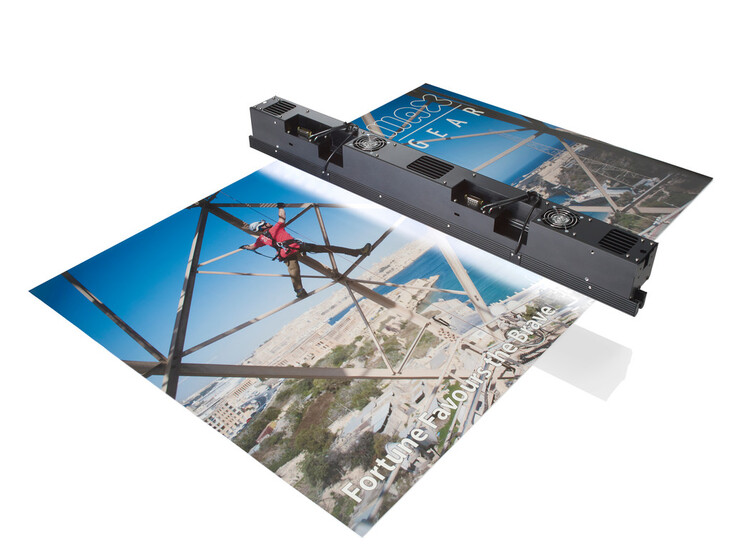

Print Inspection

Printed Circuit Board

Web Inspection

General Machine Vision

Family Specifications

Camera Type Line Scan
Sensor Technology CMOS
Supported Interfaces Camera Link HS
Spectrum Capability Visible (400-700 nm), Near Infrared (700-1000 nm)
Features T2IR

Camera Models

Click column headings to sort
Model Resolution Spectrum Interface Pixel Size Max Line Rate
AxCIS Color 400 mm
Part number: AX-FC-04B06T-00

  • ~ 14 k
  • 8 bit, 12 bit
  • 0—65 °C
  • 1100
  • 76 dB
  • RS422
  • 75 x 100 x 442 mm
14304 x 3 Color, Polarization Camera Link HS, Fiber Optic 28 µm 150 kHz
AxCIS Mono 400 mm
Part number: AX-FM-04B12H-00

  • ~ 14 k
  • 8 bit, 12 bit
  • 0—65 °C
  • 76 dB
  • 75 x 100 x 437.4 mm
14304 x 2 Mono Camera Link HS, Fiber Optic 28 µm 120 kHz
AxCIS Mono 800 mm
Part number: AX-FM-08B12H-00

  • ~ 29 k
  • 8 bit, 12 bit
  • 0—65 °C
  • 76 dB
  • 75 x 100 x 837.4 mm
28608 x 2 Mono Camera Link HS, Fiber Optic 28 µm 120 kHz
