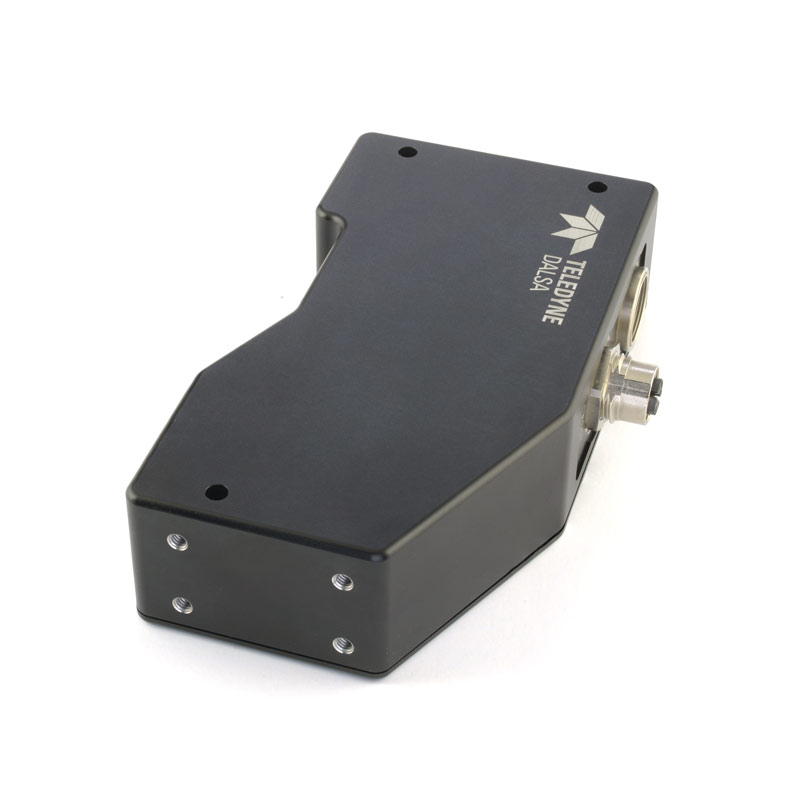

High Performance, Low Cost 3D Profile Sensor

High-Performance 3D Profiler Sensor for In-Line Measurement and Inspection Applications

Z-Trak is a series of 3D profile sensors delivering high-resolution, real-time height measurements using laser triangulation. These lightweight IP67 rated profile sensors are ideal for in-line measurement, inspection, identification and guidance applications in automotive, electronics, semiconductor and factory automation.

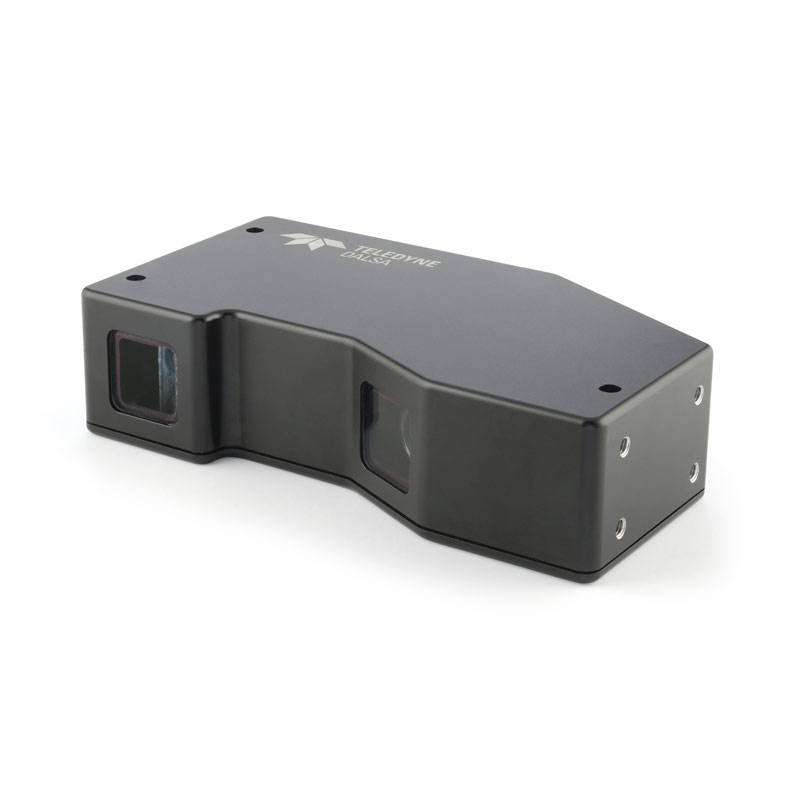

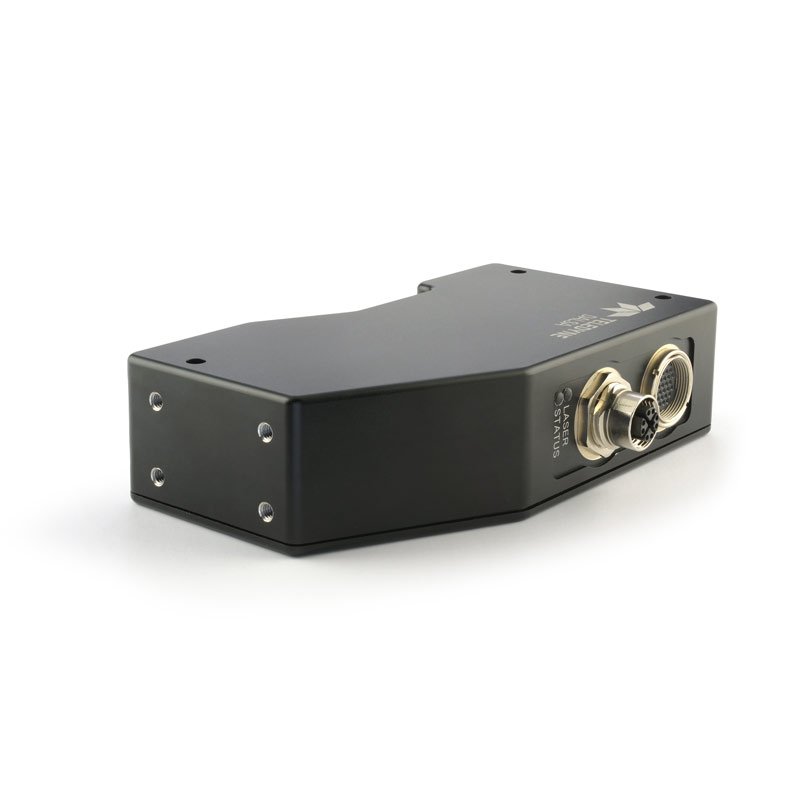

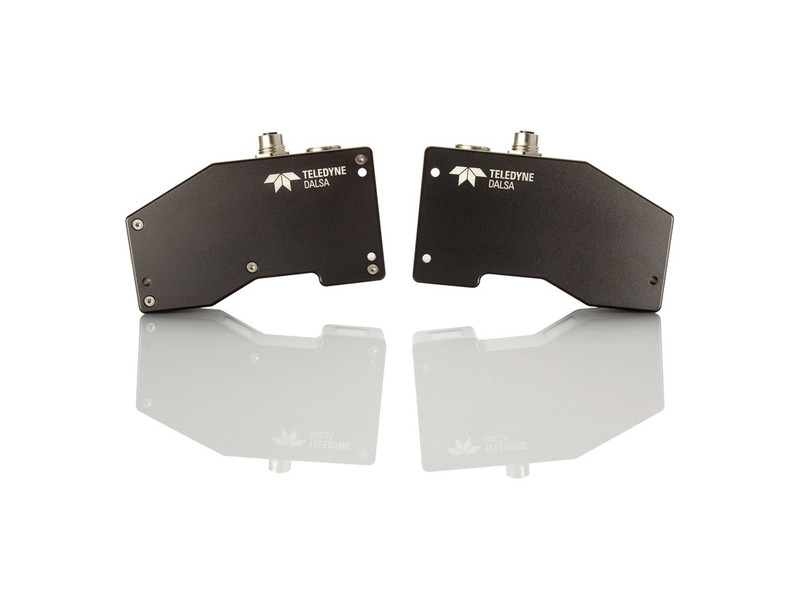

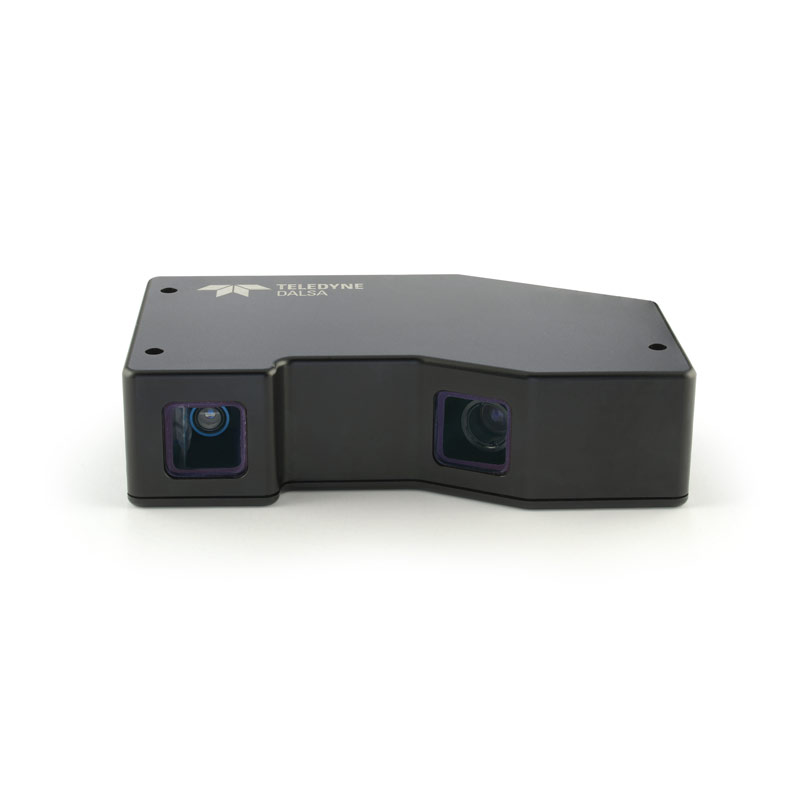

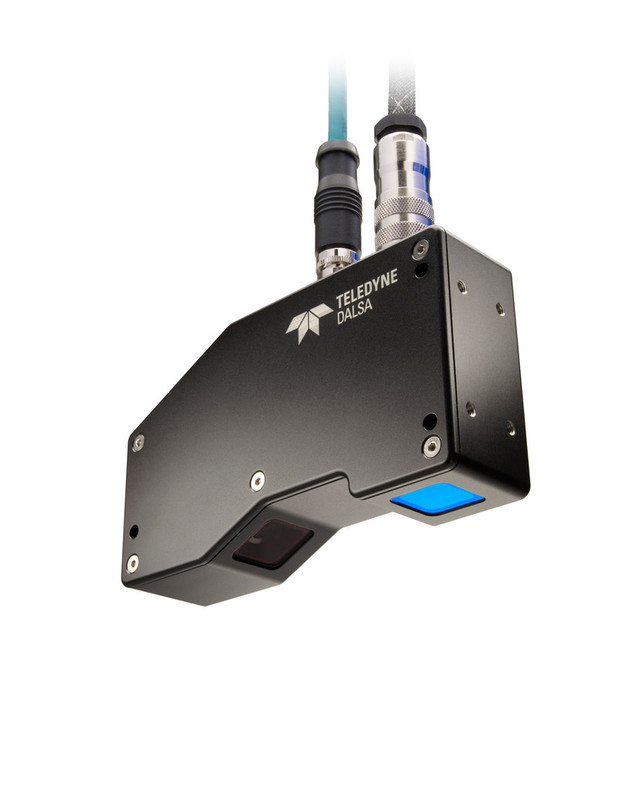

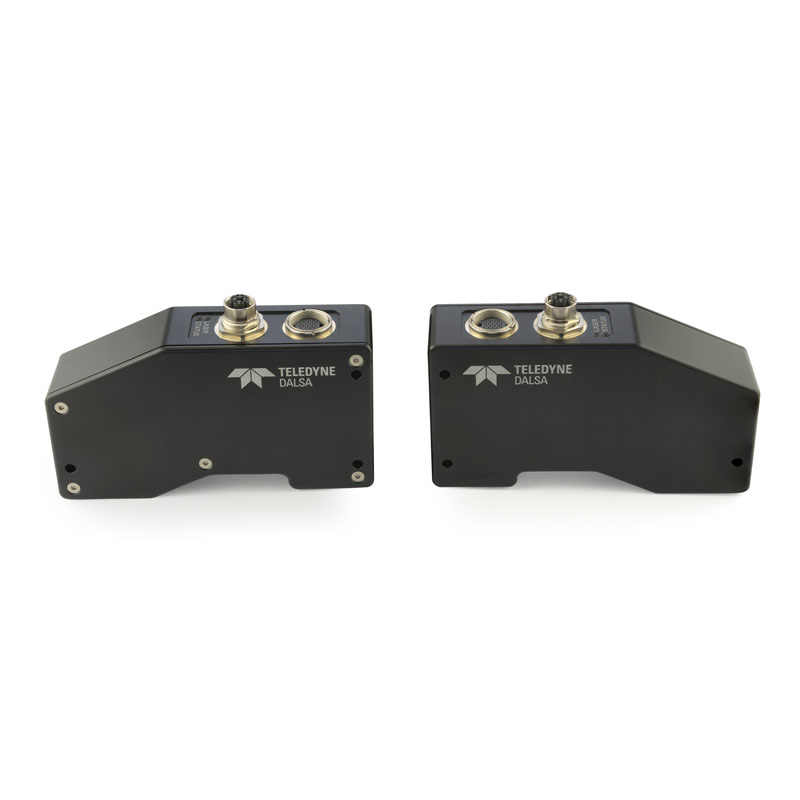

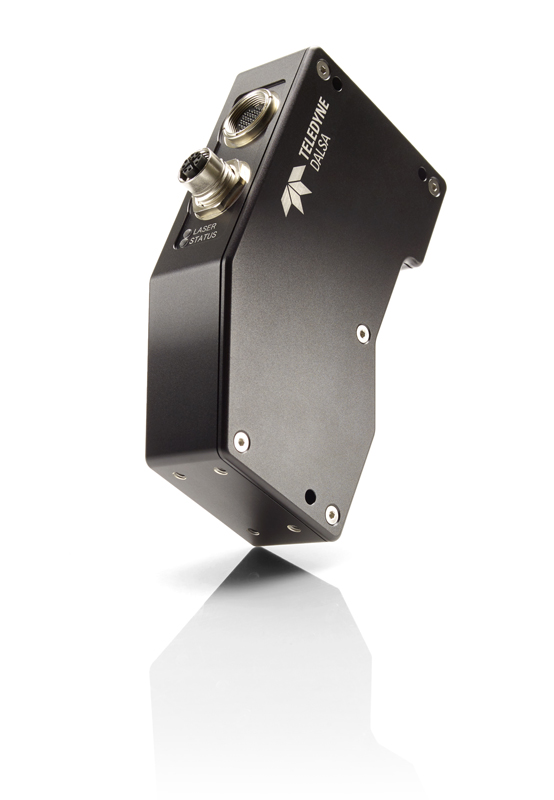

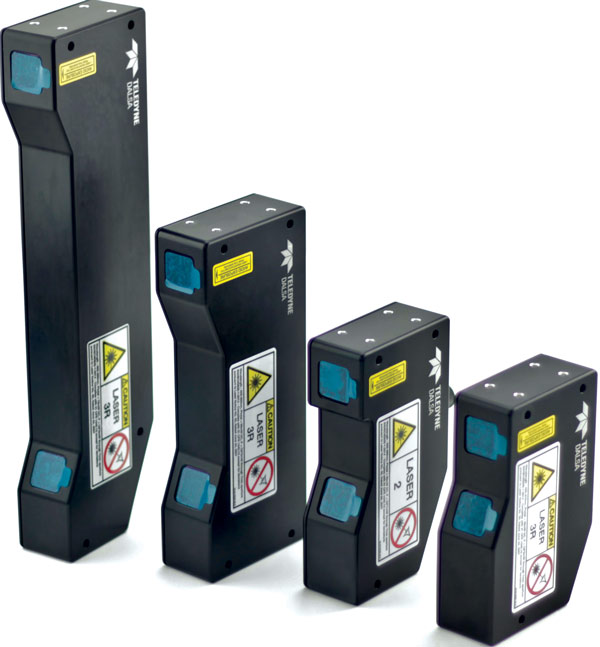

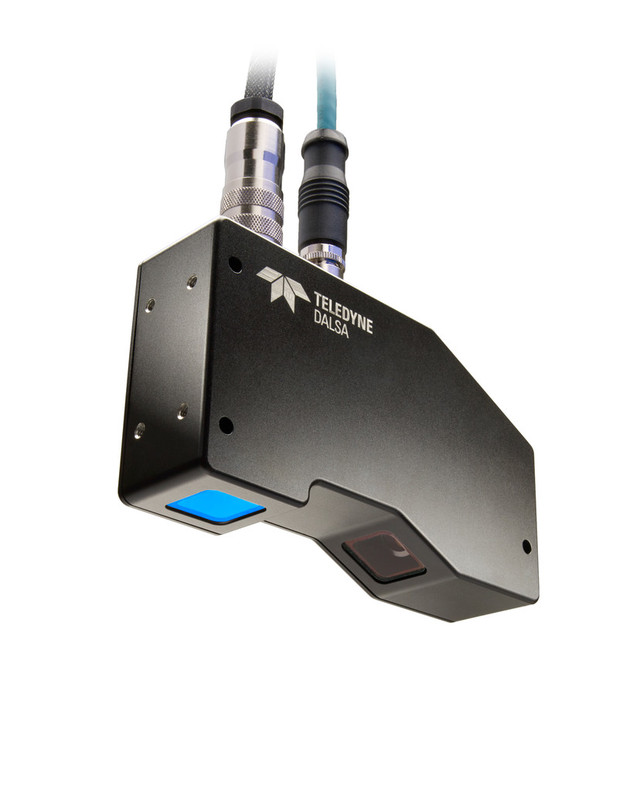

Z-Trak series delivers reliable and repeatable results in varying operating conditions. Z-Trak models handle object widths from 8.5 mm to 1520 mm and height range of 10 mm to 1000 mm. All Z-Trak models are factory calibrated and come with a choice of laser options to suit the surface reflectance.

Z-Trak series features real-time laser line optimization for uniform measurement results, multi-sensor synchronization using generic Gigabit network routers and Power-Over-Ethernet (POE) to simplify setup and configuration. Z-Trak series comes bundled with Teledyne DALSA’s field-proven software packages – Sapera LT, Sapera Processing, and Sherlock 8 3D – at no extra cost. In addition, Z-Trak sensors can operate with 3rd party software packages using either GenICam® or proprietary interfaces.

Powerful. Versatile. Easy to Integrate.

All Z-Trak models are factory calibrated and include powerful features such as FIR-peak detector, optimized optical design, adaptive laser control to optimize integration time, field proven software libraries, and many more.

The overall result? A high-accuracy, high-resolution 3D laser profiler at a low total-cost of ownership.

Open Platform Software Development Tools

GigE Vision compliant, the Z-Trak series supports both Teledyne DALSA vision software as well as off-the-shelf 3rd party 3D image processing packages.

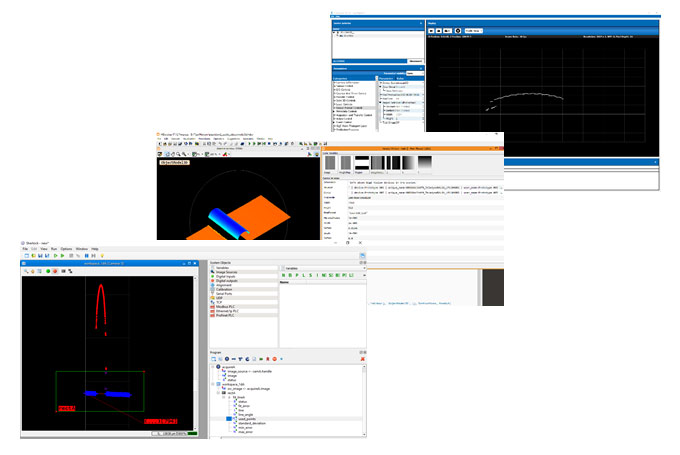

Choose from a wide variety of versatile software to best suit your application. Z-Trak is supported by:

  • Sapera Processing 3D
  • Z-Expert
  • Sherlock 8 3D
  • MVTec Halcon
  • GenICam
Vision Software

Key Markets & Applications


  • Inline metrology
  • Volume metric measurements
  • Robot guidance
  • Gap and flush
  • Surface inspection


  • Chip lead inspection
  • BGA and micro BGA
  • Solder paste inspection
  • Bare PCB
  • Populated PCB

Machine Vision:

  • Parts inspection
  • Embossed OCR
  • Embossed barcode
  • Bead inspection
  • Pick and place
  • Wood and lumber inspection
  • Angular measurements
  • Part identification


How exactly does 3D imaging work?

There are a number of techniques available for 3D imaging. The Z-Trak series of 3D laser profilers uses a laser triangulation technique to deliver high resolution height measurements. Z-Trak emits a laser onto an object of interest; the reflection's position in the sensor's field of view allows the scanner to triangulate the point in space at which the laser hits the object.

The diagram at the left illustrates the terms we use to specify Z-Trak's performance.

Download our 3D Laser Triangulation Tech Primer


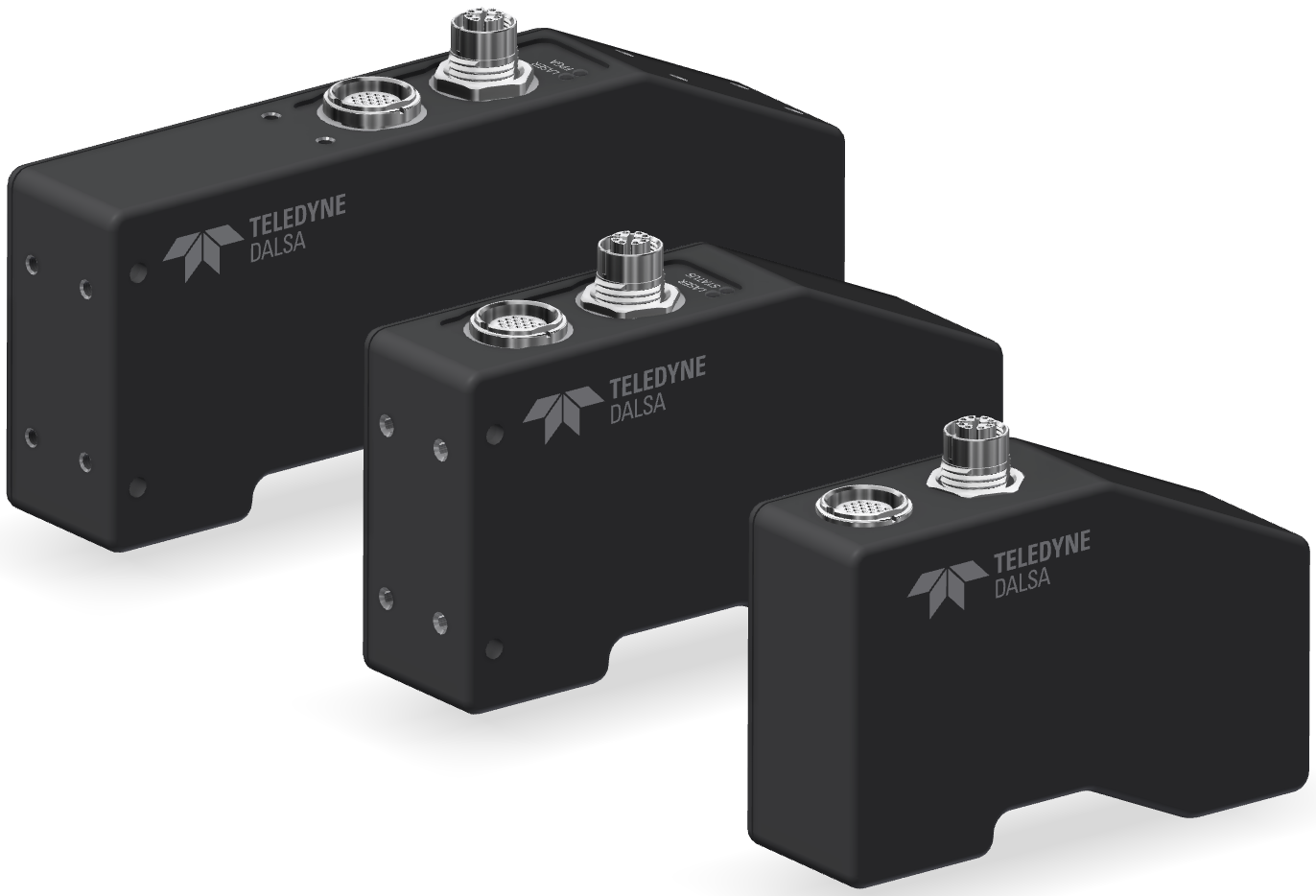

Z-Trak is available in multiple configurations and case styles. Download our datasheet to find out more.

Download Z-Trak Datasheet

Wondering if 3D laser profile inspection can work for you? Finding out is simple.

Our Z-Trak Application Lab is here – A dedicated lab for scanning materials for inspection and learning if 3D laser profiling will provide value.

  1. Send us your samples.
  2. We scan them using our Z-Trak 3D laser profiler.
  3. You get the results.

We are now accepting your sample materials to run through our Z-Trak Lab for free testing.

Tell Me More

Family Specifications1

Supported Interfaces Gigabit Ethernet
Conformity FCC Class B, CE, ROHS, China RoHS, ICE, FDA
Power Requirement +12V to 36VDC +/-10% with surge protection




Document Type
Z-Trak Datasheet PDF
Document Type
Z-Trak Series User Manual PDF
App Notes
Document Type
3D-L-AN0002 - Z-Trak with Halcon PDF
Document Type
3D Laser Triangulation Tech Primer PDF
Product Declarations
Document Type
Z-Trak EMC Declaration of Conformity PDF
Z-Trak Material Composition Product Declaration PDF
3D Models
Document Type
Z-Trak and Mounting Bracket 3D Model ZIP
Document Type
Z-Trak Series FAQ PDF
