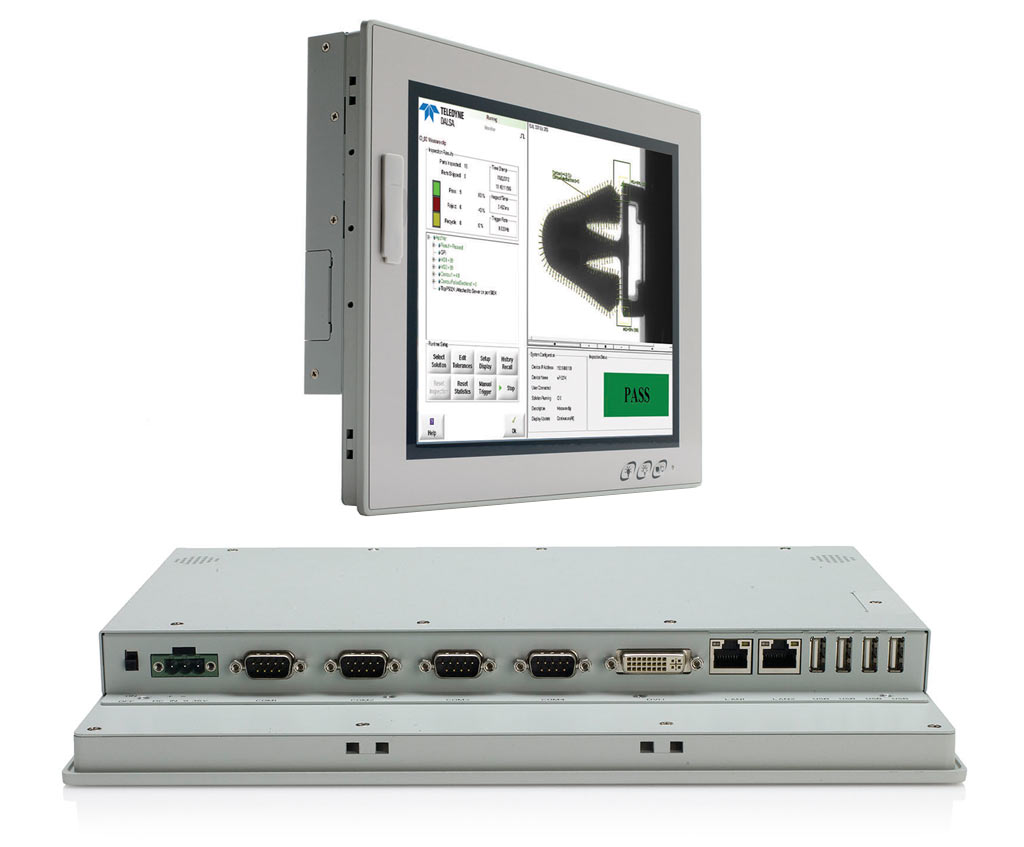

The GEVA-312T is an integrated vision system complete with a 12” touch screen display, 1.6GHz dual core processor and two Gigabit Ethernet camera ports. The slim-line form factor maximizes control panel real estate for PLCs, motions controllers and non-vision related components. The GEVA-312T is a good choice for customers who are looking for a complete system that is low-cost, expandable and applicable for a wide range of vision applications.

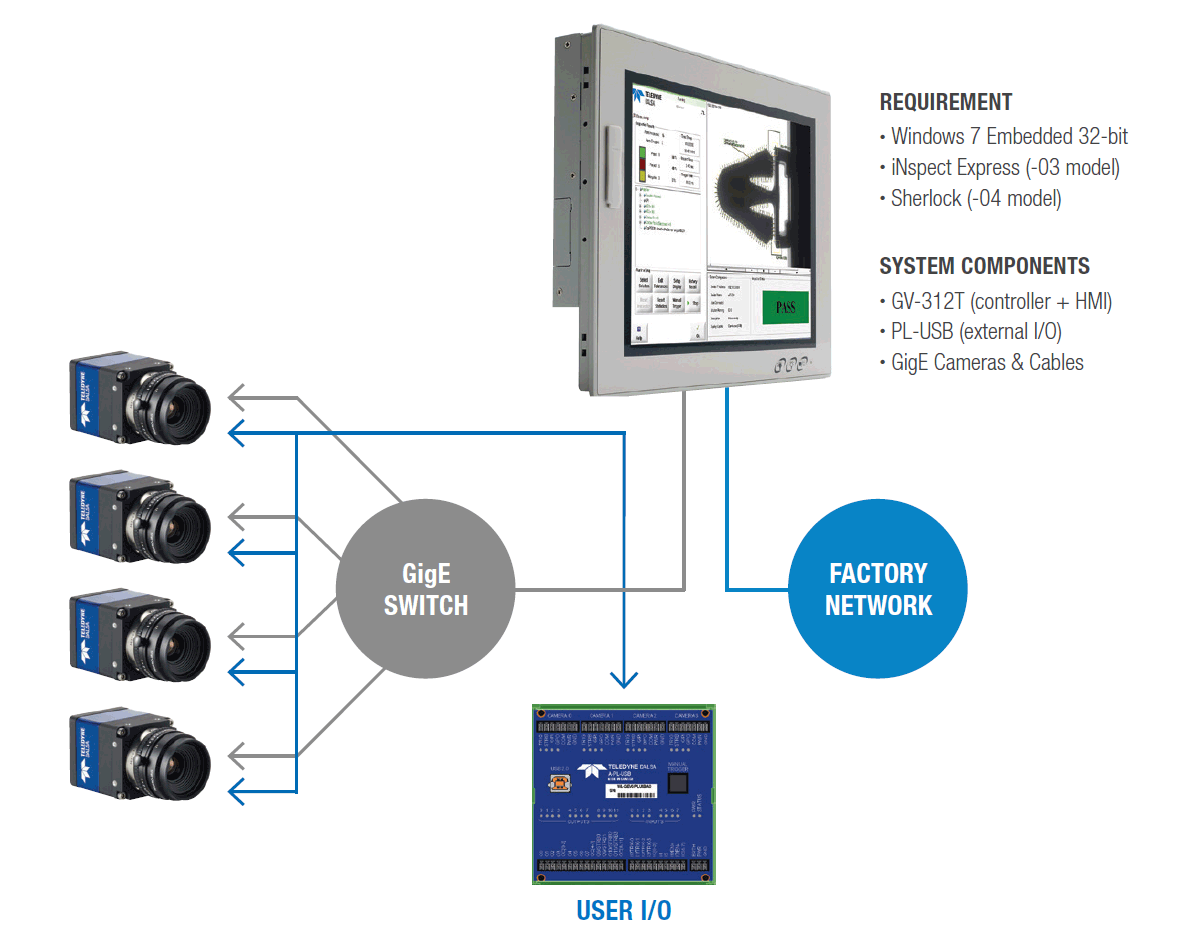

The GEVA-312T is compatible with the full range of Teledyne DALSA Genie cameras. Applications using one or two cameras can connect directly to the Camera/LAN ports on the unit. Additional cameras can be accommodated using standard, low-cost Gigabit Ethernet switches. I/O connections, including camera trigger and light strobes, are interfaced using our standard PL-USB module. This module mounts inside the control panel and connects to one of the GEVA-312T USB ports (multiple PL-USB modules can be installed).
In addition to touch panel control, the front of the unit provides push button display adjustments and a USB port that provides convenient access for removable peripherals such as keyboard/mouse and backup storage.
Our vision system controllers are compatible with a wide variety of line and area scan cameras.
View compatibility listPart Number | GEVA 312T |
Interface | GigE Vision, USB 2.0, RS232 |
Storage Capacity | 32 GB |
Program Capacity | 2 GB |
Processor | 1.6 GHz |
Operating Temperature | -20 — 60 °C |
Display Output | LCD Touch Panel Display |
Power Input | 24V |
Certifications | CE, FCC Class B, IP65 compliance |
Dimensions | 12 x 12 x 12 mm |
Document | Type |
---|---|
GEVA 312T Datasheet |
Document | Type |
---|---|
GEVA 312T User Manual |
Document | Type |
---|---|
GEVA 312T EC/FCC Declaration |
Document | Type |
---|---|
GV312T 3D Model (STEP) | STP |
GV312T Mechanical Drawings | |
PL-USB 3D MODEL (DXF) | OTHER |
PL-USB 3D MODEL (STEP) | STP |
