GEVA 3000 CL adds Camera Link© support to Teledyne DALSA's high-performance industrial controllers, offering excellent cost savings for vision applications such as final inspection of large assemblies. With over six times the processing performance of the entry level GEVA 300 and up to three times the performance of the GEVA 1000, the ruggedized GEVA 3000 provides a robust and highly capable industrial vision system for applications on the factory floor.
GEVA 3000 is equipped with a low power, Gen3 Core i7 processor and high-speed system resources to effectively manage applications.

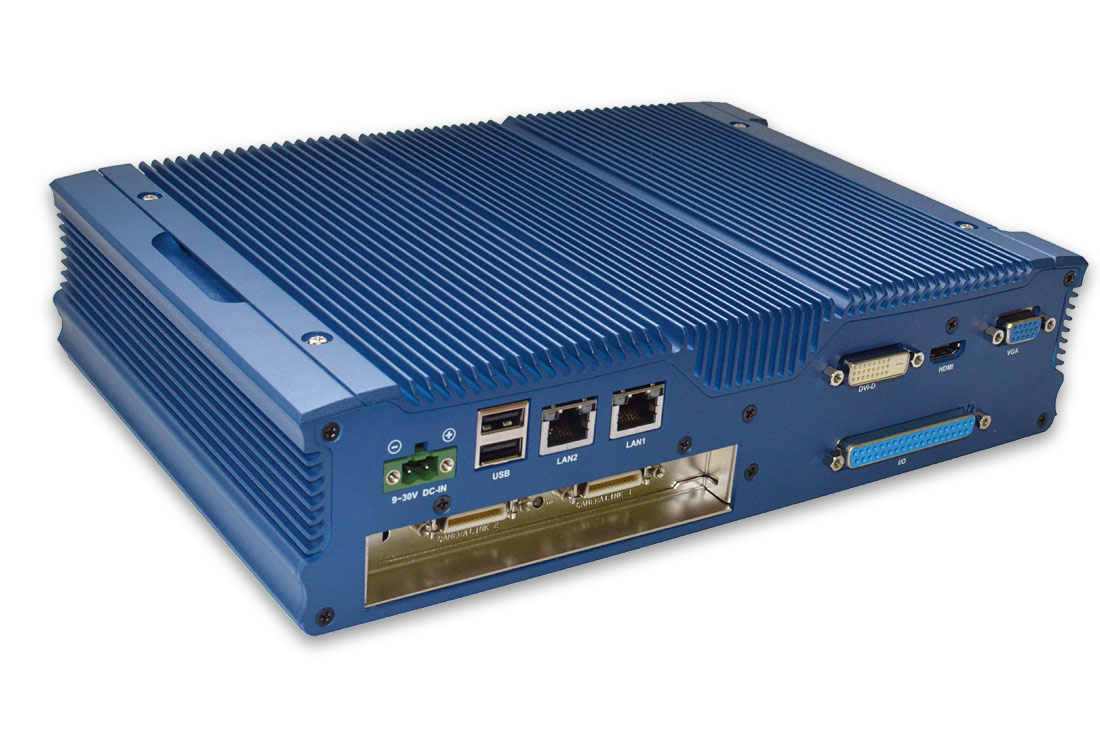

GEVA-3000 supports dual Camera Link Base / single Medium capture using Camera Link© cameras.
GEVA-3000 is equipped with a Gen3 Core i7 processor, paired with high-speed memory resources to tackle the most demanding applications. As well, its fanless design reduces downtime and maintenance costs associated with deploying standard PC solutions in harsh industrial environments.

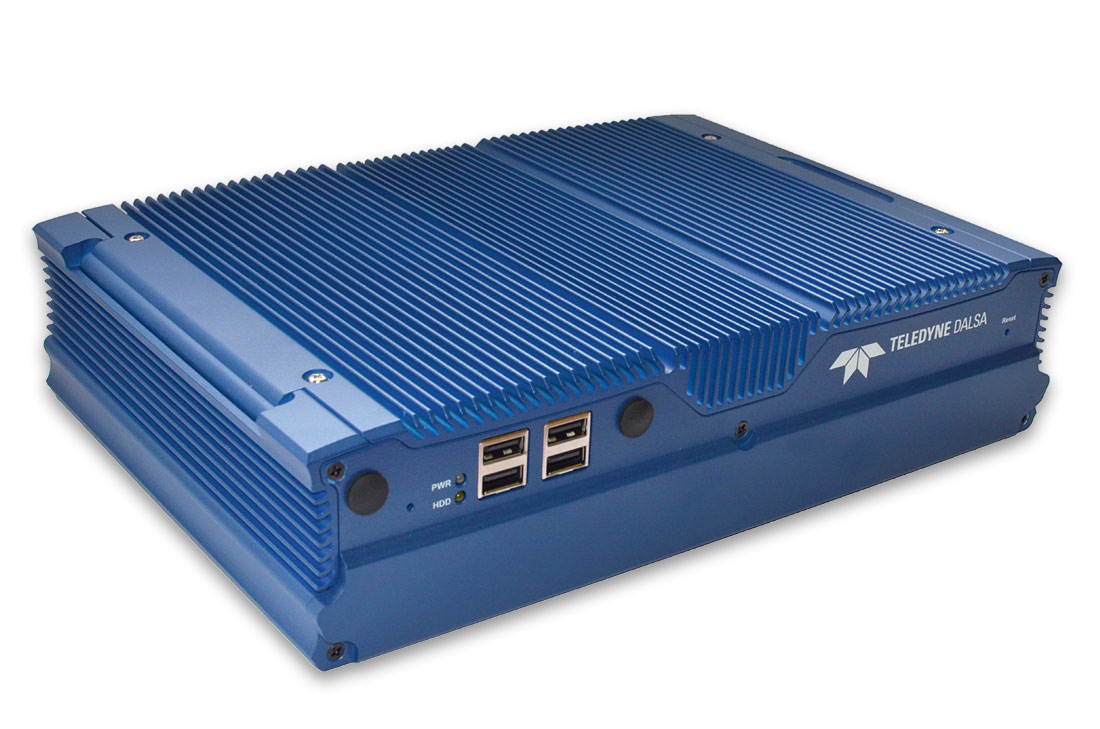

In addition to Ethernet, GEVA 3000 provides standard external interfaces for system integration, including display, 6 USB ports and a serial port. Camera triggering, I/O and lighting control is supported using integrated factory I/O.
Vision solutions on GEVA 3000 are set up using Teledyne DALSA’s iNspect Express or Sherlock application software. Both packages offer a full complement of tools, together with interfacing and control options for both users and equipment.For performance migration, applications built on other Teledyne DALSA equipment with the same camera setup will also run on GEVA.
Our vision system controllers are compatible with a wide variety of line and area scan cameras.
View compatibility listPart Number | GEVA 3000 |
Interface | Camera Link, USB 2.0, RS232 |
Interface Details | 2 Camera Link camera connectors; support 2 base model or one medium model cameras |
Software | Sherlock or iNspect Express |
Storage Capacity | 60 GB |
Program Capacity | 8 GB |
Processor | 3.2 GHz Gen3 Core i7 |
Operating Temperature | 0 — 45 °C |
Display Output | VGA to QXGA (2048x1536/75Hz) |
Power Input | 24V (60W) via screw terminal connector |
Serial Communication | USB 2.0 (x6), RS232 (x2) |
I/O Details | 8 In/4 Out opto-isolated industrial I/O plus 2 TTL strobe outputs |
Cooling | Fanless via passive heatsink |
Mounting Options | Panel mount |
Certifications | CE, FCC Class A, RoHS |
Dimensions | 277 x 89 x 194 mm |
Document | Type |
---|---|
GEVA 3000 CL Datasheet |
Document | Type |
---|---|
GEVA 3000 CL User Manual |
Document | Type |
---|---|
GEVA 3000CL EC/FCC Declaration |
Document | Type |
---|---|
GV3000CL 3D MODEL (STEP) | STP |
GV3000CL Mechanical Drawings |
