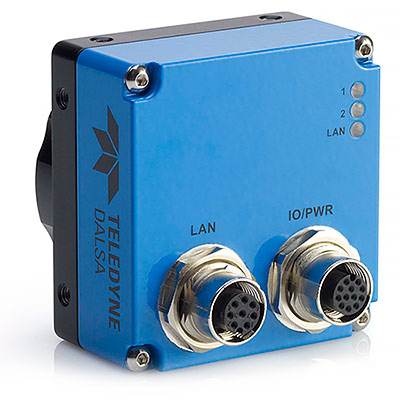

BOA Spot

Add a spot of vision

Increase product quality, lower production costs.

Vision system performance at vision sensor pricing.

Introducing BOA Spot: simple, affordable, and reliable performance for quality inspection. No matter what you create on your production line, BOA Spot can help you improve quality, reduce scrap, and increase throughput. It has never been so easy for you to expand your automation with vision.

Everything you expect in a vision system for less.

With integrated LED lighting, lens cover, easy-to-use software, and easy integration with factory systems, BOA Spot instantly delivers high value capabilities at a low cost of ownership. And its robust build quality with IP67 rating means Spot is at home in harsh industrial/wash down conditions.

Well-equipped with popular vision tools.

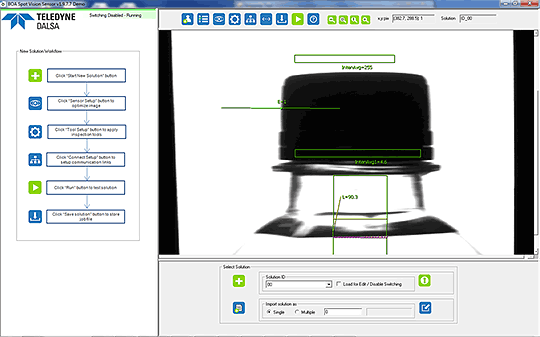

BOA Spot's embedded vision tools for part locating, feature finding, counting, and measuring applications offer a simple graphic user interface and can be combined and used numerous times to solve simple or complex inspection tasks.

For automated inspection and identification applications.

BOA Spot's embedded vision tools, exposed through a simple point and click interface, can be quickly deployed for numerous automated inspection and identification tasks. Whether used for manufacturing, error-proofing, or tracking products from cradle to grave, BOA Spot vision sensors offer flexibility and a big return on a small investment.

  Inspection Identification
Applications Spot SL Spot EL Spot IDS Spot IDE
Match X X+   X
Count X X X X
Measure X X+
Detect X X+   X
Guide   X   X
1D/2D     X X+
OCR       X
  BOA Spot SL/EL Datasheet BOA Spot IDS/IDE Datasheet



Features

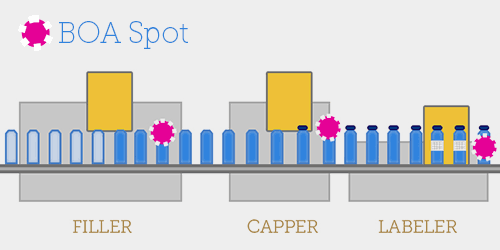

100% Automatic Inspection

Low cost of ownership allows you to distribute processing across the production line. More points of inspection = better failure analysis and faster, easier corrective actions.

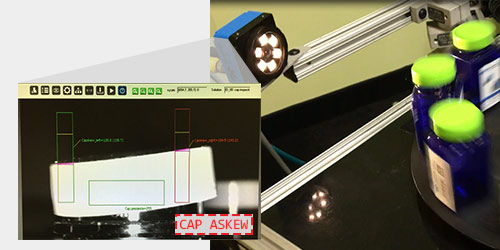

No Software to Install

BOA Spot's embedded vision tools offer powerful, flexible inspection with a simple interface.

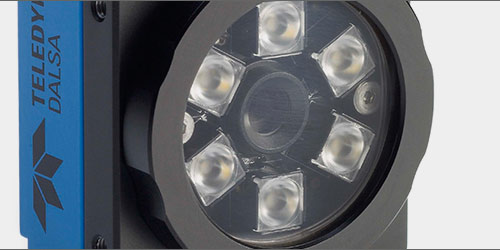

Integrated lighting

LED ring light with multiple available colors makes illumination easy.

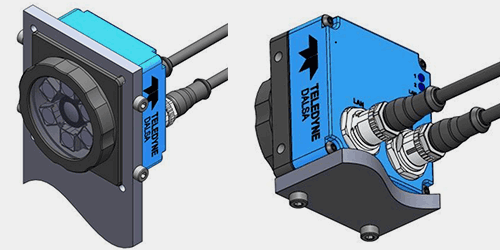

Flexible Mounting Options

Thru- and surface-mounting options and a slim form factor let BOA Spot fit into tight spaces.

Applications

Measure
Verify
Count/Sort
Presence/Absence
2D Matrix
1D Barcode
OCR

Photos

Product Tour

Family Specifications

Camera Type Area Scan
Sensor Technology CMOS
Supported Interfaces Ethernet 100Base-T, RS232
Spectrum Capability Visible (400-700 nm)

Camera Models

Model Resolution Spectrum Interface Pixel Size Standard
BOA Spot 0640M-SL
Part number: 0640M-SL
640 x 480 Mono RS232, Gigabit Ethernet 3.75 µm 45 fps
BOA Spot 0640M-EL
Part number: 0640M-EL
640 x 480 Mono RS232, Gigabit Ethernet 3.75 µm 45 fps
BOA Spot 0640M-IDS
Part number: 0640M-IDS
640 x 480 Mono RS232, Gigabit Ethernet 3.75 µm 45 fps
BOA Spot 0640M-IDE
Part number: 0640M-IDE
640 x 480 Mono RS232, Gigabit Ethernet 3.75 µm 45 fps
BOA Spot 0640C-SL
Part number: 0640C-SL
640 x 480 Color RS232, Gigabit Ethernet 3.75 µm 30 fps
BOA Spot 0640C-EL
Part number: 0640C-EL
640 x 480 Color RS232, Gigabit Ethernet 3.75 µm 30 fps
BOA Spot 1280M-SL
Part number: 1280M-SL
1280 x 960 Mono RS232, Gigabit Ethernet 3.75 µm 30 fps
BOA Spot 1280M-EL
Part number: 1280M-EL
1280 x 960 Mono RS232, Gigabit Ethernet 3.75 µm 30 fps
BOA Spot 1280M-IDS
Part number: 1280M-IDS
1280 x 960 Mono RS232, Gigabit Ethernet 3.75 µm 30 fps
BOA Spot 1280M-IDE
Part number: 1280M-IDE
1280 x 960 Mono RS232, Gigabit Ethernet 3.75 µm 30 fps
