Piranha XL

Unprecedented Speed and Responsivity. Even in light starved conditions.

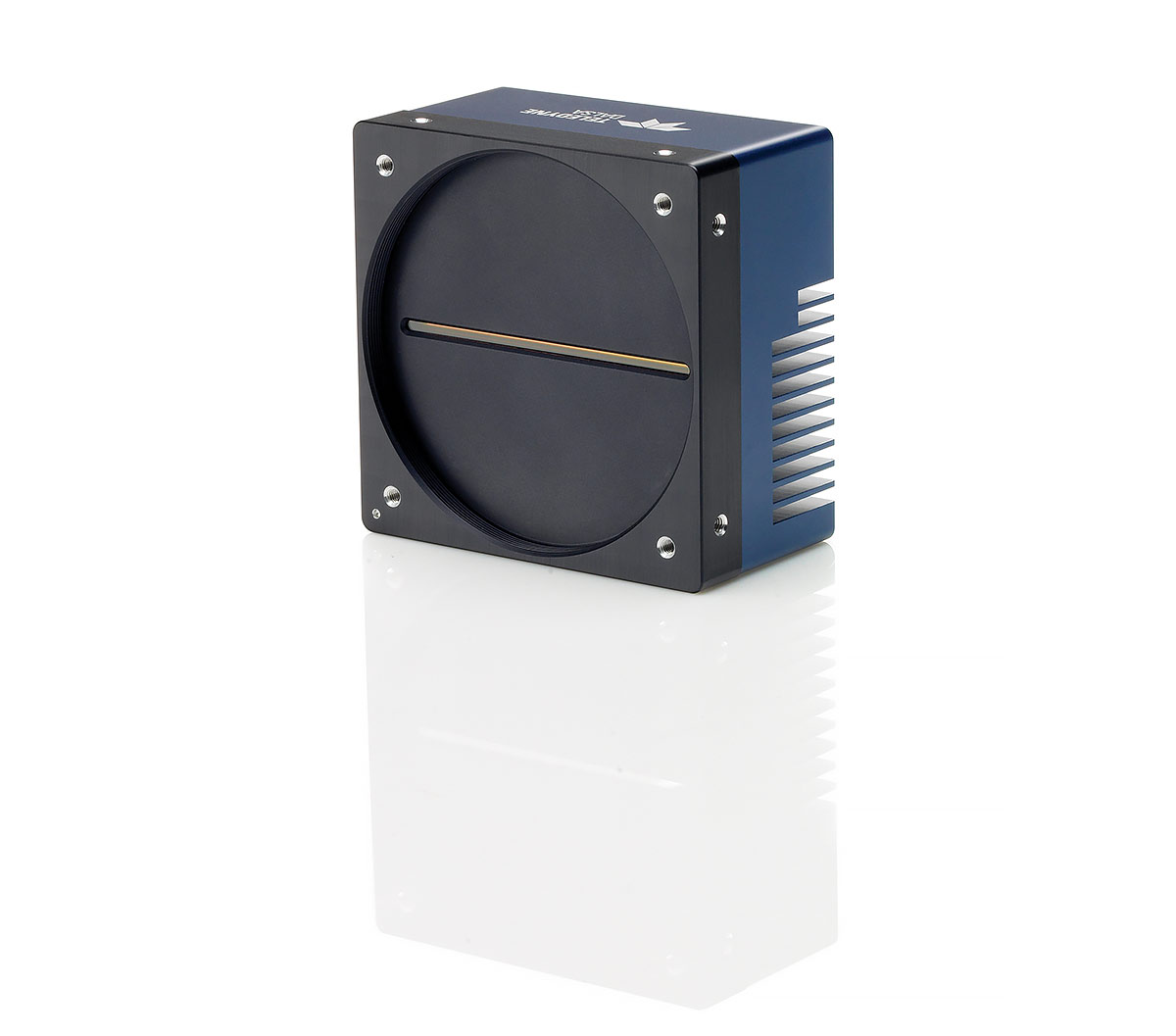

Piranha™ XL: Multi-line CMOS TDI delivers breakthrough performance

Teledyne DALSA presents our latest multi-line CMOS camera, delivering unprecedented speed and responsivity with low noise. Exposure control allows for seamless variable speed imaging down to stopped conditions on select models.


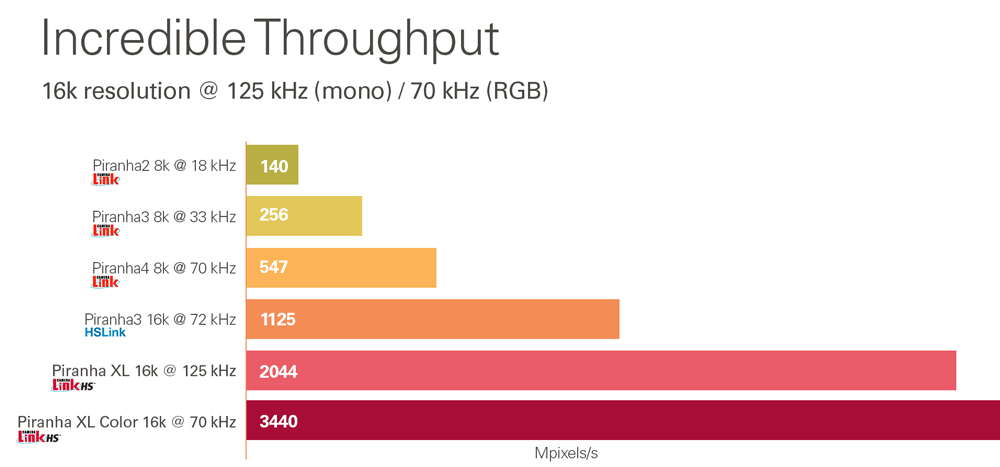

Delivering unprecedented speed and responsivity with low noise

The camera uses the Camera Link HS interface based on Teledyne DALSA's field-proven HS Link technology. It delivers very high data throughput with long transmission distances and cable flexibility. The camera, combined with the XTIUM Camera Link HS frame grabber, offers a complete solution for the next generation Automatic Optical Inspection.

How Digital Summing Boosts SNR
and how that helps you

Mulitline CMOS combines mulitple low-noise exposures to achieve high sensitivity AND high full-well, resulting in an incredible signal-to-noise ratio and better images

Gain boosts signal but also increases noise by the same factor; signal is limited by full-well capacity which can reduce SNR

Digital summing gathers more photons (signal) and only increases noise by a factor of  √# of stages. More signal, less noise, no full-well limit.

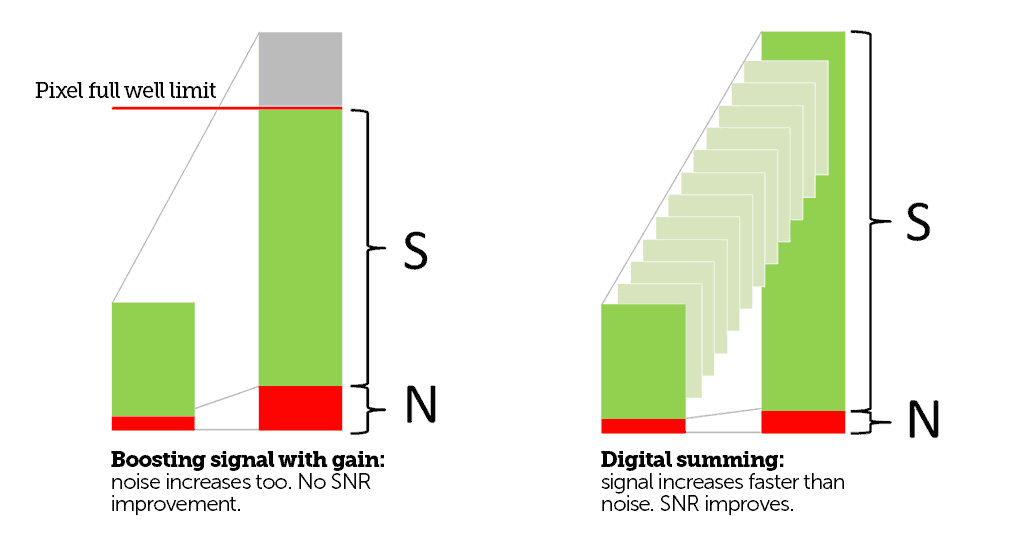

Boosting signal with gain: noise increases too, no SNR improvement. Digital summing: signal increases faster than noise, SNR improves.

Family Specifications

Camera Type TDI Line Scan
Sensor Technology CMOS
Supported Interfaces Camera Link HS
Spectrum Capability Visible (400-700 nm)

Camera Models

Model Resolution Spectrum Interface Pixel Size Max Line Rate
Piranha XL Color 8k, 70 kHz
Part number: PX-HC-08K07T
8160 x 12 Color Camera Link HS 5 µm 70 kHz

  • 8 k
  • 8 bit
  • 0—60 °C
  • 97 x 97 x 61 mm
  • 680 g
Piranha XL XDR 16k, 125 kHz
Part number: PX-HM-16K12X
16352 x 12 Mono Camera Link HS 5 µm 125 kHz

  • 16 k
  • 8 bit, 12 bit
  • 0—60 °C
  • 1200
  • 97 x 97 x 61 mm
  • 685 g
Piranha XL XDR 16k, 60 kHz
Part number: PX-HM-16K06X
16352 x 12 Mono Camera Link HS 5 µm 60 kHz

  • 16 k
  • 8 bit, 12 bit
  • 0—60 °C
  • 1200
  • 97 x 97 x 61 mm
  • 685 g
Piranha XL Color 16k, 70 kHz
Part number: PX-HC-16K07T
16352 x 12 Color Camera Link HS 5 µm 70 kHz

  • 16 k
  • 8 bit
  • 0—60 °C
  • 97 x 97 x 78 mm
  • 1080 g
Piranha XL Color 16k, 40 kHz
Part number: PX-HC-16K04T
16352 x 12 Color Camera Link HS 5 µm 40 kHz

  • 16 k
  • 8 bit
  • 0—60 °C
  • 97 x 97 x 78 mm
  • 790 g

Videos

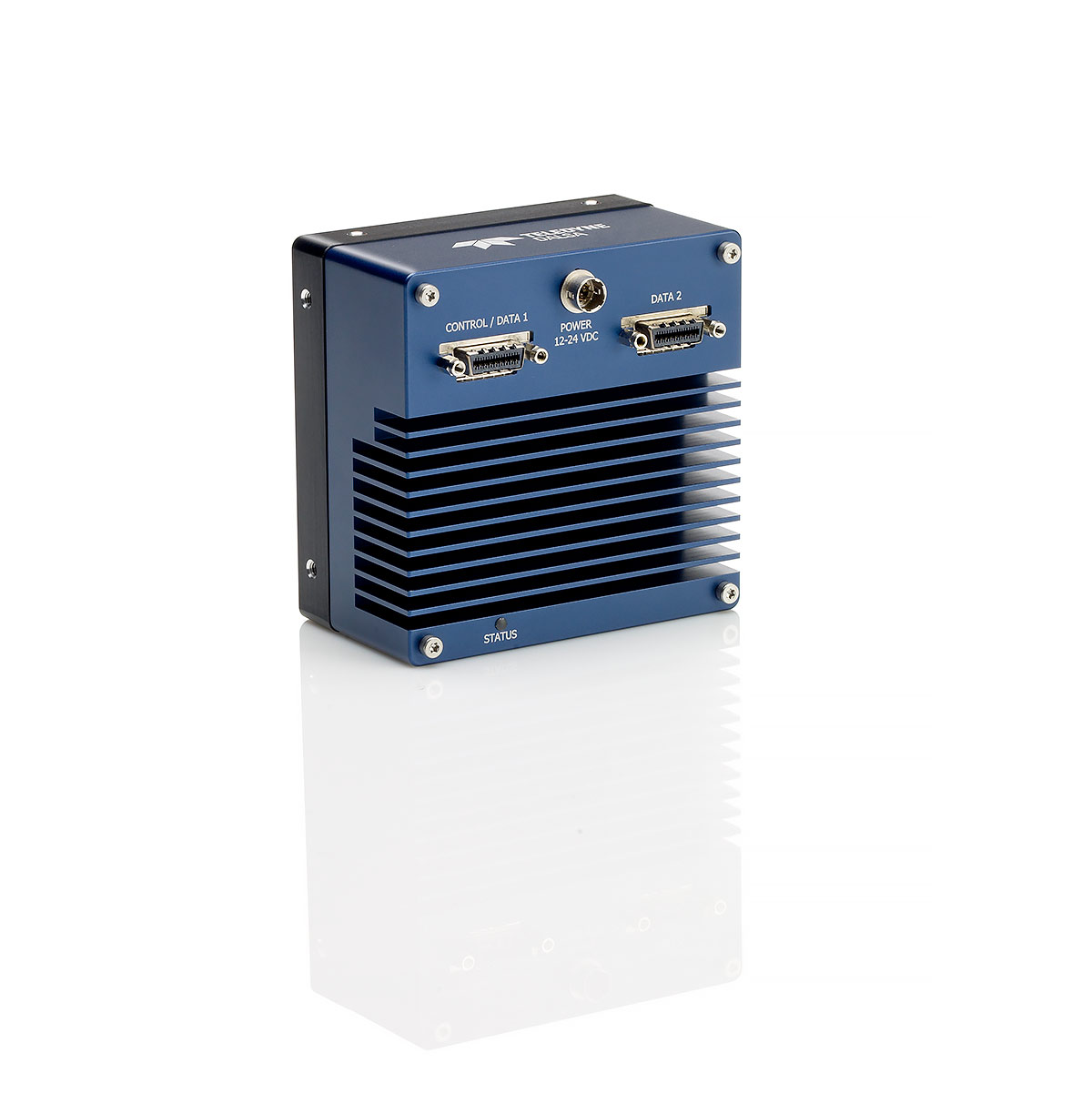

Photos

Downloads

Datasheets
Document Type
Piranha XL XDR Datasheet PDF
Manuals
Document Type
Piranha XL Color Camera User Manual Teledyne DALSA PDF
Piranha XL XDR Camera User Manual PDF
RoHS/Composition Declarations
Document Type
Piranha XL Material Composition Product Declaration PDF
3D Models
Document Type
Piranha XL 3D Model ZIP
