Xtium2 CLHS PX8

Camera Link HS

The Next Generation of Frame Grabbers

Building on the field proven Teledyne DALSA’s Xtium family of frame grabbers, the Xtium™ 2 CLHS PX8 features CameraLink HS standard on the PCI Express™ Gen 3.0 platform. The Xtium2-CLHS supports Active Optical Cable (AOC) and industry standard CX4 cables. This single cable, single slot solution supports up to 7-CLHS lanes, each operating at 10-Gbs, to acquire images at 7.0GB/s and transfer them using PCIe x8 slots at a sustained speed above 6.8GB/s to the host memory.

Built to Support the Next Generation of Machine Vision Cameras

The Linea ML brings leading edge CMOS technology that is faster than ever, with affordable multiline architecture that enables the newest, most powerful inspection techniques including HDR, color and multispectral analysis, and multi-field imaging (single-pass bright/darkfield). With a native fiber optic interface for easy, low-cost long distance cabling, Linea ML opens new horizons in inspection.

Together, Xtium2 and Linea ML enable the newest and most demanding vision applications.

Linea ML Product Page

Free acquisition and control software libraries

Xtium series of frame grabber are fully supported by Sapera LT. Sapera LT is an image acquisition and control software development toolkit (SDK) for Teledyne DALSA'S cameras and frame grabbers. Hardware independent by nature, Sapera LT offers a rich development ecosystem for machine vision OEMs and system integrators. Sapera LT supports image acquisition from cameras and frame grabbers based on standards including GigE Vision™, Camera Link® and Camera Link HS™.



Fully supported by Sapera™ vision SDK

When combined with a compatible Teledyne DALSA frame grabber, standard Sapera Processing run-time licenses are offered at no additional charge. Sapera Processing is at the heart of Sapera Vision Software, delivering a suite of image processing and analysis functions. These functions include over 400 image processing primitives, barcode tools, pattern matching tools (both area-based and edge-based), OCR, color and blob analysis, measurement, and calibration tools for perspective and lens correction. The standard tools run-time license includes access to image processing functions, area based (normalized correlation based) template matching tools, blob analysis, and lens correction tools.

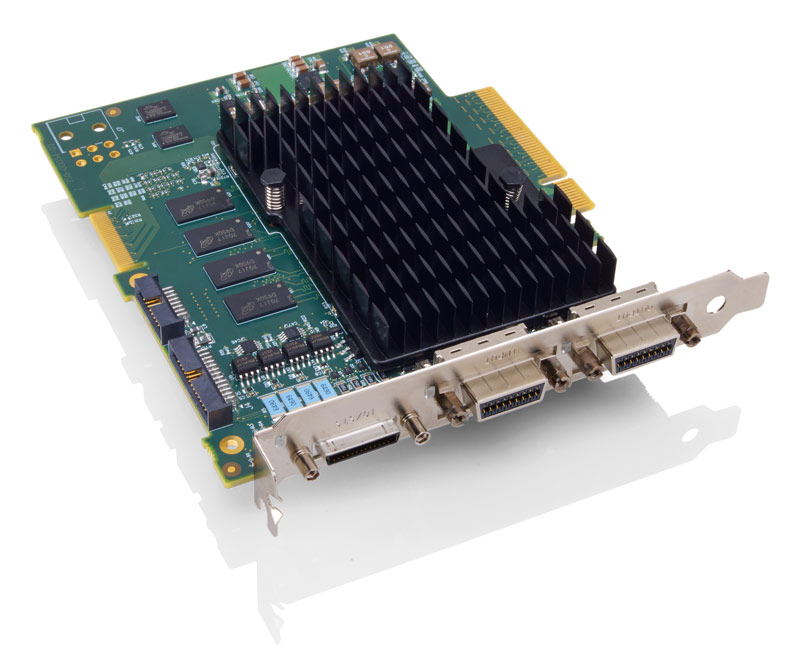

Photos

Specifications

Part Number OR-A8S0-PX870
Board Type PCIe
Host Bus Half-length PCI Express Gen 3.0 x8
Board Interface Camera Link HS
Connectors

1 x CX4 for image acquisition, Active Optical Cable (AOC) ready
1 x CX4 for Data-Forwarding
1 x DH60-27P for Board Trigger, Strobe and General I/Os (main bracket)
1 x 6-pin connector Multi-Board-Sync

Camera Format CLHS 1 to 7 lane configurations, 10Gb/sec; X-Protocol utilises 97% of available bandwidth for image transfers, Max Data rate: 7GB/sec
Pixel Clock Mono8, Mono10, Mono12 and Mono16
Camera Control Comprehensive event notification, Timing control logic for camera trigger, line scan direction and strobe signals, Camera control through GenCP/SFNC, Bit-Error detection and correction
Frame Buffer 512 MB image buffer
Features Data Forwarding across multiple boards and PC for distributed image processing, Multi-Board Synchronization: grab seamless image from multiple camera and multiple frame grabbers in a PC, AOC cables deliver long cable lengths at maximum data rate, Image Cropping, User programmable 3x3 filter2, Horizontal and vertical image flip, Delivers Trigger-To-Image Reliability Framework for powerful non-intrusive diagnostics
Software Sapera LT SDK, Sapera Vision Software
OS Support Windows 7 (32-bit), Windows 7 (64-bit), Windows 8 (32-bit), Windows 8 (64-bit), Windows 10 (32-bit), Windows 10 (64-bit), Linux (32-bit), Linux (64-bit), WoW64

Downloads

Datasheets
Document Type
Xtium2 CLHS PX8 Datasheet PDF
Questions? Quotes? Contact sales.
