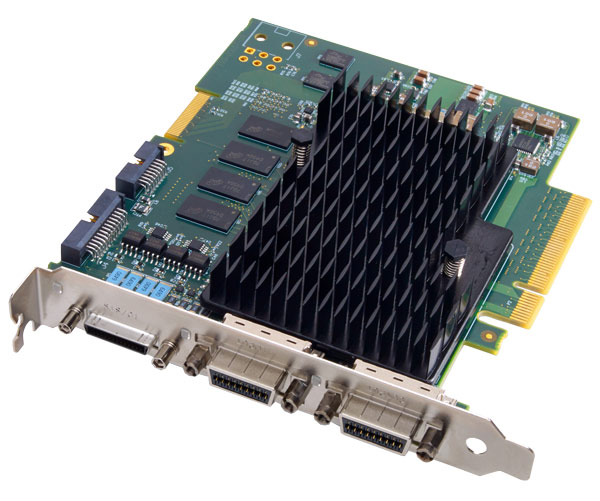

The Xtium™ 2 CLHS PX8 features CameraLink HS standard on the PCI Express™ Gen 3.0 platform. This single cable, single slot solution supports up to 4-CLHS lanes, each operating at 10.3 Gbits/s, to acquire images at up to 5.0 GBytes/s and transfer them using PCIe x8 slots to the host memory. The Xtium2-CLHS supports Active Optical Cable (AOC) to extend the cable length beyond 100 meters. Built-in data-forwarding and multi-board sync capabilities deliver a platform for distributed processing for high-speed, computational intensive machine vision applications.
The Linea ML brings leading edge CMOS technology that is faster than ever, with affordable multiline architecture that enables the newest, most powerful inspection techniques including HDR, color and multispectral analysis, and multi-field imaging (single-pass bright/darkfield). With a native fiber optic interface for easy, low-cost long distance cabling, Linea ML opens new horizons in inspection.
Together, Xtium2 and Linea ML enable the newest and most demanding vision applications.
The Xtium and Xtium2 series of frame grabbers are fully supported by Sapera LT SDK. Sapera LT SDK is an image acquisition and control software development toolkit (SDK) for Teledyne DALSA'S cameras and frame grabbers. Hardware independent by nature, Sapera LT offers a rich development ecosystem for machine vision OEMs and system integrators. Sapera LT SDK supports image acquisition from cameras and frame grabbers based on standards including GigE Vision™, Camera Link®, CoaXPress®, and Camera Link HS™.
When combined with a compatible Teledyne DALSA frame grabber, standard Sapera Processing run-time licenses are offered at no additional charge. Sapera Processing is at the heart of Sapera Vision Software, delivering a suite of image processing and analysis functions. These functions include over 400 image processing primitives, barcode tools, pattern matching tools (both area-based and edge-based), OCR, color and blob analysis, measurement, and calibration tools for perspective and lens correction. The standard tools run-time license includes access to image processing functions, area based (normalized correlation based) template matching tools, blob analysis, and lens correction tools.
| Part Number | OR-A8S0-PX840 |
| Board Type | PCIe |
| Host Bus | Half-length PCI Express Gen 3.0 x8 |
| Board Interface | Camera Link HS |
| Connectors | 1 x CX4 for image acquisition, Active Optical Cable (AOC) ready |
| Camera Format | CLHS 1 to 4 lane configurations, 10.3 Gbits/sec; X-Protocol utilises 97% of available bandwidth for image transfers, Max Data rate: 5.0 GBytes/sec |
| Pixel Clock | Mono8, Mono10, Mono12 and Mono16 |
| Camera Control | Comprehensive event notification, Timing control logic for camera trigger, line scan direction and strobe signals, Camera control through GenCP/SFNC, Bit-Error detection and correction |
| Frame Buffer | 512 MB image buffer |
| Features | Board Sync Data Forwarding across multiple boards and PC for distributed image processing, Multi-Board Synchronization: grab seamless image from multiple cameras and multiple frame grabbers in a PC, AOC cables deliver long cable lengths at maximum data rate, Image Cropping, Horizontal and vertical image flip, Delivers Trigger-To-Image Reliability Framework for powerful non-intrusive diagnostics |
| Software | Sapera LT SDK, Sapera Vision Software, NB: Contact Teledyne DALSA sales for Linux availability |
| OS Support | Windows 7 (32-bit)*, Windows 7 (64-bit)*, Windows 8 (32-bit), Windows 8 (64-bit), Windows 10 (32-bit), Windows 10 (64-bit), Linux (64-bit), WoW64 |
* Contact DALSA sales for more details
