Xtium-CLHS PX4

Camera Link HS

Advanced CLHS Acquisition and Processing

Building on the field proven capability of Teledyne DALSA’s Xcelera frame grabber series, the Xtium™-CLHS PX4 is based on AIA’s CameraLink HS standard and uses PCI Express™ Gen 2.0 expansion bus to deliver high speed image acquisition and image transfer to the host memory. Xtium-CLHS uses industry standard CX4 cable to delivery up to 2.1 GB/s of image acquisition over a single cable to go beyond 15m and host transfer speeds of up to 1.7GB/sec - all in a compact, half-length, single slot solution.


Great features to make your job easier

The Xtium-CLHS features high-performance on-board, Data Transfer Engine (DTE) to deliver maximum bandwidth without the need for specialized motherboards or chipsets. By enabling maximum sustained throughput and ready-to-use image data, the Xtium-CLHS PX4 minimizes CPU usage and improves processing times for host applications. In addition, the Xtium series has been engineered with enhanced memory architecture to meet the ever-increasing image resolution and faster frame rates of today’s camera technology. And all Xtium-CLHS frame grabbers are built with Teledyne DALSA's Trigger to Image Reliability framework, which controls and monitors the entire process from trigger through image capture and transfer to host memory and helps protect you from data loss.

Free acquisition and control software libraries

Xtium series of frame grabber are fully supported by Sapera LT. Sapera LT is an image acquisition and control software development toolkit (SDK) for Teledyne DALSA'S cameras and frame grabbers. Hardware independent by nature, Sapera LT offers a rich development ecosystem for machine vision OEMs and system integrators. Sapera LT supports image acquisition from cameras and frame grabbers based on standards including GigE Vision™, Camera Link® and Camera Link HS™.



Fully supported by Sapera™ vision SDK

When combined with a compatible Teledyne DALSA frame grabber, standard Sapera Processing run-time licenses are offered at no additional charge. Sapera Processing is at the heart of Sapera Vision Software, delivering a suite of image processing and analysis functions. These functions include over 400 image processing primitives, barcode tools, pattern matching tools (both area-based and edge-based), OCR, color and blob analysis, measurement, and calibration tools for perspective and lens correction. The standard tools run-time license includes access to image processing functions, area based (normalized correlation based) template matching tools, blob analysis, and lens correction tools.

Product Tour

Specifications

Part Number OR-Y4S0-XPX70
Board Type PCIe
Board Interface Camera Link HS
Host Bus PCIe Gen2 x4

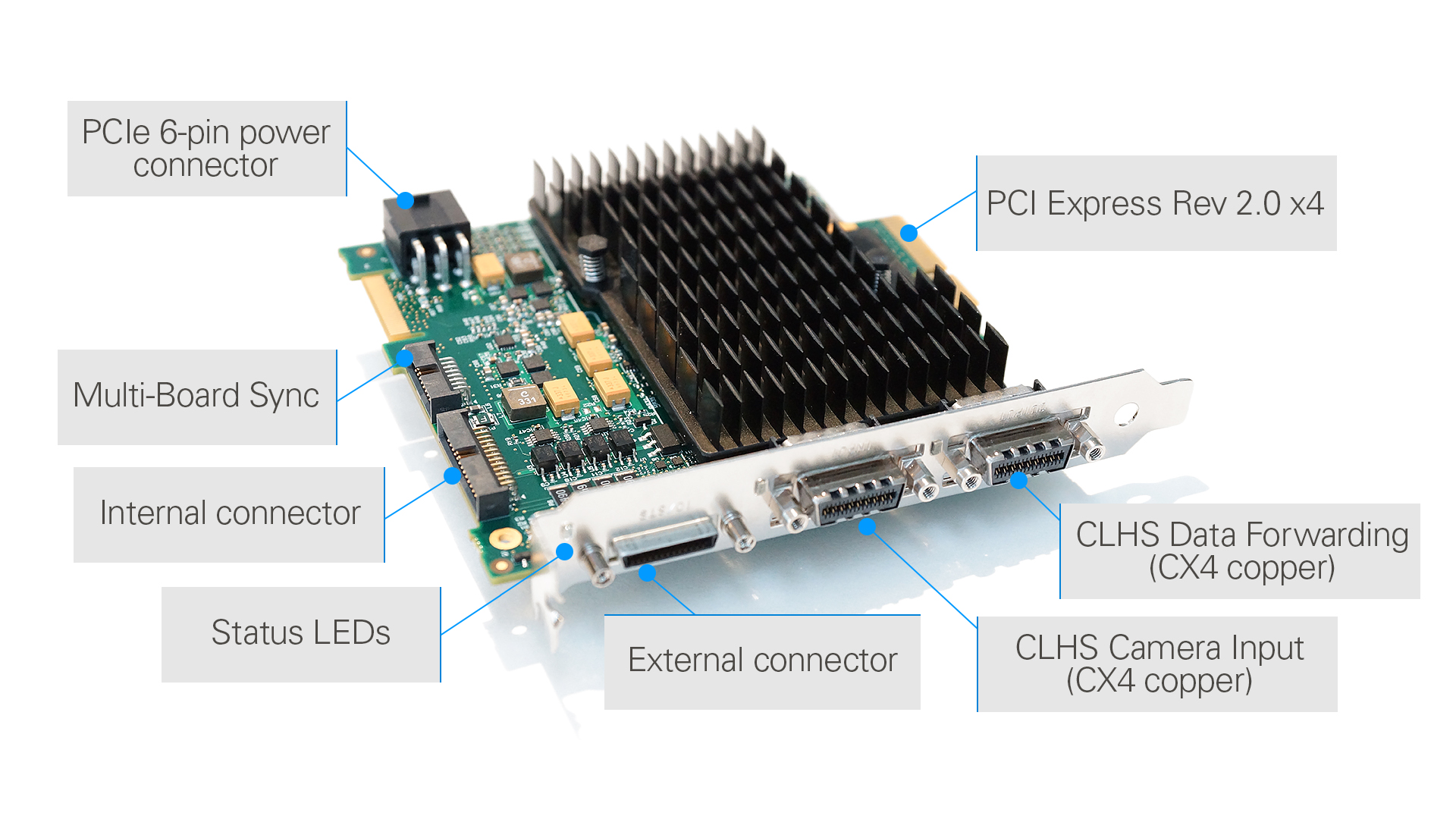

Connectors

Data Input: 1 x CX4 thumbscrew
Data Forward: 1 x CX4 thumbscrew
Controls:

  • 1xDH60-27P (main bracket) for external Trigger input, strobe output, Quadrature Encoder input and General I/Os
  • 1x26-pin shrouded header
  • 1xOnboard 16-pin shrouded connector:  For multi-board Board Sync
Camera Format CLHS Rev 1.0 1, 4, and 7 lane configurations
Pixel Clock N/A
Transmission Rate 3.25Gb/s and 5.0Gb/s
Bits per Pixel Mono8, Mono10, Mono12, and Mono16
GPIO 4-opto in (selectable threshold)(2-shared with ext. trig in); 8-output TTL(1-shared with strobe out)
Camera Control External Trigger input, Strobe out, Quadrature Encoder, Mulit-board Sync.
Frame Buffer 1024 MB
Features Data Forwarding, Board Sync Lookup table, user programmable 3x3 filter, Active Optical Cable (AOC) fiber cables ready
Software Sapera LT SDK, Sapera Vision Software
OS Support Windows 7 (32-bit), Windows 7 (64-bit), Windows 8 (32-bit), Windows 8 (64-bit), Windows 10 (32-bit), Windows 10 (64-bit), Linux (32-bit), Linux (64-bit), WoW64

Downloads

Datasheets
Document Type
Xtium-CLHS PX4 Datasheet PDF
Manuals
Document Type
Xtium-CLHS PX4 User Manual PDF
