The Linea ML brings leading edge CMOS technology that is faster than ever, with affordable multiline architecture that enables the newest, most powerful inspection techniques including HDR, color and multispectral analysis, and multi-field imaging (single-pass bright/darkfield). With a native fiber optic interface for easy, low-cost long cabling, the Linea ML opens new horizons in inspection.
|Original Linea||Linea ML|
At 16k resolution
At 16k resolution
The Linea ML was thoughtfully designed to enable economical variations in functionality, like HDR, and multiple spectral bands—color, color plus mono, color plus NIR, and multi-field.
Maximum line rate is 300 kHz aggregate: 300 kHz in mono, 3 x 100 kHz in RGB, or 4 x 75 kHz in RGB+NIR.
The Linea ML 8k multispectral provides spectrally independent RGB and NIR outputs with minimal spectral crosstalk. This makes it uniquely capable of handling some of the most challenging inspection applications by accurately detecting defects both on and beneath the surface of a wide variety of materials and products. For inspection applications such as banknotes and other high security prints, the Linea ML 8k multispectral accurately detects security inks printed on the paper that reflect near infrared (NIR) light. In other applications like semiconductor wafer and printed circuit board (PCB) inspection, the camera easily reveals defects below the surface penetrated by the NIR light.

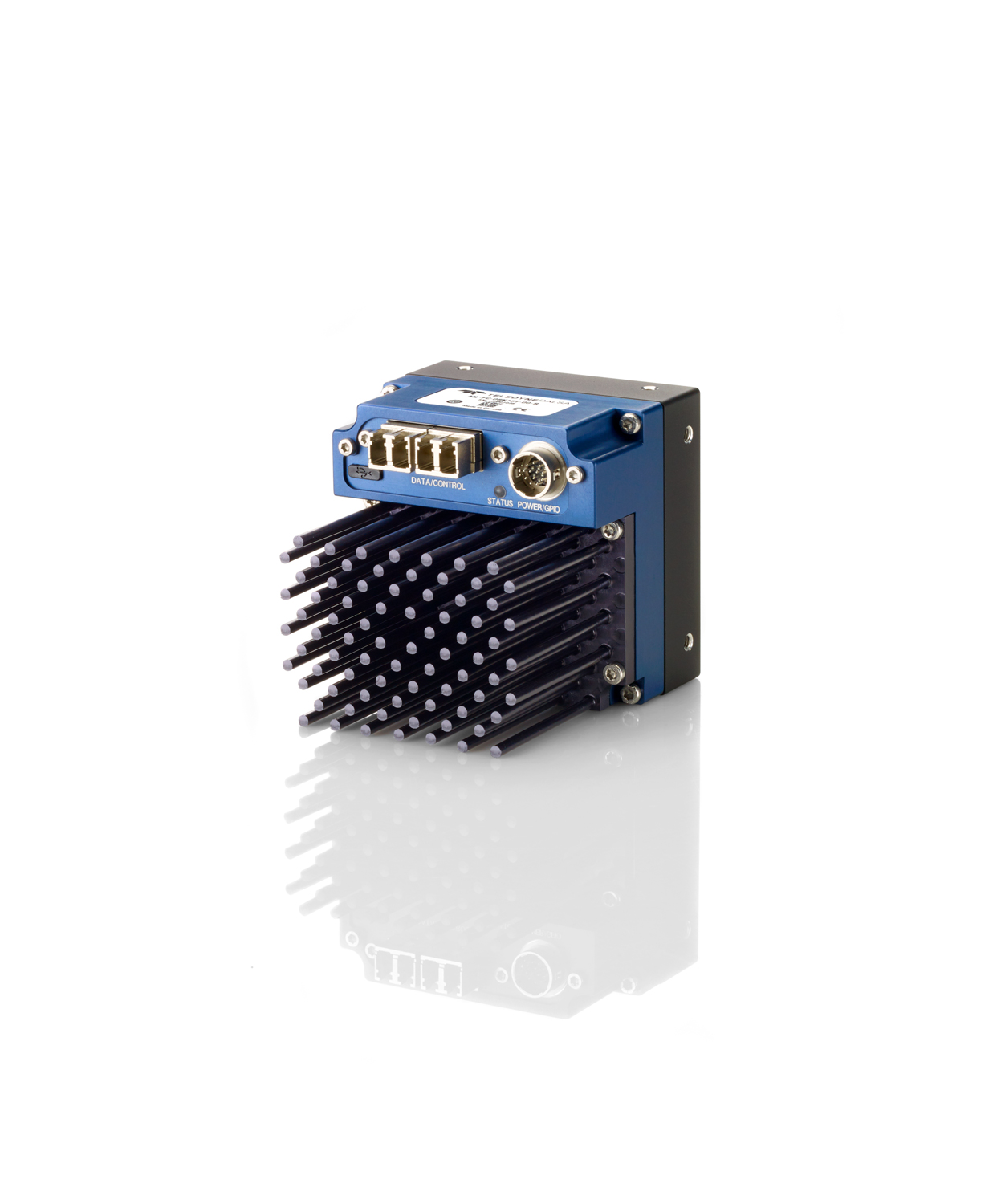

The Linea ML gives you better sensitivity, lower noise, and higher line rates up to 300 kHz via a CLHS interface. Linea ML is our first camera with native fiber optic connectors, which lets you take advantage of low-cost fiber for long cables and immunity to electrical interference.
Building on the ﬁeld proven capabilities of Teledyne DALSA’s Xtium™ family of frame grabbers, the Xtium™2 CLHS FX8 features fiber optic cabling for the CameraLink HS interface on the PCI Express™ Gen 3.0 platform. The Xtium2 CLHS FX8 boards feature CLHS X-protocol for high efficiency transmission, support up to four bidirectional SFP+ modules to delivery aggregate bandwidth of 4.0 GB/s and can reach cable lengths beyond 100 meters - all in a compact, half-length, single slot solution.
Reduce time and complexity required to capture both brightfield and darkfield images
With multiple strobed light sources, one monochrome camera can capture brightfield and darkfield images simultaneously in a single pass.
More Info: download our Sequential Mode app note or contact us to discuss
|Camera Type||Line Scan|
|Supported Interfaces||Camera Link HS, Fiber Optic|
|Spectrum Capability||Visible (400-700 nm), Near Infrared (700-1000 nm)|
|Model||Resolution||Spectrum||Interface||Pixel Size||Max Line Rate|
Linea ML Color 8k Fiber 280 kHz
Part number: ML-FC-08K10T
|8192 x 3||Color||Camera Link HS, Fiber Optic||5 µm||280 kHz|
Linea ML Mono 8k Fiber 280 kHz
Part number: ML-FM-08K30H-00-R
|8192 x 4||Mono||Camera Link HS, Fiber Optic||5 µm||280 kHz|
Linea ML 8k Multispectral
Part number: ML-FC-08k07N
|8192 x 4||Color, NIR||Camera Link HS, Fiber Optic||5 µm||70 kHz|
Linea ML Color 16k 300 kHz
Part number: ML-HC-16K10T
|16384 x 3||Color||Camera Link HS||5 µm||300 kHz|
Linea ML Mono 16k 300 kHz
Part number: ML-HM-16k30H-00-R
|16384 x 4||Mono||Camera Link HS||5 µm||300 kHz|
Linea ML Mono 16k Fiber 143 kHz
Part number: ML-FM-16K15A
|16384 x 1||Mono||Camera Link HS, Fiber Optic||5 µm||143 kHz|
Linea ML Color 16k 141 kHz
Part number: ML-FC-16K04T
|16384 x 3||Color||Camera Link HS, Fiber Optic||5 µm||141 kHz|
Linea ML Mono 16k Fiber 70 kHz
Part number: ML-FM-16k07A-00-R
|16384 x 1||Mono||Camera Link HS, Fiber Optic||5 µm||70 kHz|
Linea ML Color 16k 75 kHz
Part number: ML-FC-16K02T
|16384 x 3||Color||Camera Link HS, Fiber Optic||5 µm||75 kHz|
|Linea ML 8k Multispectral Datasheet|
|Linea ML Color 8k & 16k Datsheet|
|Linea ML Mono 8k & 16k Datasheet|
|Linea ML Color 8k & 16k User Manual|
|Linea ML Monochrome 8k & 16k User Manual|
|Linea ML Multispectral Camera User Manual|
|Application Note for Camera Cables and Long Distance Solutions|
|Application Note for Linea Multiline Camera Sequential Mode|
|Application Note: Linea ML Multi-Light Source Imaging|
|Linea ML/HS Material Composition Product Declaration|
|Linea ML & HS 16k 3D Model||STP|
|Linea ML & HS 16K SFP+ 3D Model||ZIP|
|Linea ML & HS 8k 3D Model||STP|
