Falcon4-CLHS Cameras

More Pixels. More Frames. More Power.

True High Performance

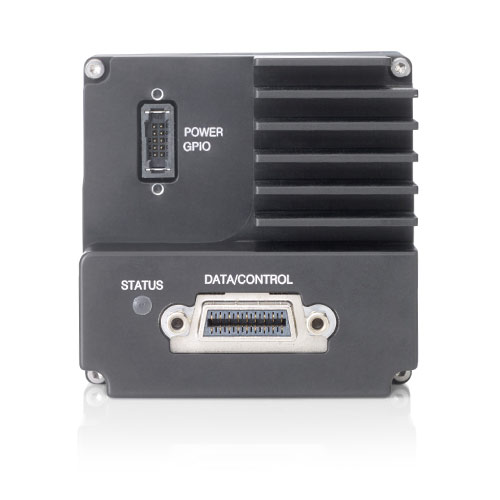

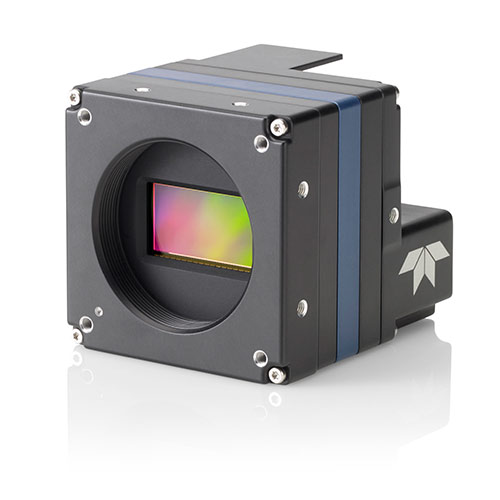

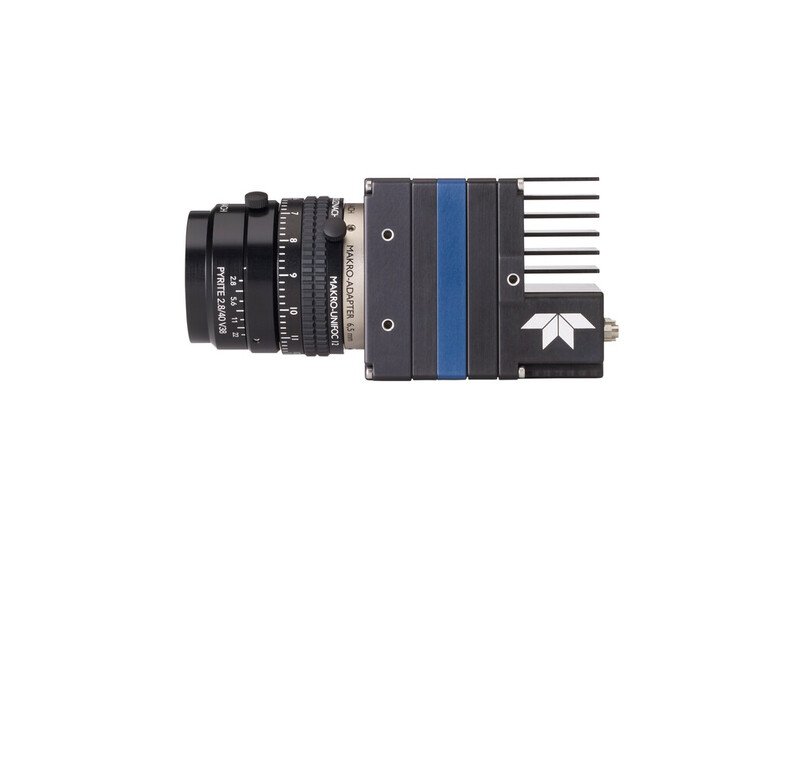

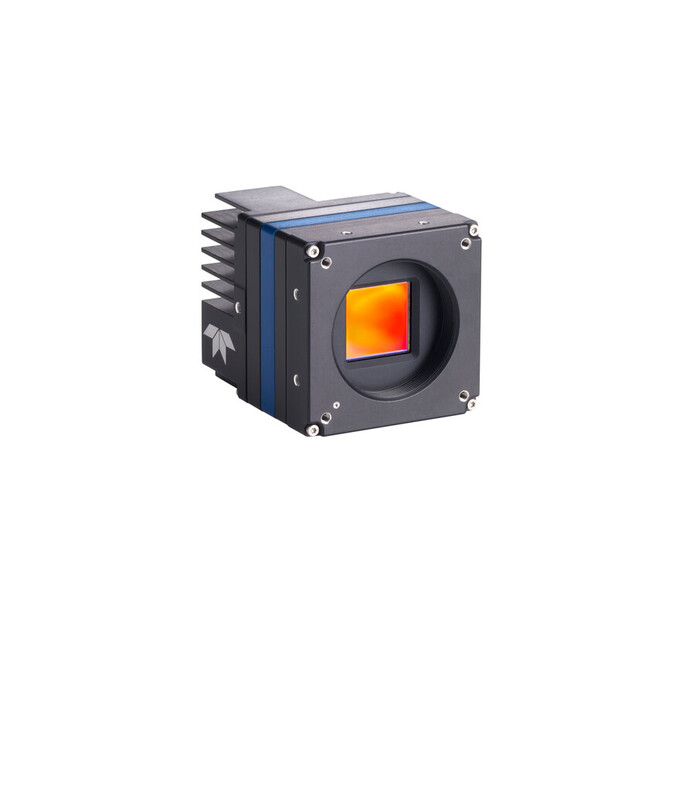

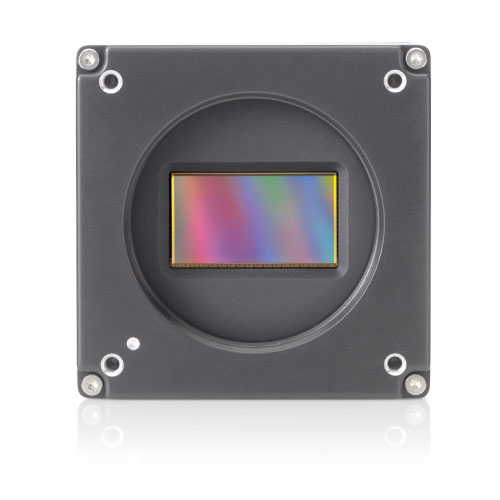

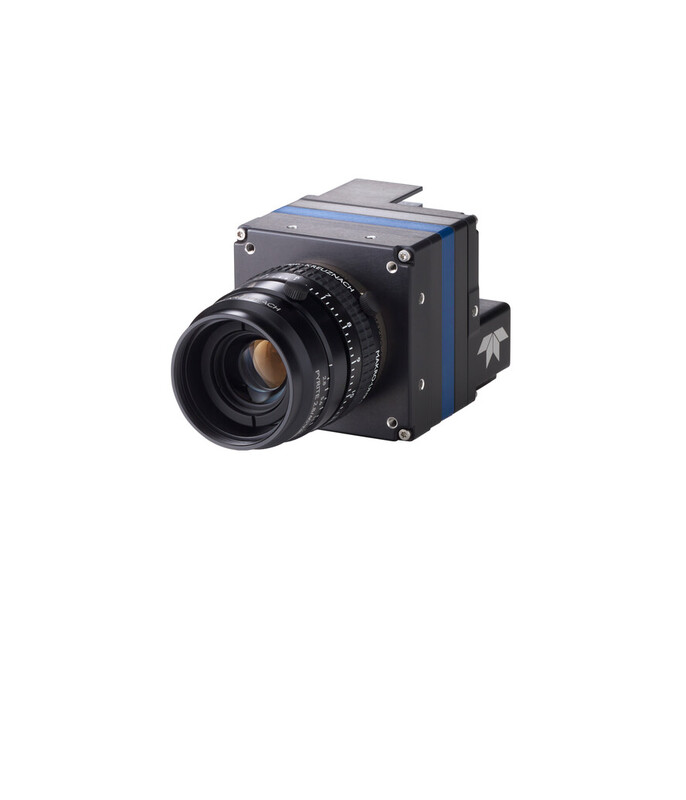

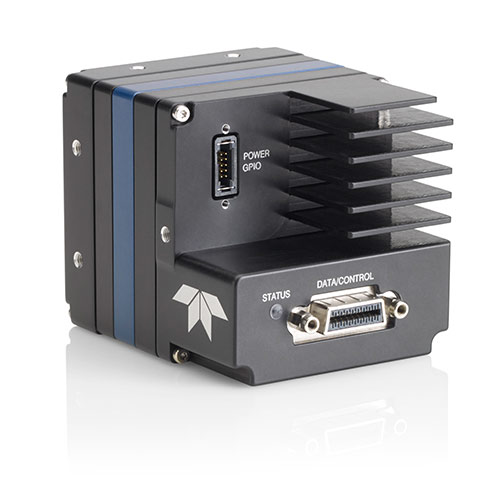

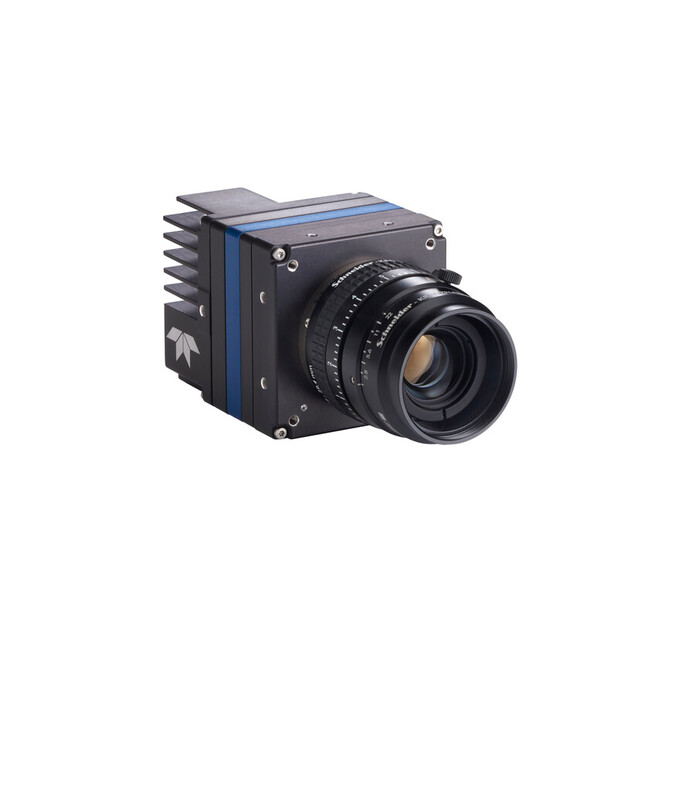

For true high-performance imaging, turn to the Falcon™4-CLHS camera series. Using Teledyne Imaging’s advanced CMOS architectures, the Falcon4-CLHS cameras offer unique, unprecedented capabilities for large area, high-resolution, high-speed imaging. Models range from 11.2 megapixels to 86 megapixels, with frame rates up to 609 fps.

Take more images. A lot more images!

When high-speed and high-resolution imaging are top priorities, the new range of Falcon4-CLHS cameras deliver. Available in multiple resolutions ranging from 11.2 megapixels to 86 megapixels, the high-speed 11M model can capture images at up to 600 fps, greatly increasing imaging system efficiency. While higher resolution models like 37M, 67M and 86M offer incredible resolution and throughput for a variety of challenging applications.

High frame rate applications

The Falcon4-CLHS M4480 / M4400’s large pixel width and very high frame rate offer a powerful solution to many imaging challenges:

Machine Vision
Robotics
Factory Automation Inspection
Motion Tracking and Analysis
Electronic Inspection
High Speed 3D imaging

How fast is 600 frames per second?

The Falcon4-CLHS M4480 / M4400 is a unique offering in the 2D area scan market with a frame rate that can reach up to 600 fps. The speed of these models can be difficult to visualize. What does 600 frames per second mean?

4480 x 2496, 6 µm pixels
APS-C format lenses
CLHS 4 or 7-Lanes - 10.3 Gb / sec. per Lane
Over 12 times faster frame rate than typical 4KHD cameras

Get the big picture. The really big picture

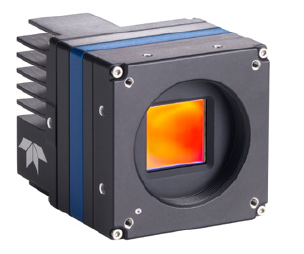

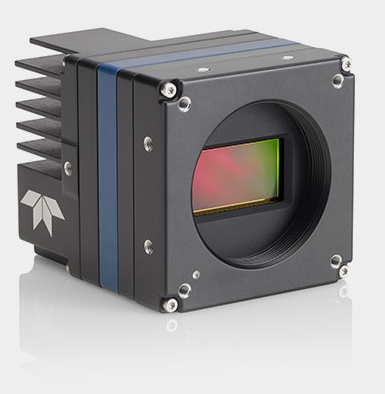

Teledyne DALSA’s Falcon4-CLHS range delivers ultra-high resolution and high-speed. With models like 86M and 67M, delivering up to 16 and 90 fps respectively, these cameras offer unique, unprecedented capabilities for large area, high-resolution, high-speed imaging. Available in monochrome, these cameras are also sensitive into the NIR spectrum

High resolution applications

The Falcon4-CLHS 86M's incredible resolution and throughput serve a variety of challenging applications:

Aerial Imaging
Reconnaissance
Security and Surveillance
3D Metrology
Flat Panel Display Inspection

How Big is 86 Megapixels?

The Falcon4-CLHS 86M's 86 megapixel resolution is truly spectacular and its 16 fps capability with global shutter makes it truly unique. In fact, its resolution is so big it's sometimes difficult to grasp. What does 86 megapixels mean?

10720 × 8064, 6 µm pixels
64 × 48 mm active area
Medium format lenses
More pixels than 40 HD Screens
129 MB/frame (12 bit)
2.1 GB/s @ 16 fps (12 bit)

Family Specifications

Camera Type	Area Scan
Sensor Technology	CMOS
Supported Interfaces	Camera Link HS
Spectrum Capability	Visible (400-700 nm), Near Infrared (700-1000 nm)
Features	T2IR

Camera Models

Click column headings to sort

Model	Resolution	Spectrum	Interface	Pixel Size	Max Frame Rate
Falcon4-CLHS M4480 Part number: FA-HM00-M4485 Total Pixels ~ 11.2 MP Interface Speed 72.1 Gbps Bit Depth 8 bit, 10 bit Operating Temperature -20—65 °C Supported Lens Options M42 x 1 mm Shutter Type Global Shutter Power Requirement 10 V to 30 V DC Synchronisation Software trigger, free-run, & hardware trigger Exposure Control INTERNAL: Programmable via the camera API, EXTERNAL: Based on Trigger Width General Purpose I/O 2 input / 3 Output, Opto-coupled Dimensions (W x H x L) 59 x 59 x 70 mm Mass 320 g	4480 x 2496 Teledyne e2v Lince 11 MP	Mono	Camera Link HS	6 µm	600 fps
Falcon4-CLHS M4400 Part number: FA-HM01-M4405 Total Pixels ~ 11.2 MP Interface Speed 41.2 Gbps Bit Depth 8 bit, 10 bit Operating Temperature -20—65 °C Supported Lens Options M42 x 1 mm Shutter Type Global Shutter Power Requirement 10 V to 30 V DC Synchronisation Software trigger, free-run, & hardware trigger Exposure Control INTERNAL: Programmable via the camera API, EXTERNAL: Based on Trigger Width General Purpose I/O 2 input / 3 Output, Opto-coupled Dimensions (W x H x L) 59 x 59 x 70 mm Mass 320 g	4480 x 2496 Teledyne e2v Lince 11 MP	Mono	Camera Link HS	6 µm	330 fps

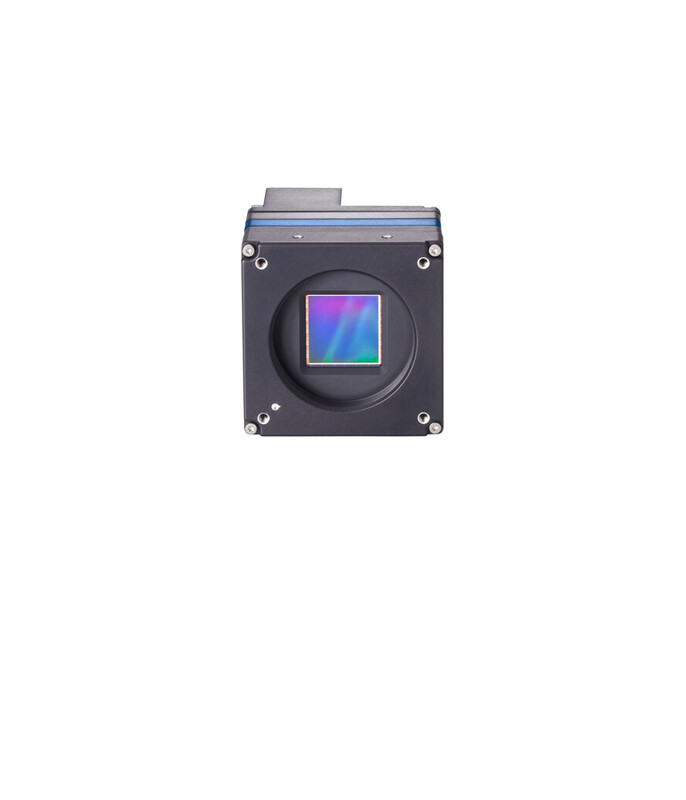

Falcon4-CLHS M6200 Part number: FA-HM10-M6205 Total Pixels ~ 37.7 MP Interface Speed 72.1 Gbps Bit Depth 8 bit, 10 bit Operating Temperature -20—65 °C Supported Lens Options M42 x 1 mm Shutter Type Global Shutter Power Requirement 10 V to 30 V DC Synchronisation Software trigger, Free-run & Hardware trigger Exposure Control INTERNAL: Programmable via the camera API, EXTERNAL: Based on Trigger Width General Purpose I/O 2 input / 3 Output, Opto-coupled Dimensions (W x H x L) 59 x 59 x 70 mm Mass 320 g	6144 x 6144 Teledyne e2v Emerald 37M	Mono	Camera Link HS	2.5 µm	120 fps
Falcon4-CLHS M8200 Part number: FA-HM10-M8205 Total Pixels ~ 67.1 MP Interface Speed 72.1 Gbps Bit Depth 8 bit, 10 bit Operating Temperature -20—65 °C Supported Lens Options M42 x 1 mm Shutter Type Global Shutter Power Requirement 10 V to 30 V DC Synchronisation Software trigger, free-run, & hardware trigger Exposure Control INTERNAL: Programmable via the camera API, EXTERNAL: Based on Trigger Width General Purpose I/O 2 input / 4 Output, Opto-coupled Dimensions (W x H x L) 59 x 59 x 70 mm Mass 320 g	8192 x 8192 Teledyne e2v Emerald 67M	Mono	Camera Link HS	2.5 µm	90 fps
Falcon4-CLHS 86M Part number: FA-S0-86M16 Total Pixels ~ 86.4 MP Interface Speed 21.875 Gbps Bit Depth 8 bit, 12 bit, 16 bit Operating Temperature -20—65 °C Supported Lens Options M95 x 1 mm Shutter Type Global Shutter Power Requirement 12 V to 24 V DC Synchronisation Software trigger, free-run, & hardware trigger Exposure Control INTERNAL: Programmable via the camera API, EXTERNAL: Based on Trigger Width General Purpose I/O 2 input / 2 Output, Differential Dimensions (W x H x L) 100 x 100 x 70.5 mm Mass 1980 g	10720 x 8064 Teledyne DALSA IA-M1-0086M 86 MP	Mono	Camera Link HS	6 µm	16 fps
